Speedometer Driven Gear and Vehicle Speed Sensor

Inspect
- Speedometer driven gear and driven gear case O-ring for damage; replace as necessary.
Vehicle speed sensor O-ring for damage; replace as necessary.

INSTALL OR CONNECT

^ Tool Required:
- J 36850 Transjel Transmission Assembly Lubricant

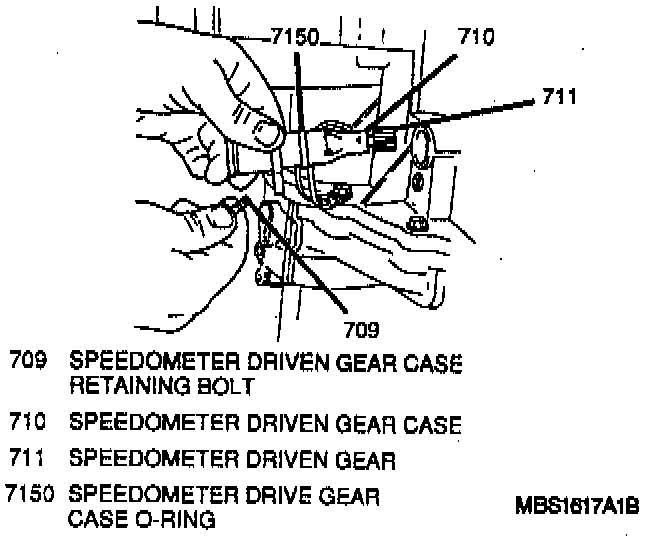

1. Speedometer driven gear case into transaxle case. Lubricate driven gear case O-ring with J 36850.
2. Speedometer driven gear case retaining bolt.

Tighten
- Speedometer driven gear case retaining bolt to 8 N.m (71 lb. in.).

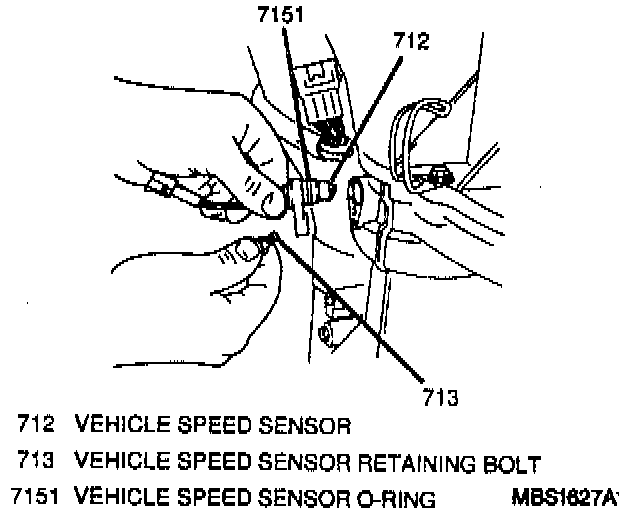

3. Vehicle speed sensor into transaxle case.
4. Vehicle speed sensor retaining bolt.

Tighten
- Vehicle speed sensor retaining bolt to 9 N.m (80 lb. in.).
