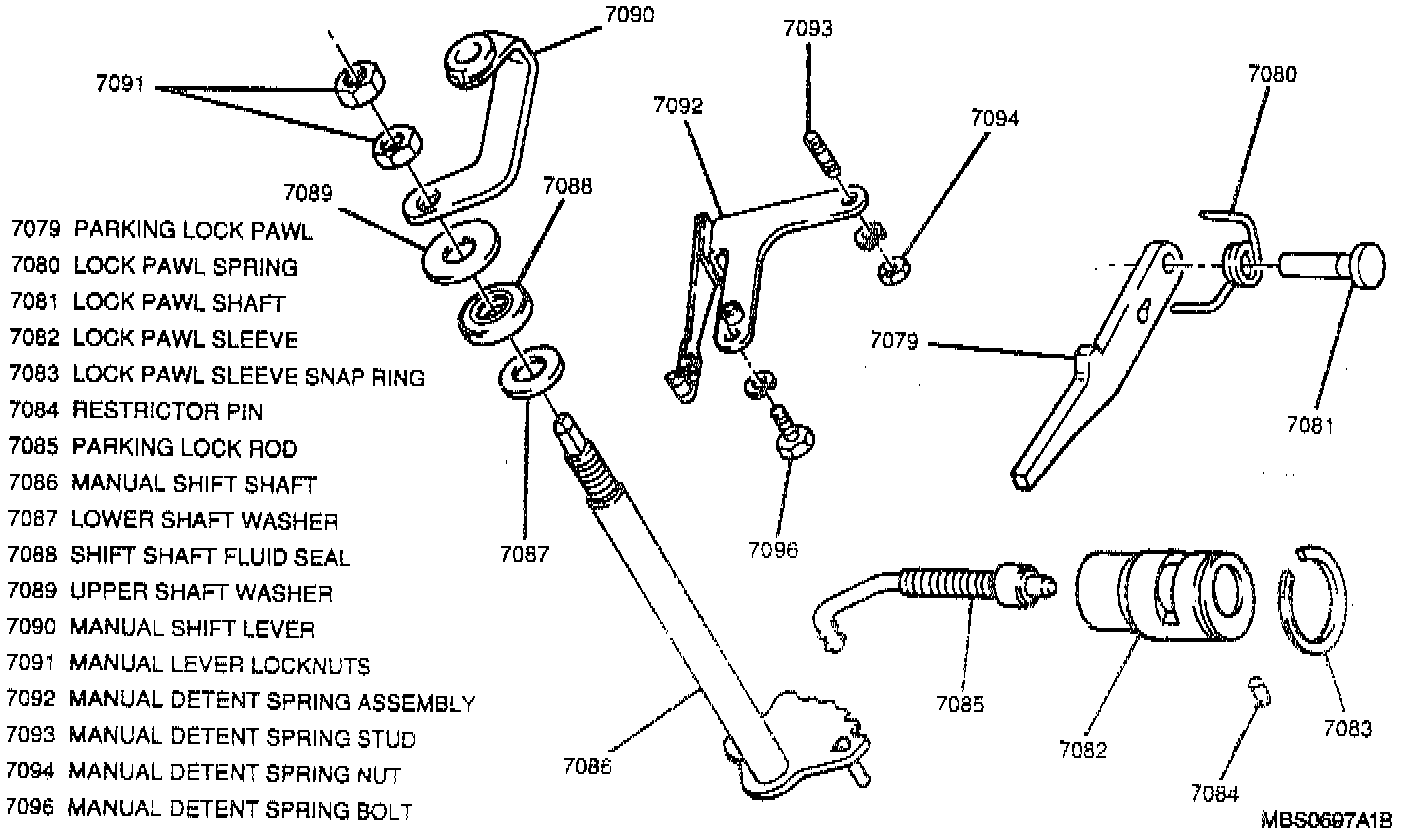

Parking Lock Pawl and Manual Linkage

Inspect
- Manual shift shaft seal at top of transaxle case and replace as necessary.





INSTALL OR CONNECT
1. Manual shift shaft into transaxle case, use caution not to damage the manual shift shaft seal.

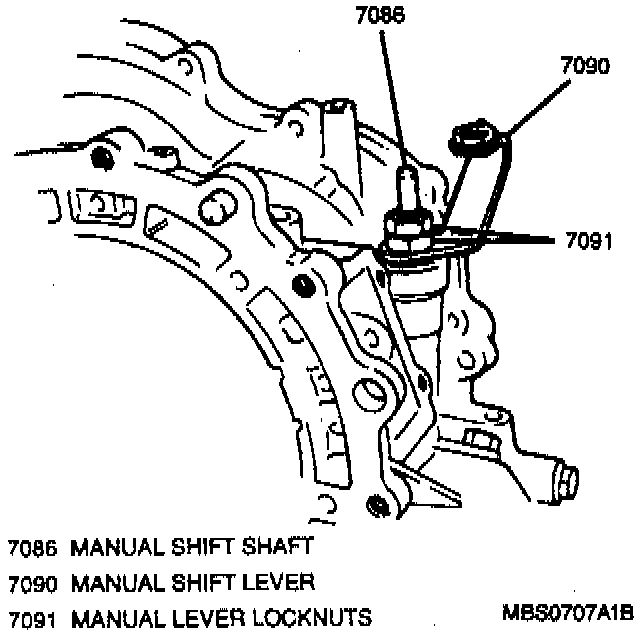

2. Shift shaft upper washer and manual shift lever to manual shift shaft.





3. Manual lever locknuts.

Tighten
- Lower manual shift lover nut to 33 Nm (24 lb. ft.).
- Upper manual shift lever nut to 33 N.m (24 lb. ft.).

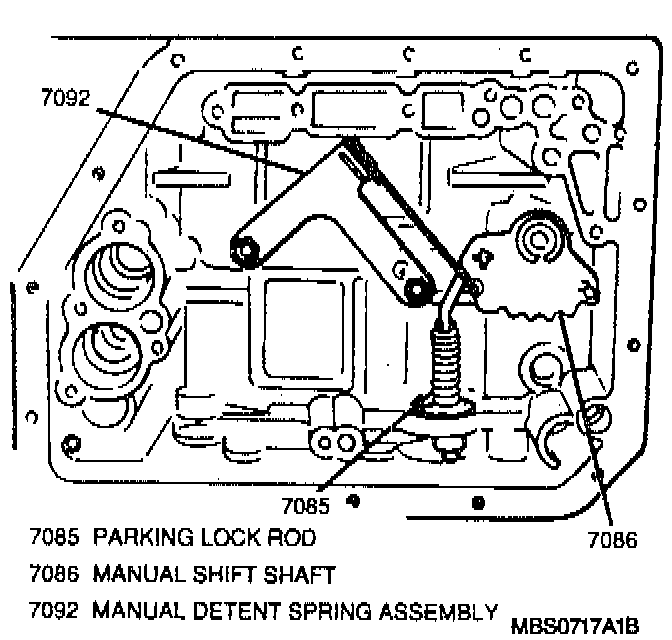

4. Manual detent spring assembly.

Tighten
- Manual detent spring assembly retaining bolt to 12 N.m (106 lb. in.).
- Manual detent spring assembly nut to 12 N.m (106 lb. in.).

Inspect
- Manual shift shaft for smooth rotation.

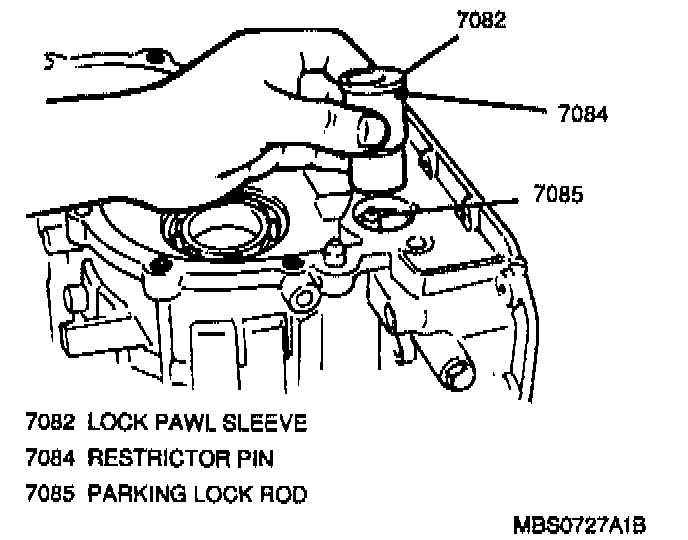

5. Restrictor pin and snap ring to parking lock pail sleeve.





6. Parking lock pawl sleeve into transaxle case.
7. Move manual shift lever to any position lither than park.





8. Parking lock pawl return spring and lock pawl shaft onto transaxle case.

Inspect
- Parking lock pawl for smooth operation by moving manual shift lever in and out at park.
