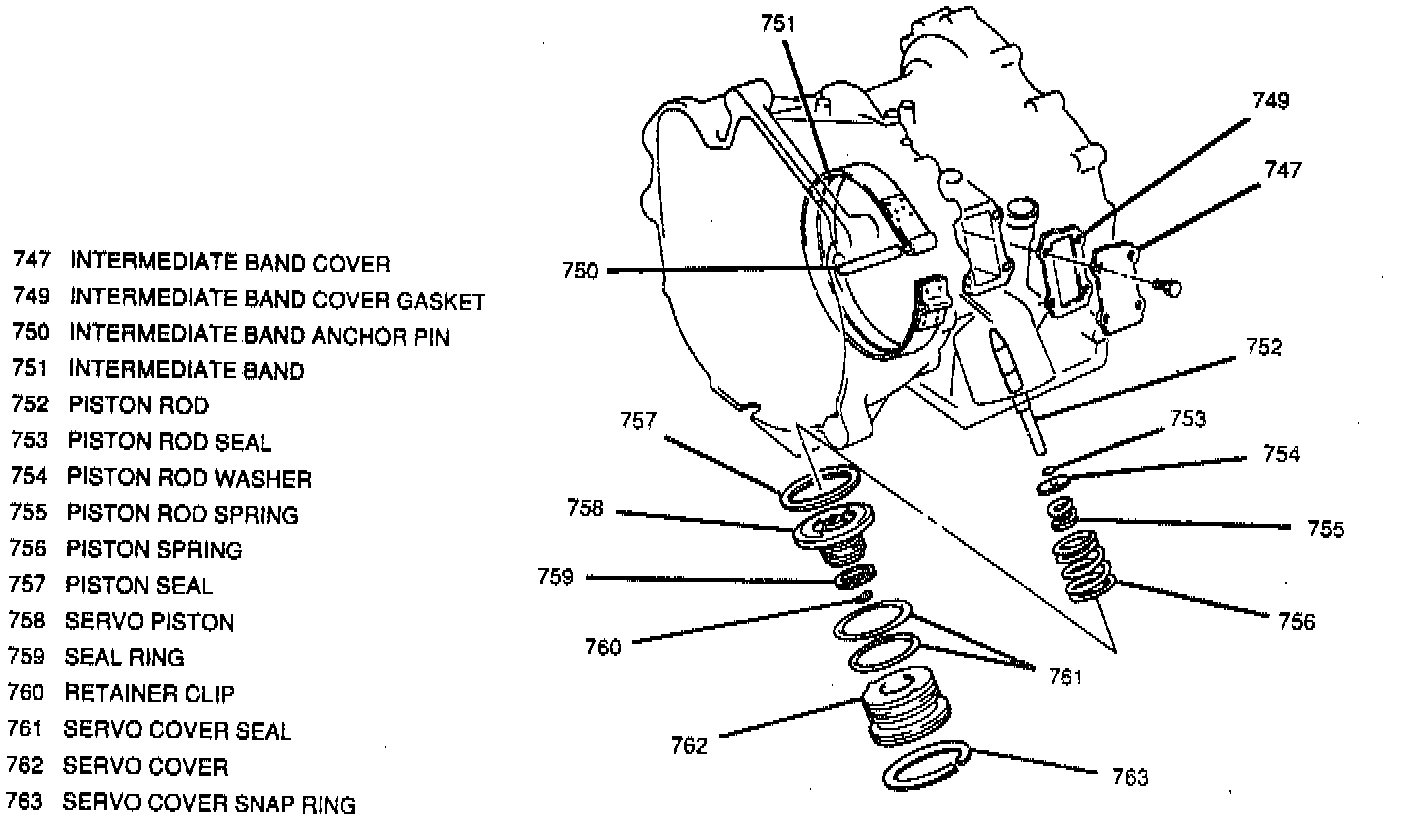

Intermediate Band and Servo

INSPECT
- Intermediate band for cracks or damage.
- Intermediate servo ease bore for pitting or sears or sharp edges.

NOTICE: If the intermediate band appears excessively worn or damaged and replacement is necessary, the new brake band should be soaked in Dexron (R) III automatic transmission fluid GM P/N 12341643, or equivalent, for two hours prior to installation. This causes the band material to permeate with fluid which will prevent band overheating on first time application.

INSTALL OR CONNECT

^ Tools Required:
- J 35534 Piston Cover Depressor
- J 36850 Transjel Transmission Assembly Lubricant

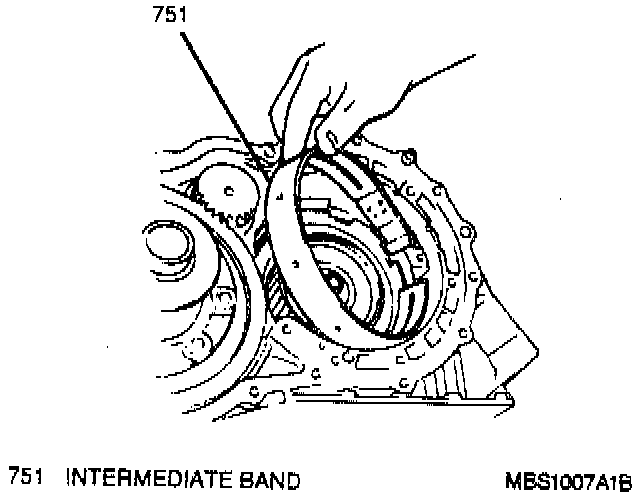

1. Intermediate band into transaxle case.

Important
- Use caution not to over-bend or overextend band or cracking and damage may result.
- Band must be installed in the correct direction with the intermediate band anchor pin strap above the servo piston rod apply strap.

Inspect
- Piston rod seal for cuts or damage and replace as necessary.

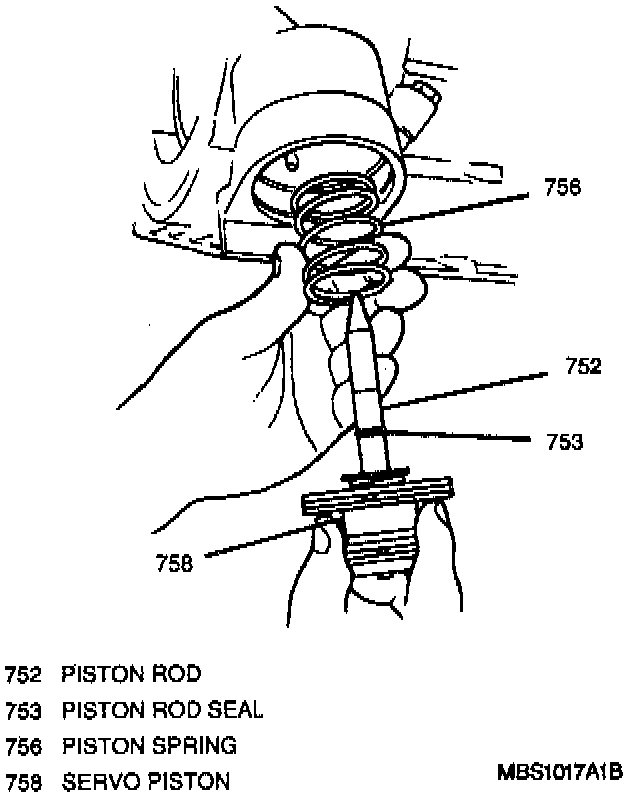

2. Piston rod, piston rod washer spring into servo piston.

Inspect
- Servo piston seal rings for cuts or damage and replace as necessary.
- Servo piston for cracks or porosity.





3. Intermediate servo piston.

Important
- Lubricate piston and seals with J 36850. Make sure piston rod is engaged in the intermediate band.

Inspect
- Servo cover seals for cuts or damage and replace as necessary.
- Servo cover for cracks or porosity.

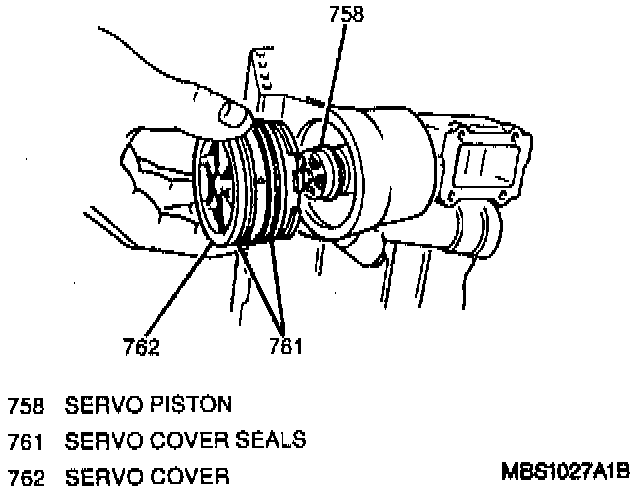

4. Servo cover. Lubricate servo cover and seals with J 36850.
5. Install a J 35534 and compress servo cover until the servo cover snap ring can be fitted.
6. Servo cover snap ring.
7. Remove the J 35534.
