Home >> Geo >> 1996 >> Metro L3-061 1.0L VIN 6 TBI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> Component Repair and Transaxle Reassembly >> Locations and Positions of Bearings and Races

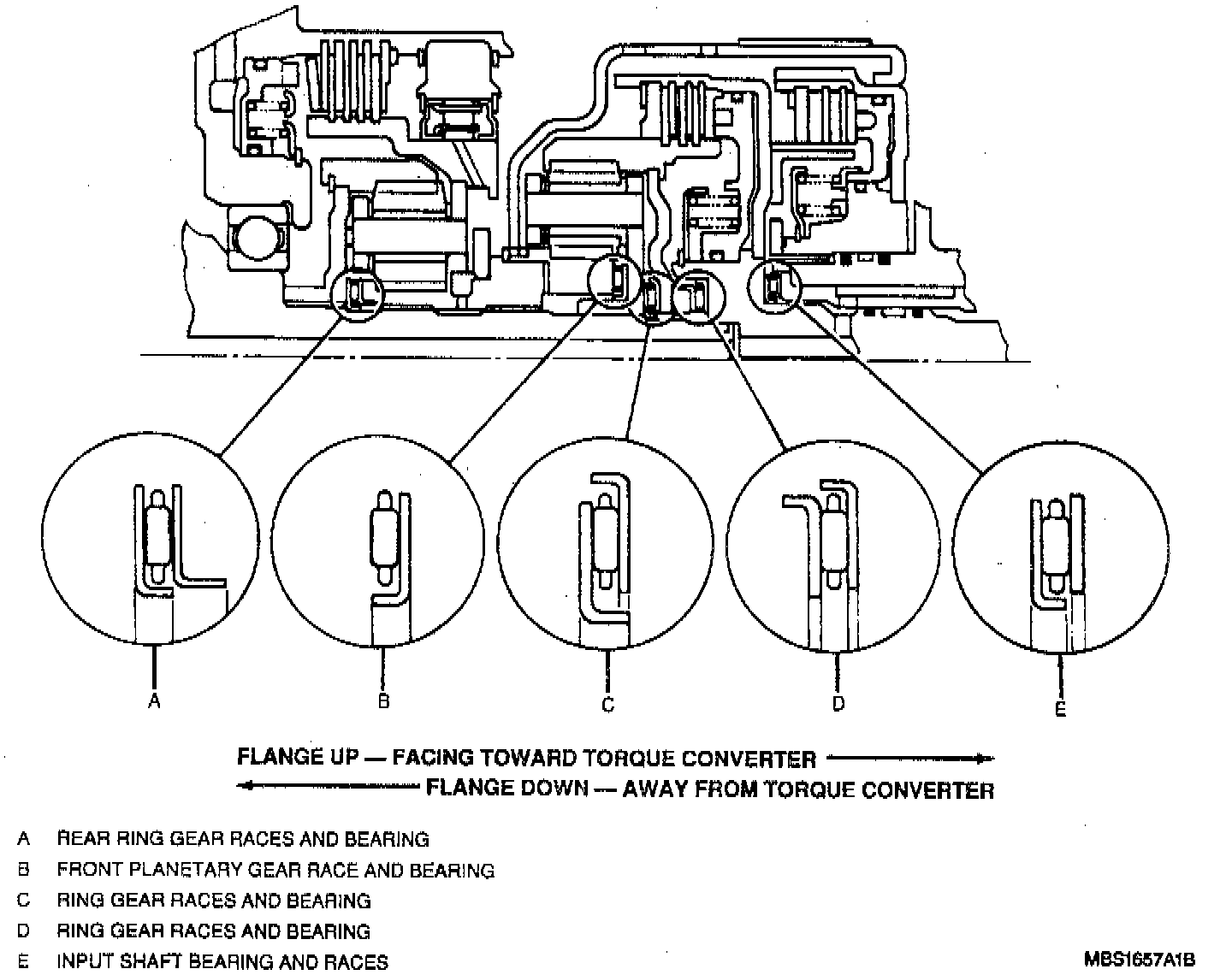

Locations and Positions of Bearings and Races
