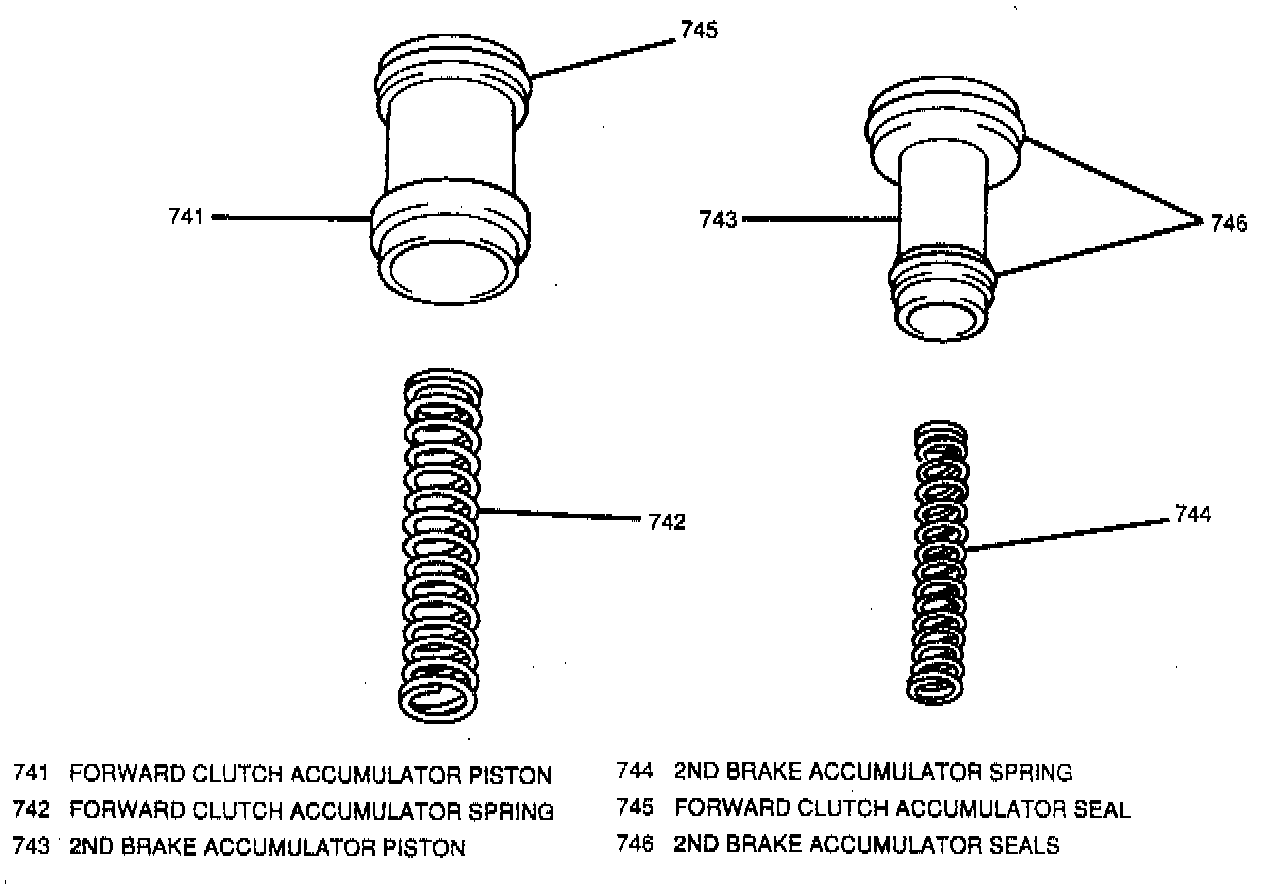

Forward Clutch and 2ND Brake Accumulators

Inspect
- Accumulator pistons for porosity, cracks or other damage.
- Accumulator case bores for pitting, scars or other damage.

INSTALL OR CONNECT

^ Tool Required:
- J 36850 Transjel Transmission Assembly Lubricant

Important
- Lubricate all parts with J 36850.





1. New accumulator seals on pistons.
2. Forward clutch and 2nd brake accumulator springs in their respective pistons.

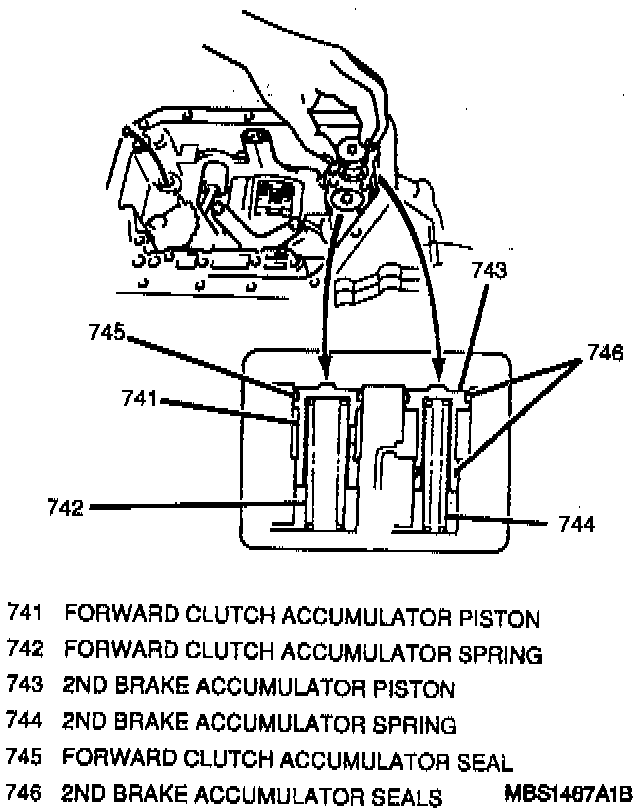

3. Forward clutch and 2nd brake accumulator pistons in their respective case bores.
