Home >> Geo >> 1996 >> Metro L3-061 1.0L VIN 6 TBI >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Charts >> Chart #4 Charge Indicator Does Not Light

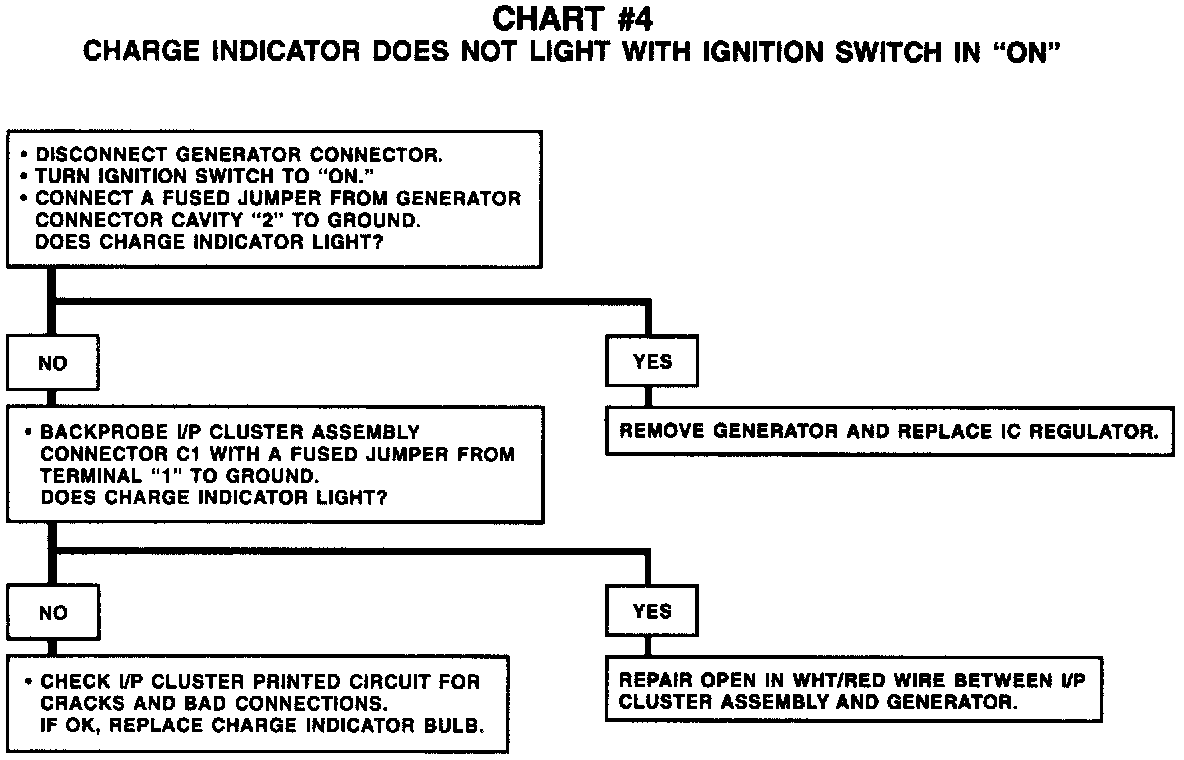

Chart #4 Charge Indicator Does Not Light

Chart #4 Charge Indicator Does Not Light With Ignition Switch In ON:
