Chart #2 Engine Does Not Crank - Manual Transaxle Only
Chart #2 Engine Does Not Crank - Manual Transaxle Only

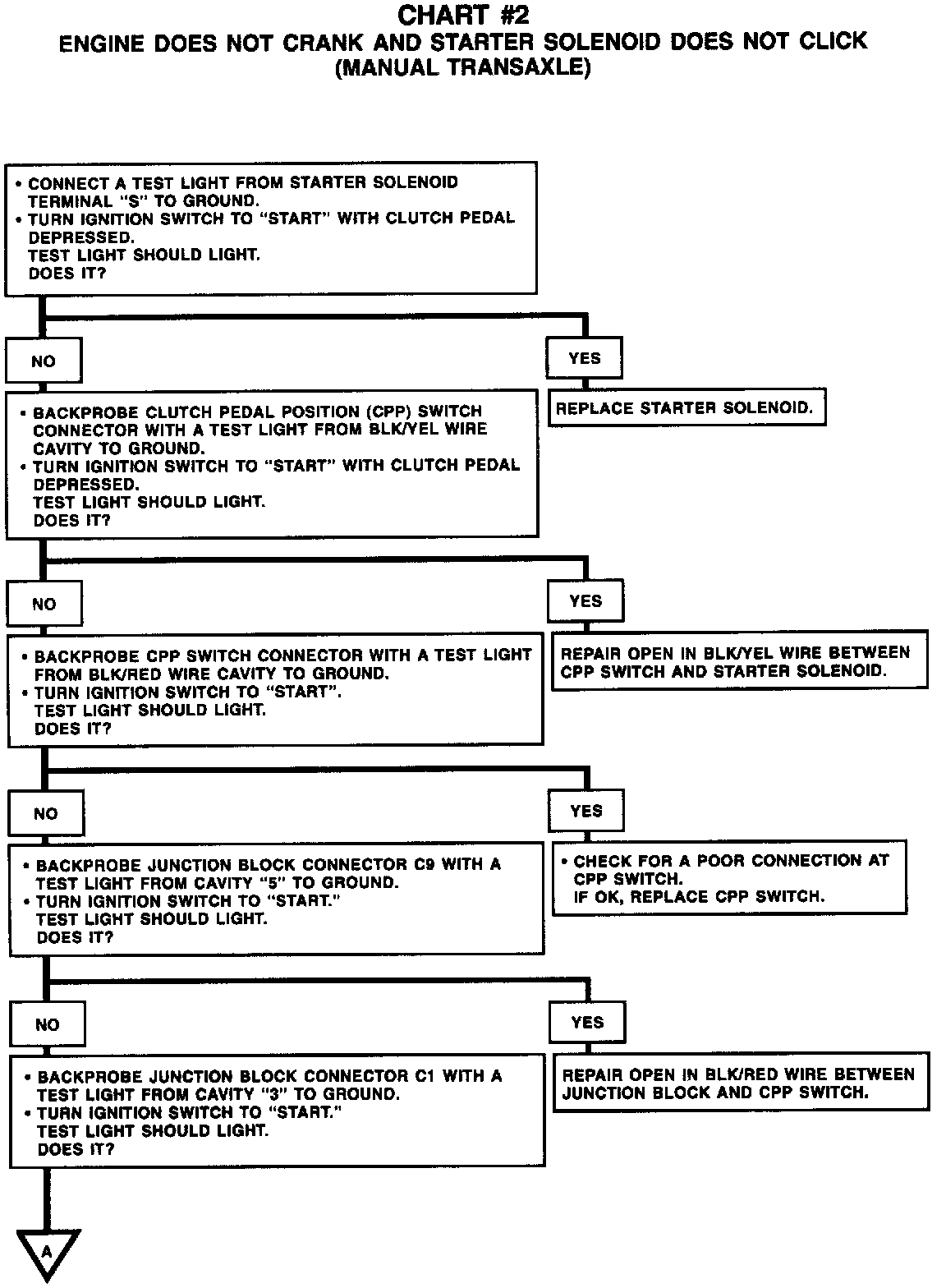

Chart #2 Engine Does Not Crank And Starter Solenoid Does Not Click (Part 1 Of 2):

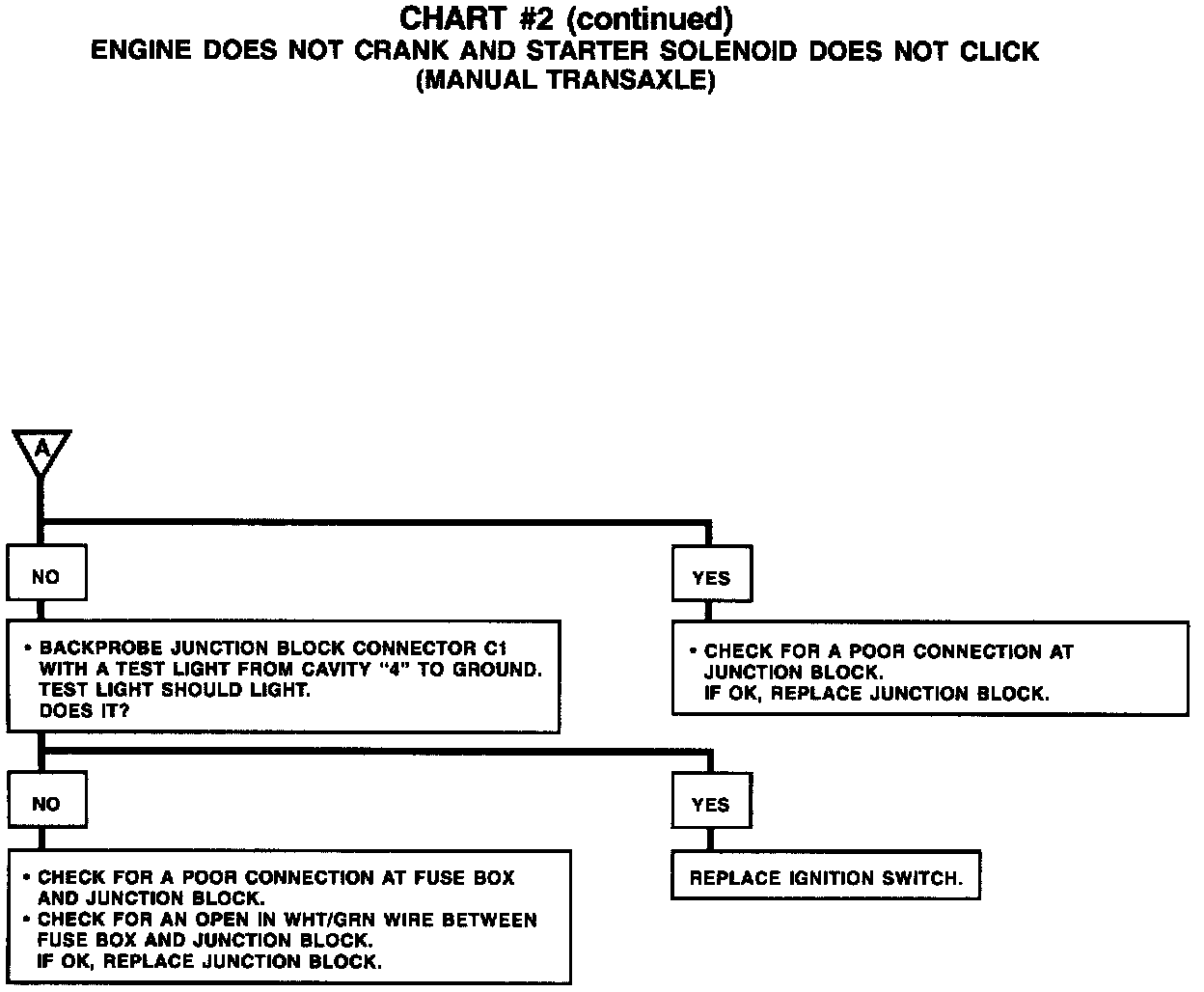

Chart #2 Engine Does Not Crank And Starter Solenoid Does Not Click (Part 2 Of 2):
