Chart #1 Engine Does Not Crank - Automatic Transaxle Only
Chart #1 Engine Does Not Crank - Automatic Transaxle Only

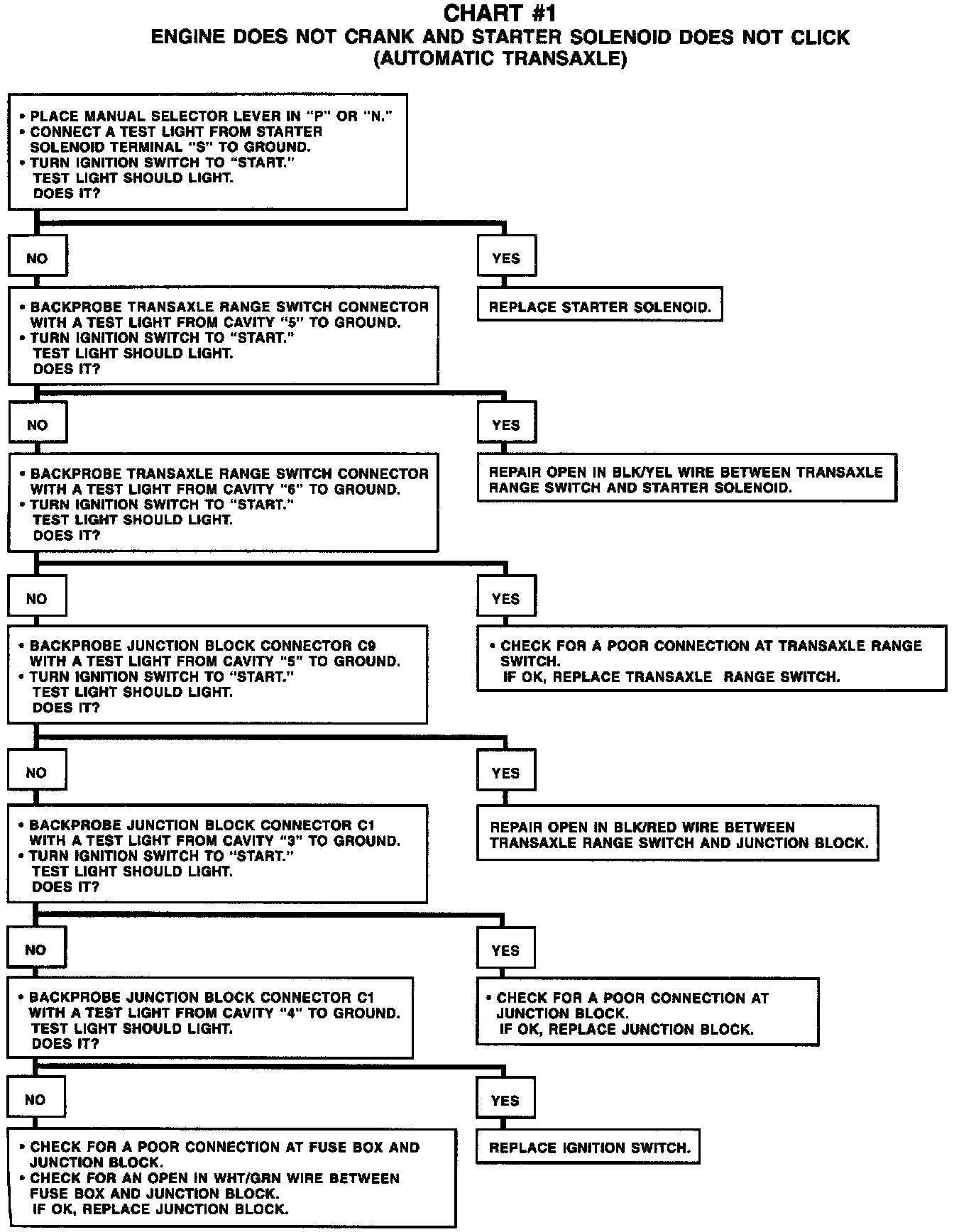

Chart #1 Engine Does Not Crank And Starter Solenoid Does Not Click:
