Home >> Geo >> 1996 >> Metro L3-061 1.0L VIN 6 TBI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> WIP Fuse and Back Fuse

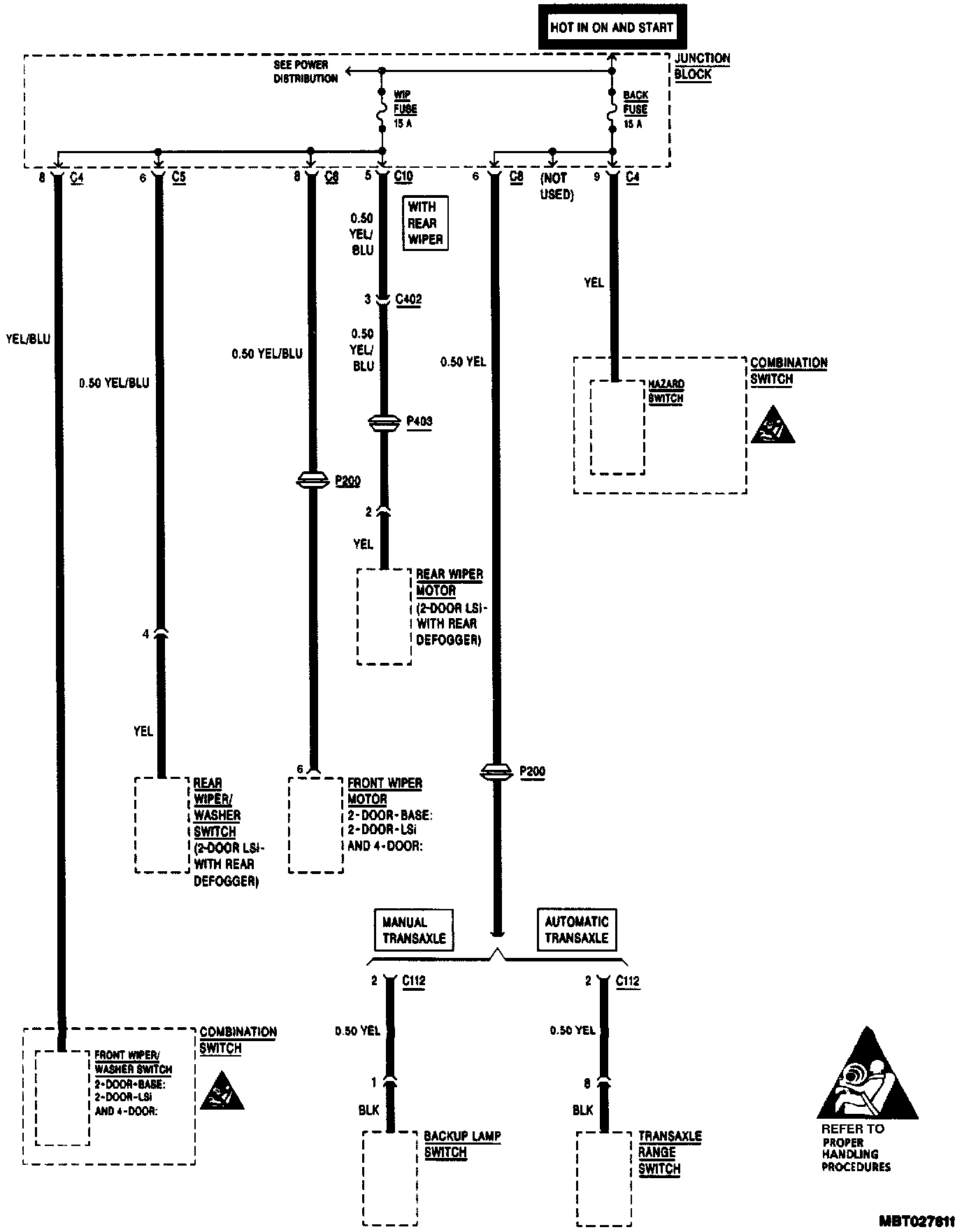

WIP Fuse and Back Fuse

WIP Fuse And Back Fuse:
