Home >> Geo >> 1996 >> Metro L3-061 1.0L VIN 6 TBI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> Tail Fuse and Stop Fuse

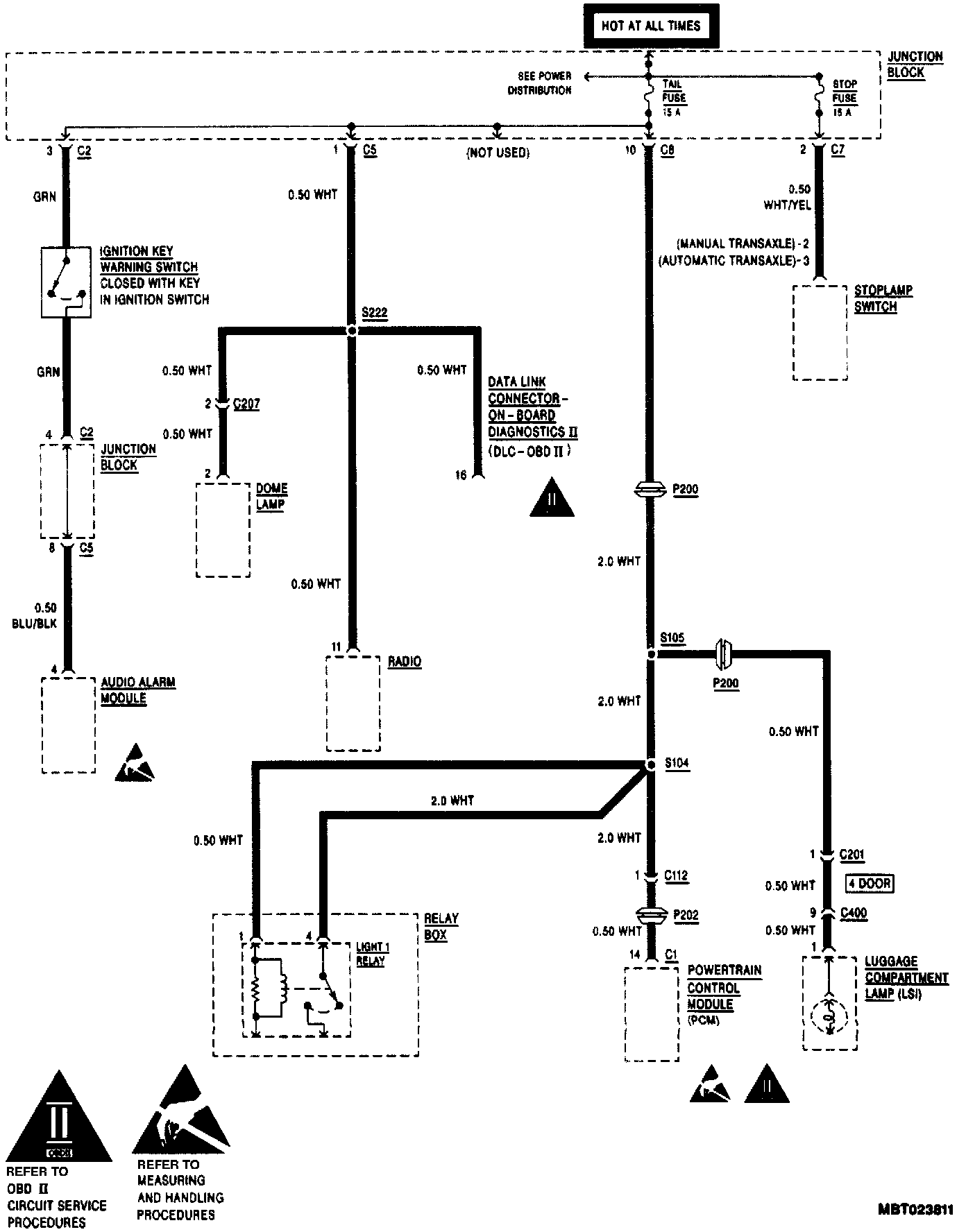

Tail Fuse and Stop Fuse

Tail Fuse And Stop Fuse:
