Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G103
G103

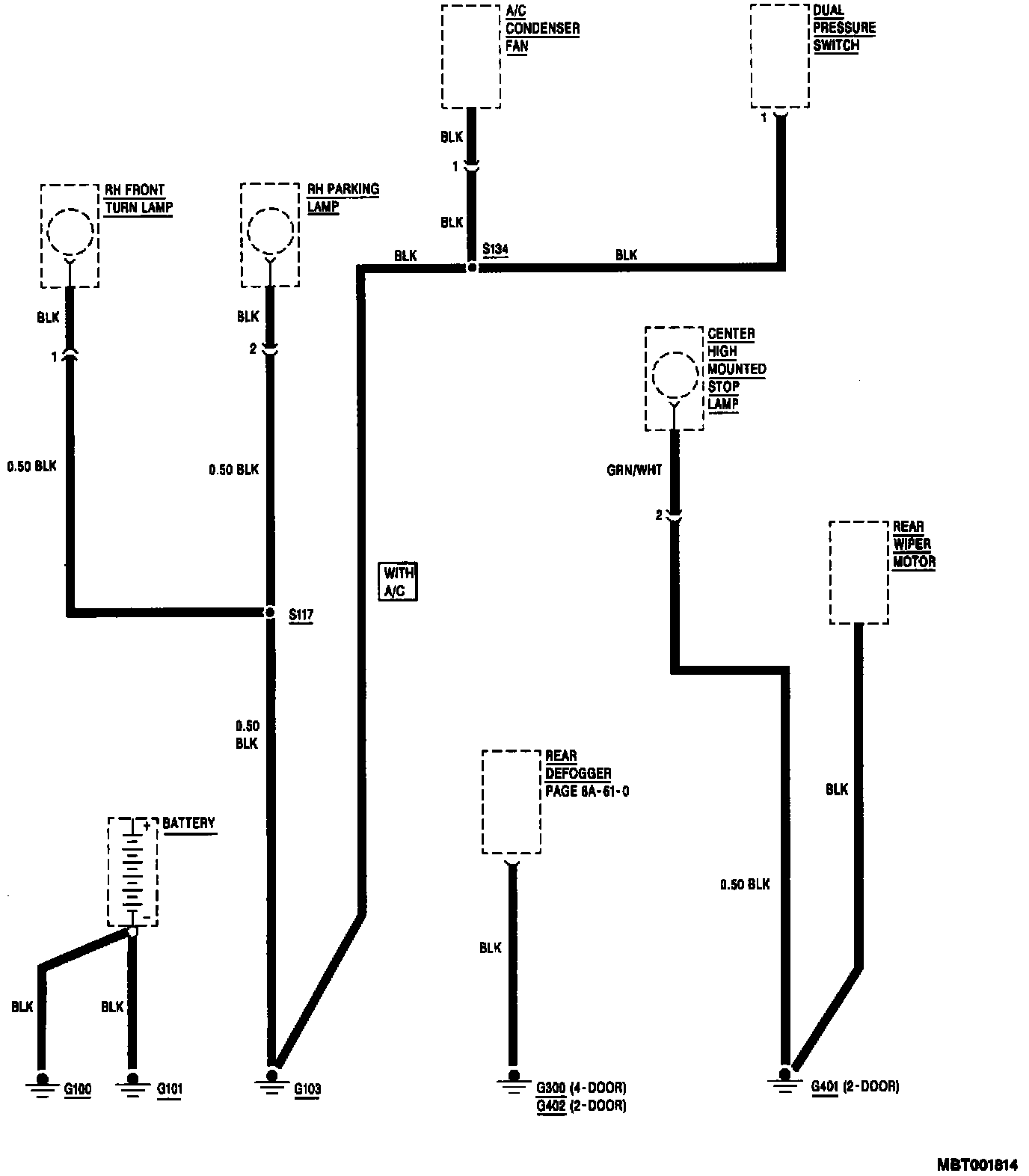

G100, G101, G103 (4-Door), G401 (2-Door) And G402 (2-Door):
