Relay Box: Locations

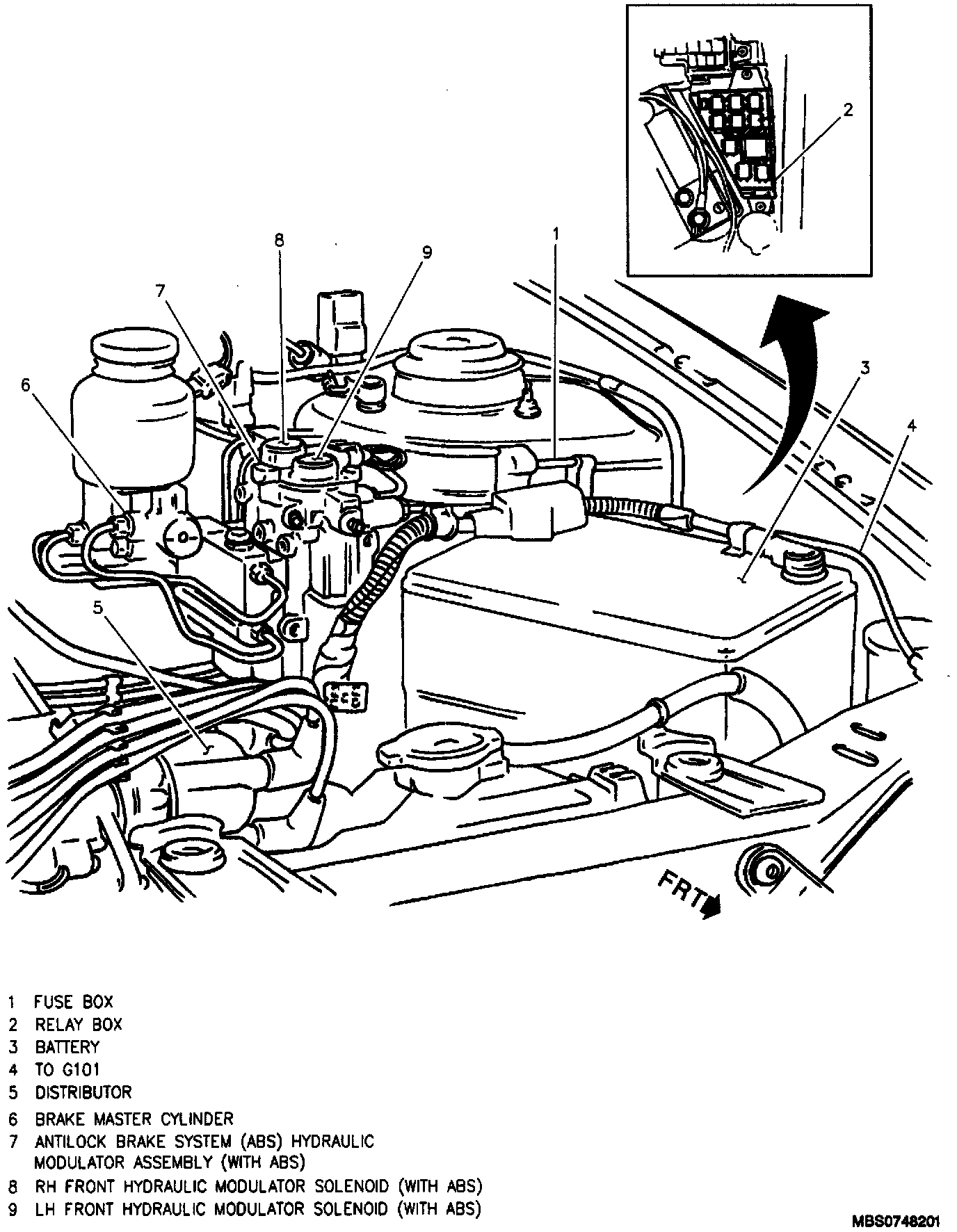

RELAY BOX
LH Engine Compartment:
The Relay Box is located in the LH front of Engine Compartment, near battery.
