Accelerator Pedal: Service and Repair

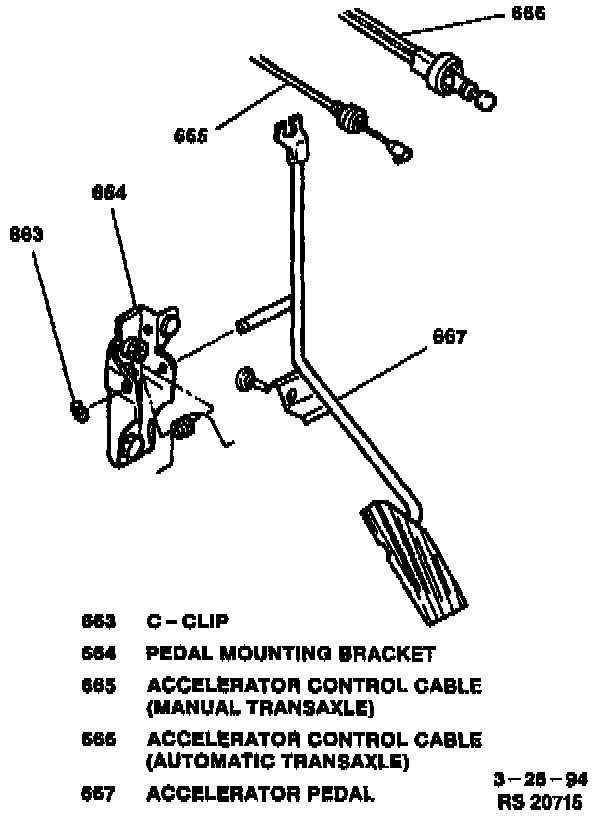

Accelerator Pedal:

REMOVE OR DISCONNECT
1. Accelerator control cable from accelerator pedal.
2. C-clip and accelerator pedal from mounting bracket.

INSTALL OR CONNECT
1. Accelerator pedal to mounting bracket; secure with C-clip.

^ Be sure to install spring while sliding accelerator pedal into mounting bracket.

2. Accelerator control cable to accelerator pedal.
