EGR Valve: Service and Repair

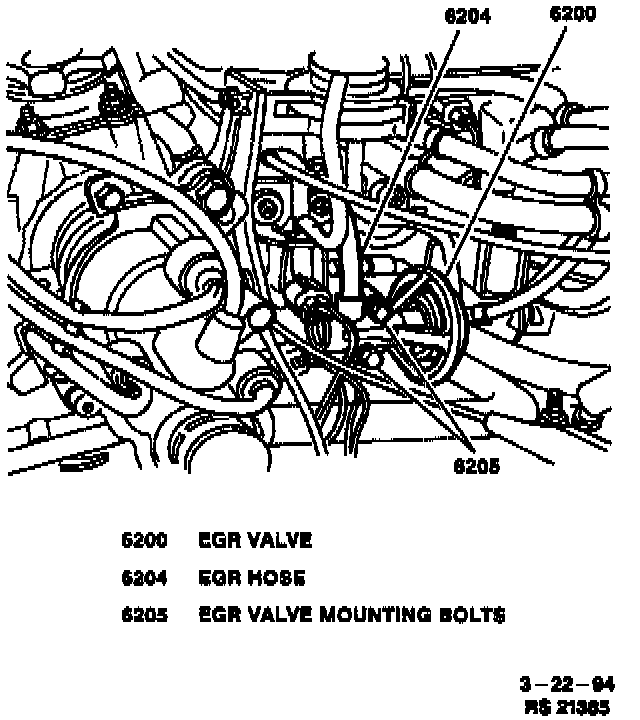

Exhaust Gas Recirculation (EGR) Valve:

REMOVE OR DISCONNECT
1. Negative (-) battery cable.
2. Two vacuum hoses from Exhaust Gas Recirculation (EGR) valve.
3. Two bolts, gasket and EGR valve from intake manifold.

INSTALL OR CONNECT
1. EGR valve and gasket to intake manifold; secure with two bolts. Tighten EGR valve bolts to 20 Nm (15 lb ft).
2. Two vacuum hoses to EGR valve.
3. Negative (-) battery cable. Tighten Negative (-) battery cable-to-negative battery terminal.
