Geo
>>
1996
>>
Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
- Symptom Diagnostic Charts
>>

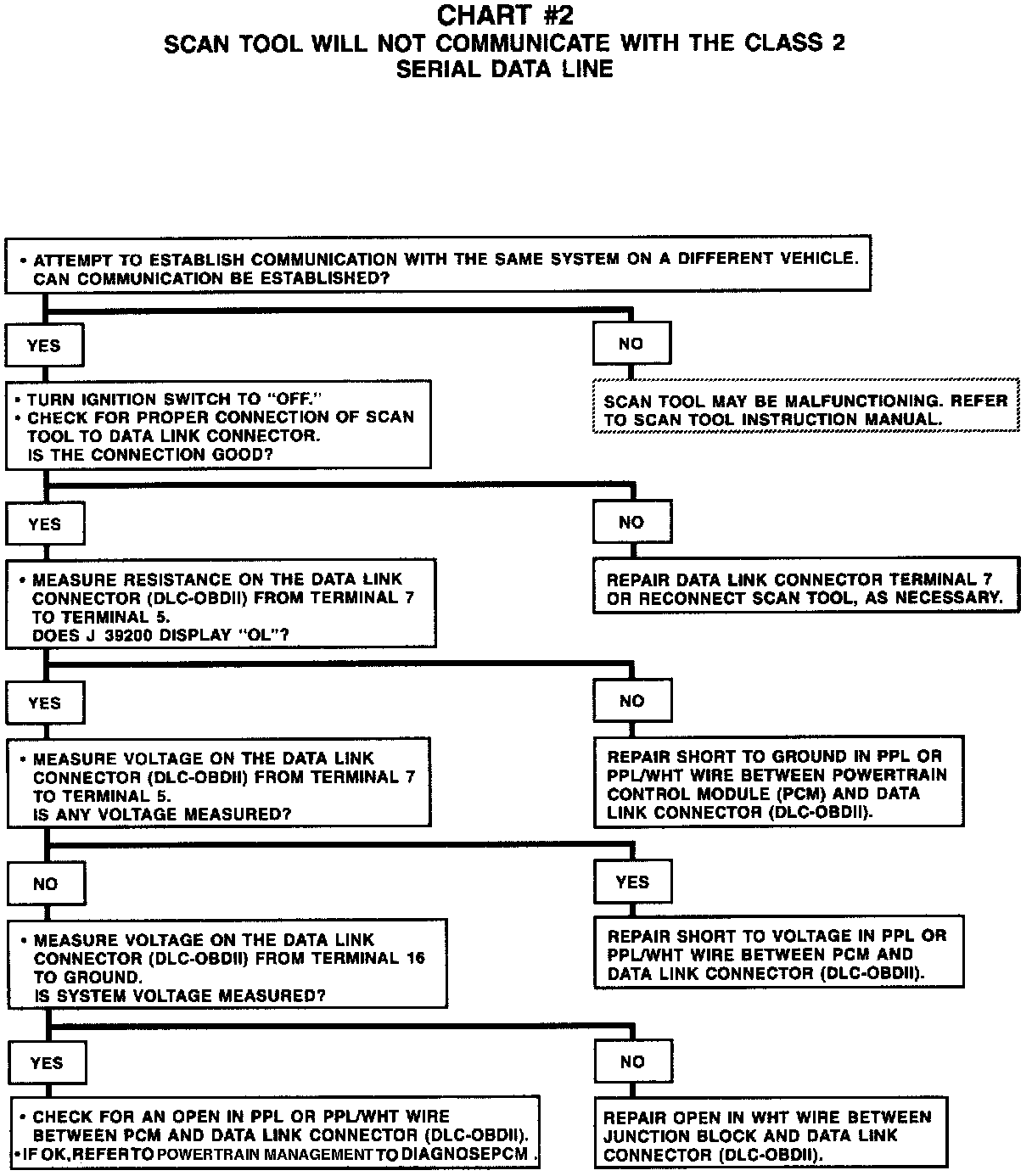

Chart #2 Scan Tool Will Not Communicate
Chart #2 Scan Tool Will Not Communicate
Chart #2 Scan Tool Will Not Communicate With The Class 2 Serial Data Line:
