Chart 1 Dome Lamp Is Inoperative With the Switch
Chart 1 Dome Lamp Is Inoperative With the Switch

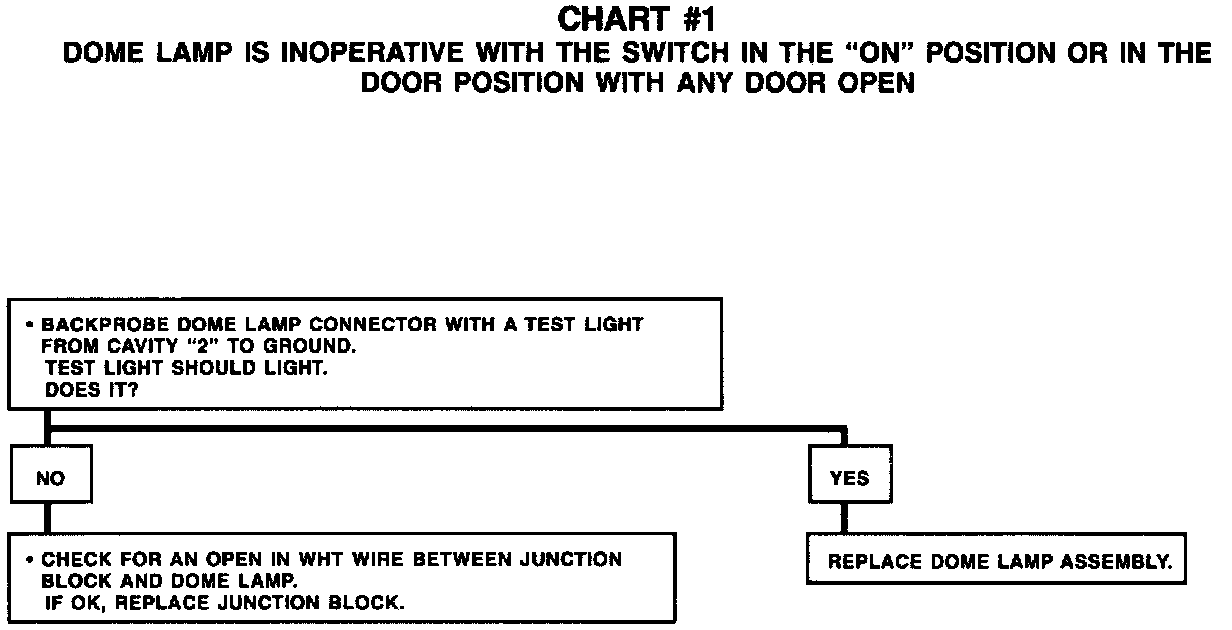

Chart #1 Dome Lamp Is Inoperative With The Switch In ON Position:
