Chart 1 Horn Does Not Sound With Either Horn Switch Pressed
Chart 1 Horn Does Not Sound With Either Horn Switch Pressed

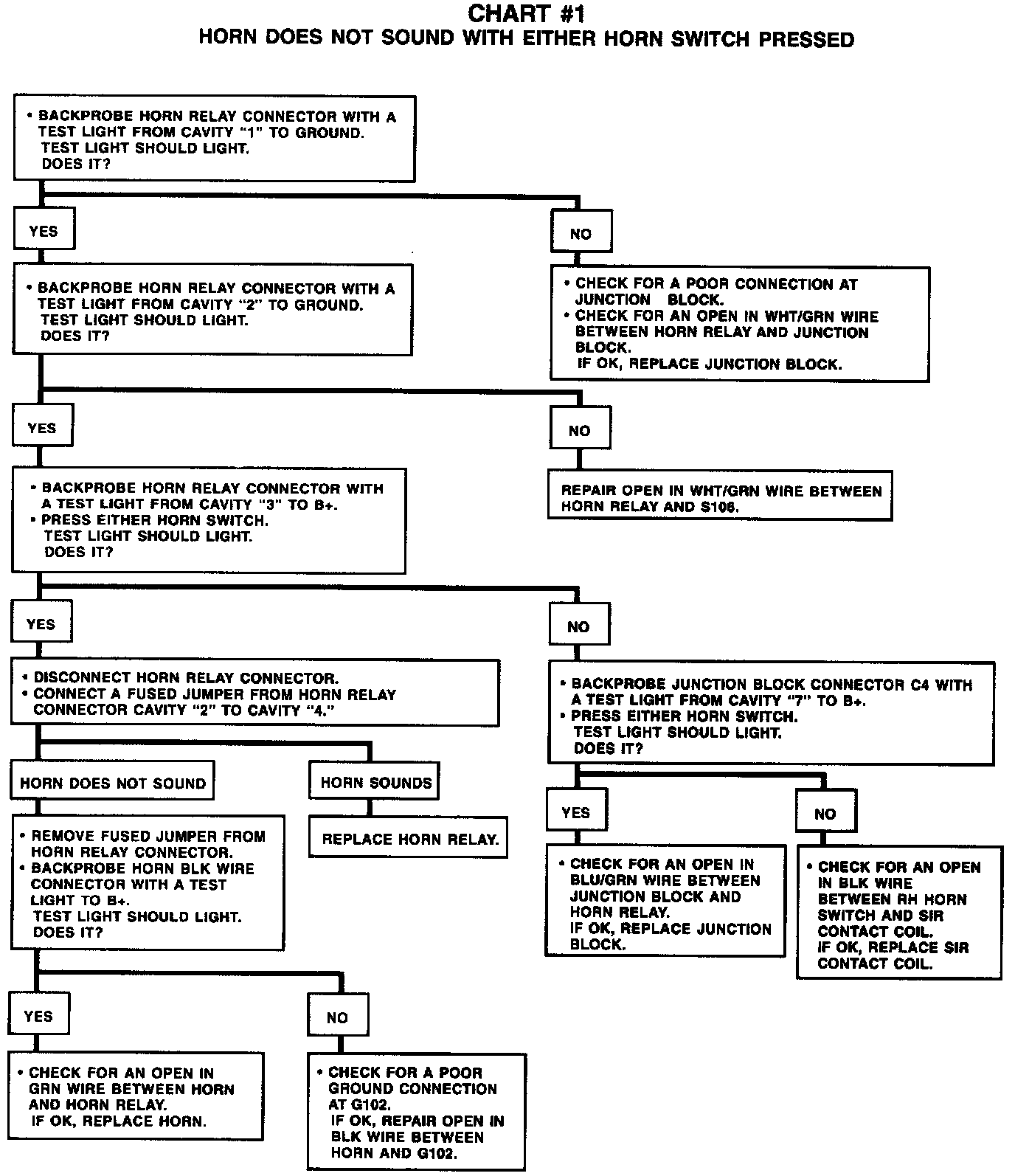

Chart #1 Horn Does Not Sound With Either Horn Switch Pressed:
