1996
>>
Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnostic Charts
>>
Chart 1 Neither LH Nor RH Low Beam Filaments Light
Chart 1 Neither LH Nor RH Low Beam Filaments Light

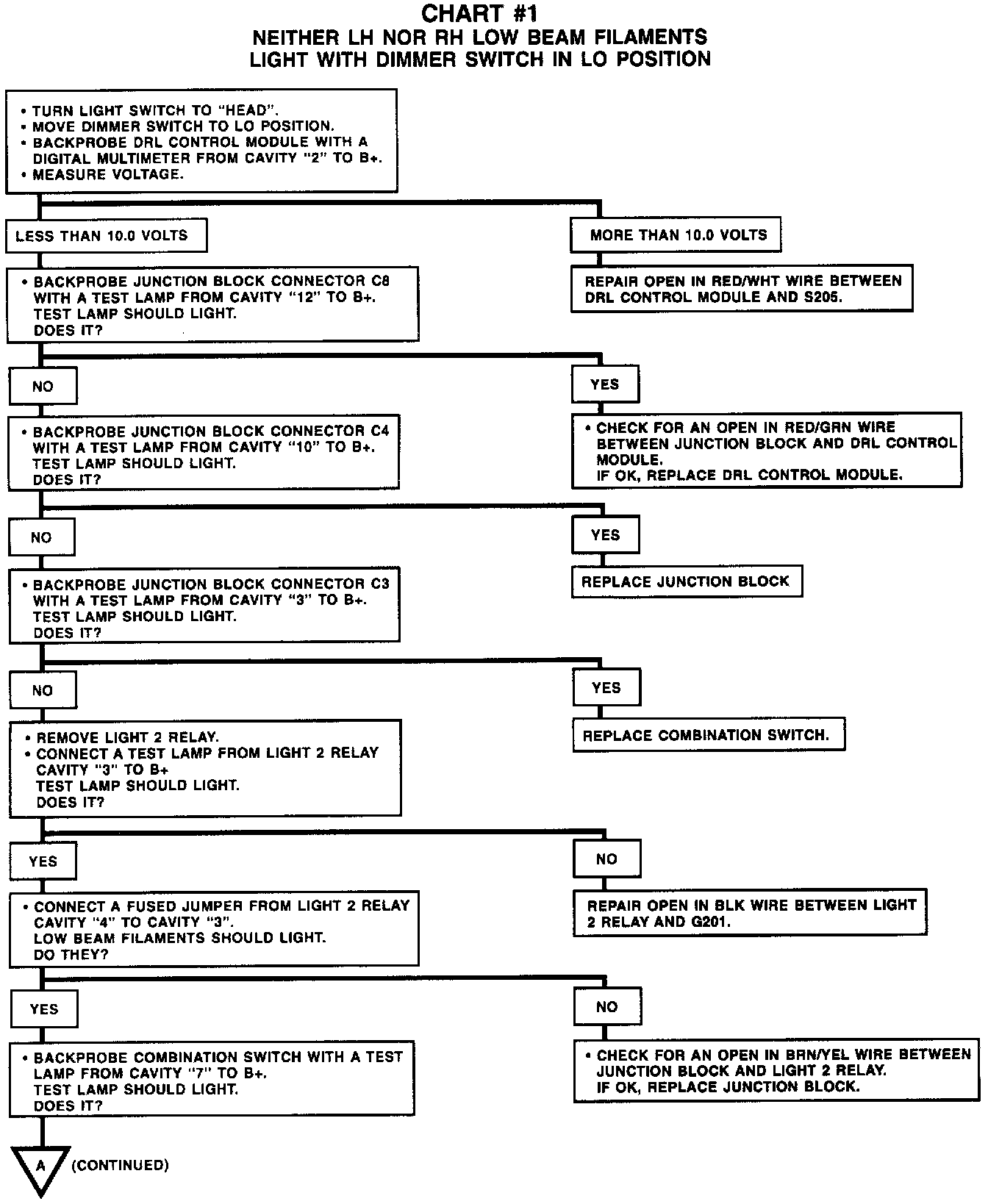

Chart #1 Neither LH Nor RH Low Beam Filaments Light (Part 1 Of 2):

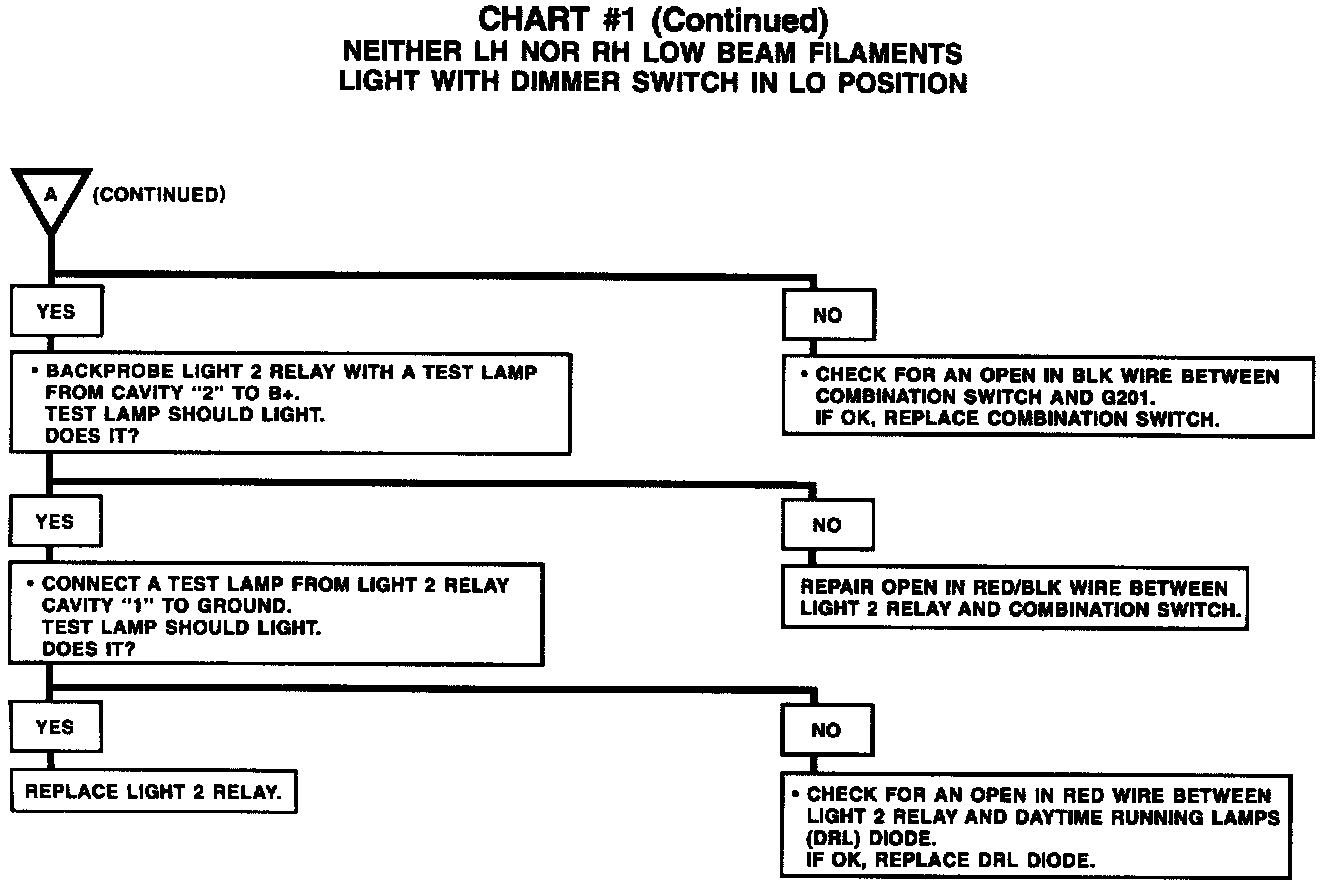

Chart #1 Neither LH Nor RH Low Beam Filaments Light (Part 2 Of 2):
