Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Testing and Inspection
>>
Diagnostic Charts
>>
Manual Transaxle
Manual Transaxle

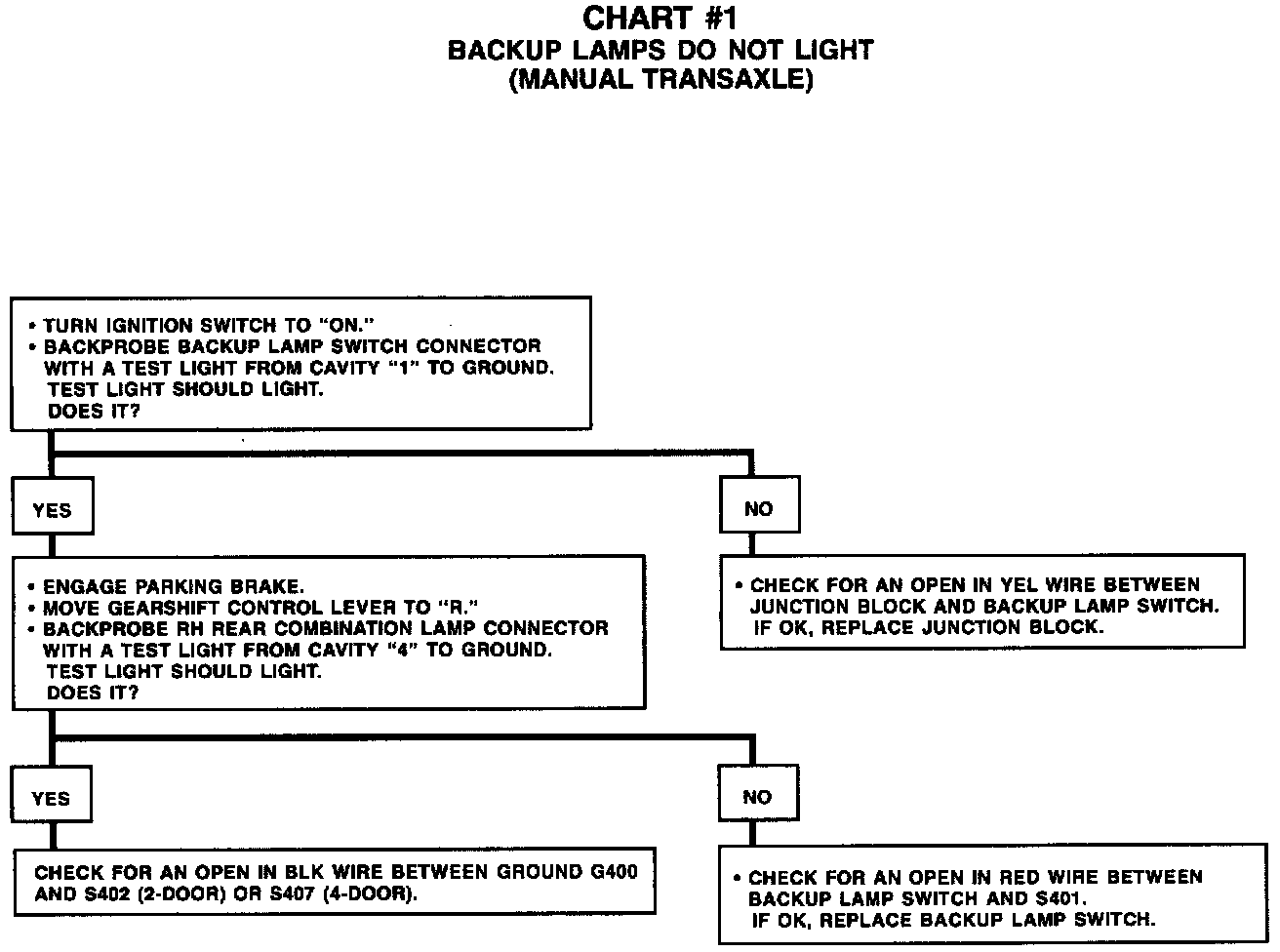

Chart #1 Backup Lamps Do Not Light (Manual Transaxle):
