Chart 2 A/C Compressor Clutch Is Engaged
Chart 2 A/C Compressor Clutch Is Engaged

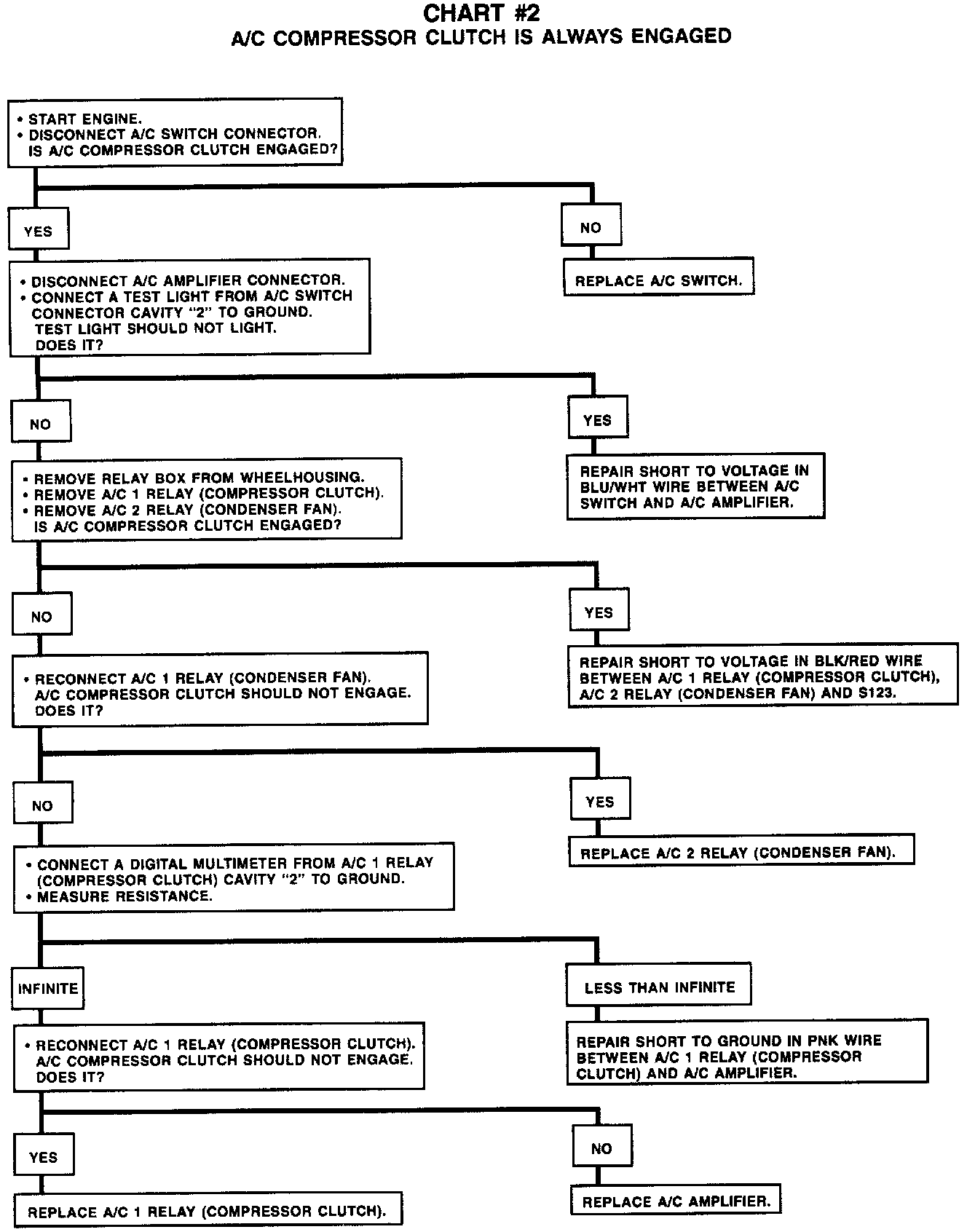

Chart #2 A/C Compressor Clutch Is Engaged:
