Compressor Clutch Coil

Remove or Disconnect

Tool Required:
J 41384-Clutch Plate Holder/Remover

1. Compressor assembly from vehicle.
2. A/C compressor clutch.

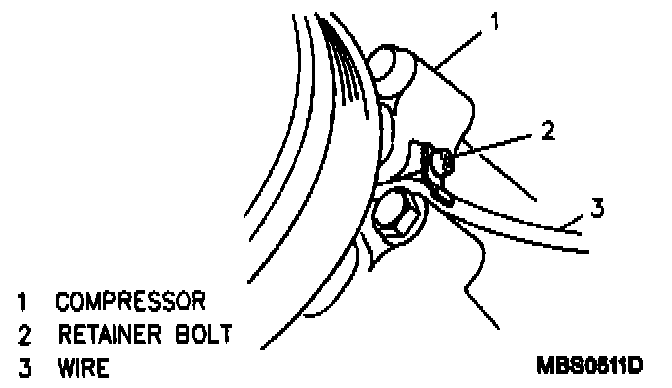

Clutch Coil Wiring Retainer And Bolt:

3. Clutch coil wiring retainer from compressor housing, one screw.
4. Clutch coil from compressor.

Inspect
Tool Required:
J 39200 Digital Multimeter

^ Pressure plate for wear and scoring. Replace if necessary.
^ A/C compressor clutch pulley for wear and scoring. Replace if necessary.

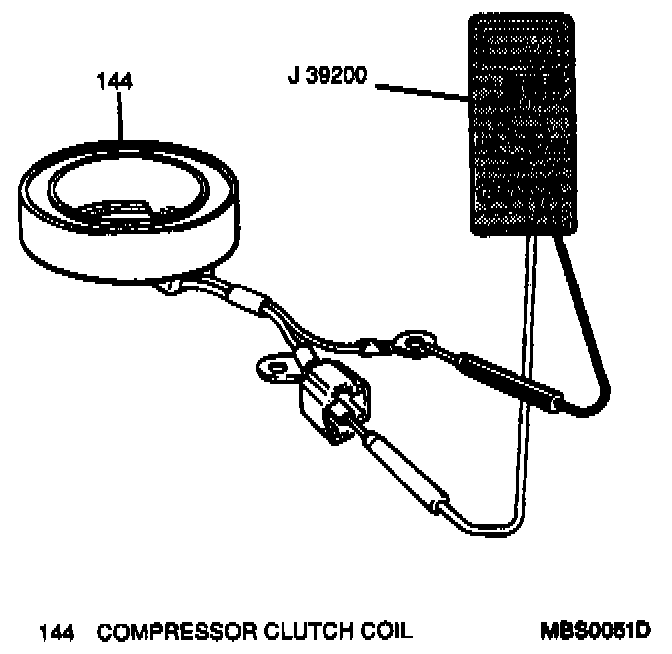

Inspecting Compressor Clutch Coil Resistance:

^ Clutch coil for resistance using tool J 39200. Replace if not within specification.
- Standard resistance: 2.9 to 3.8 ohms.

Install or Connect

1. Clutch coil to compressor.
2. Clutch coil wiring retainer to compressor housing; secure with one screw.

Tighten
^ Clutch coil wiring retainer bolt to 2 to 2.5 N.m (1.4 to 1.8 lbs.ft.).

3. A/C compressor clutch pulley to compressor; Refer to "A/C Compressor Clutch" earlier in this section.
