Engine/Catalytic Converter - Revised Specifications
File In Section: 6 - EngineBulletin No.: 63-61-09
Date: June, 1996
SERVICE MANUAL UPDATE
Subject:
Sections 6A1 and 6A2 - Revised Specifications
Models:
1996 Geo Metro
with 1.OL, 1.3L Engines (VINs 6, 9 - RPOs LP2, L72)
This bulletin is being issued to replace the information found under "Specifications" on pages 6A1-55 and 6A2-54 of the 1996 Service Manual (GMP/96-M-1). The specifications found within Sections 6A1 and 6A2 should also be updated with these revised specifications.
6A1 - 1.0L L3 (VIN 6 - RPO LP2)

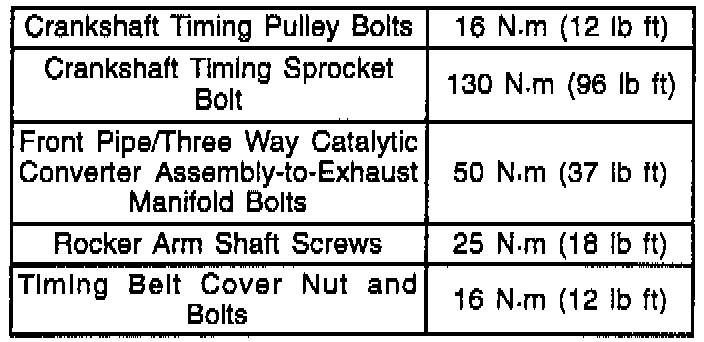

Fastener Tightening Specifications
Flywheel Retaining Bolts 78 N.m (56 lb ft)
Heat Shield Bolts 6 N.m (53 lb in.)
6A2 - 1.3L L4 (VIN 9 - RPO L72)
Fastener Tightening Specifications
Engine Specifications
Camshaft
Camshaft Timing Sprocket Bolts 60 N.m (43 lb ft)
