Symptom Related Diagnostic Procedures

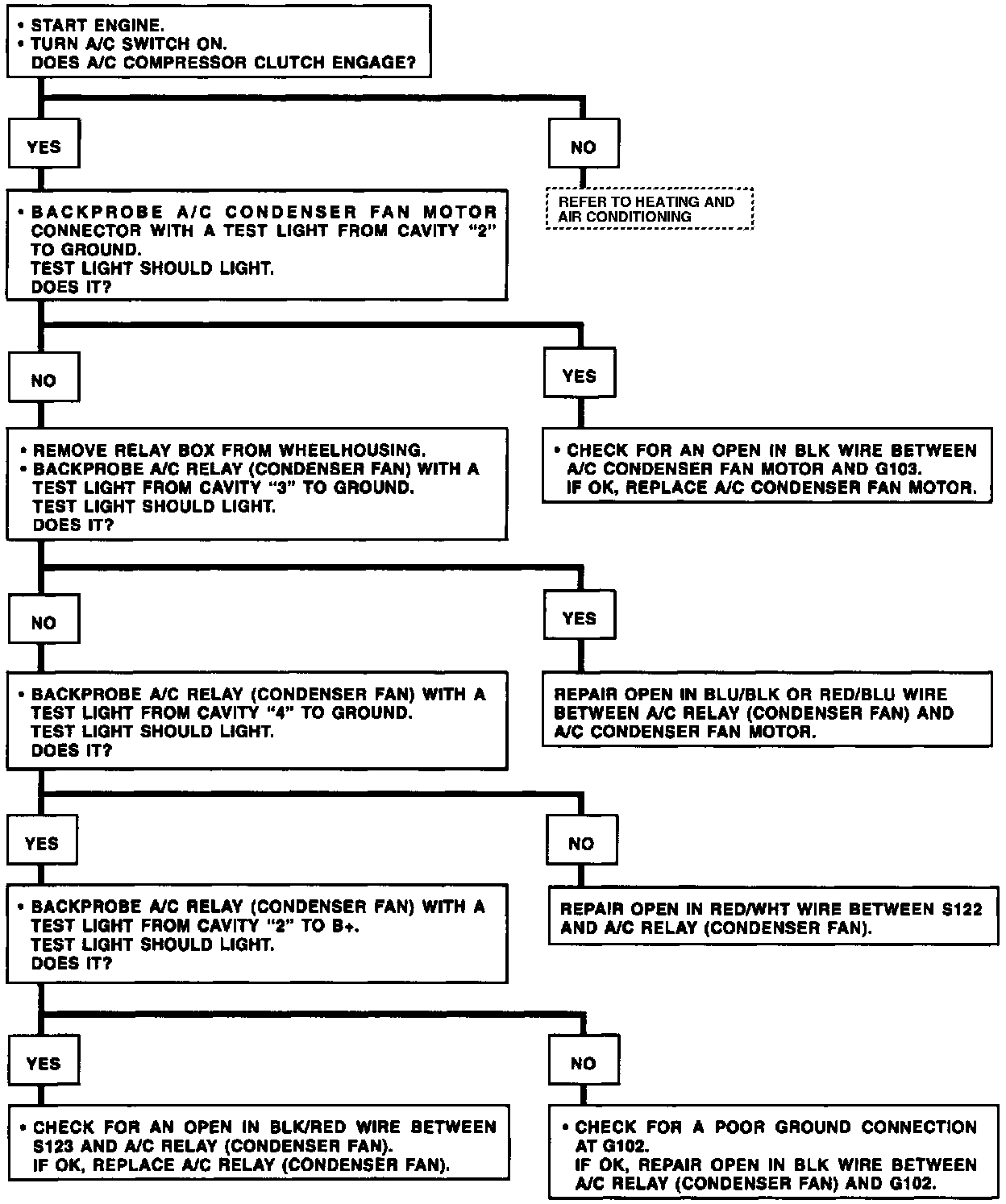

Fig. 97 Chart 1, Cooling Fan Diagnosis (A/C Condenser Fan Motor Does Not Run):
Refer to
Fig. 97
when performing diagnostic procedures.
