Temperature Gauge
>>
Testing and Inspection
>>
Engine Coolant Temperature (ECT) Gauge Indicates "C" Always
Engine Coolant Temperature (ECT) Gauge Indicates "C" Always

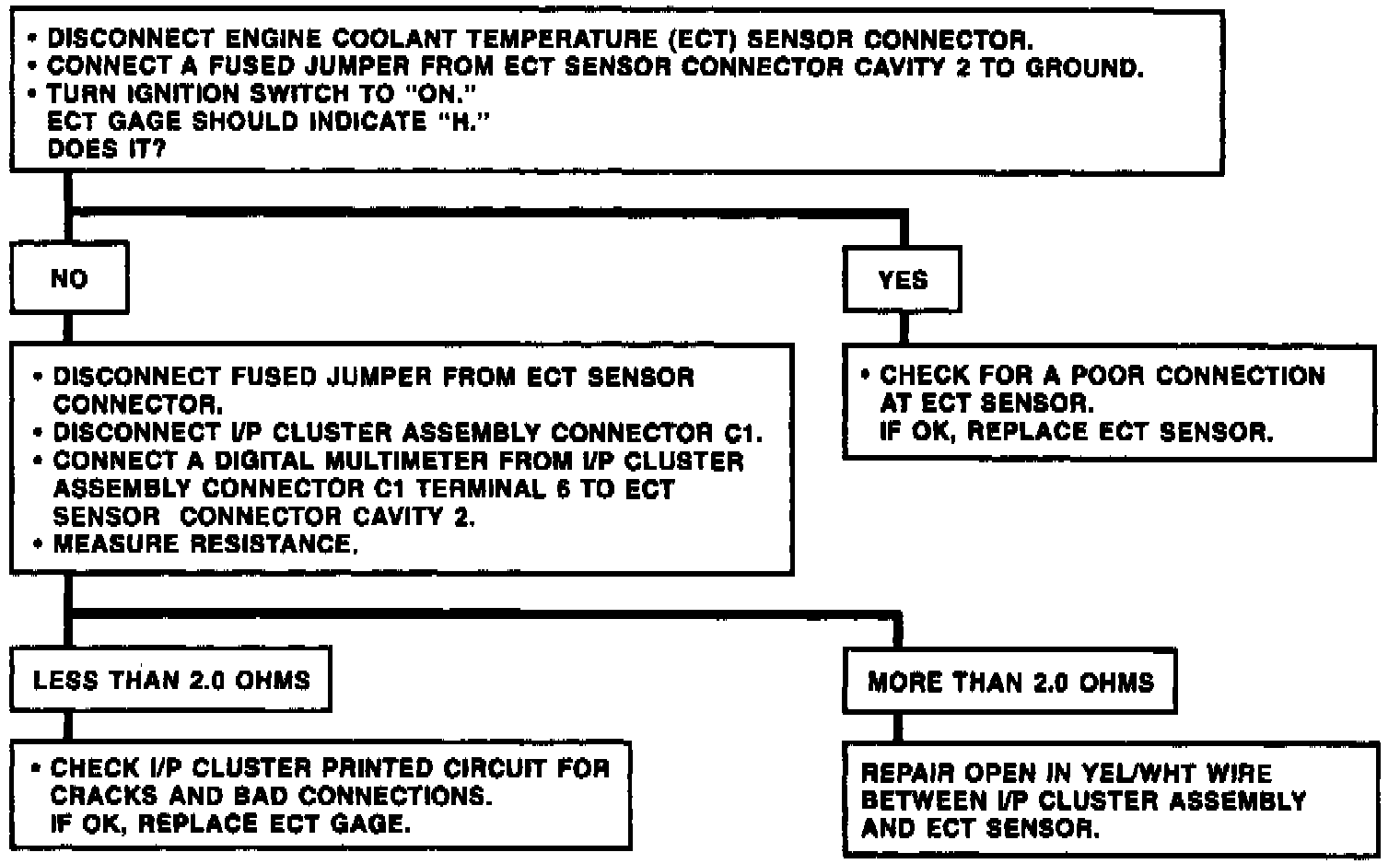

Fig. 134 Chart 1: Engine Coolant Temperature (ECT) Gauge Indicates "C" At All Times:
