Home >> Geo >> 1996 >> Metro L3-061 1.0L VIN 6 TBI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Lamps and Indicators - Cooling System >> Temperature Gauge >> Testing and Inspection >> Engine Coolant Temperature (ECT) Gauge Is Inaccurate

Engine Coolant Temperature (ECT) Gauge Is Inaccurate

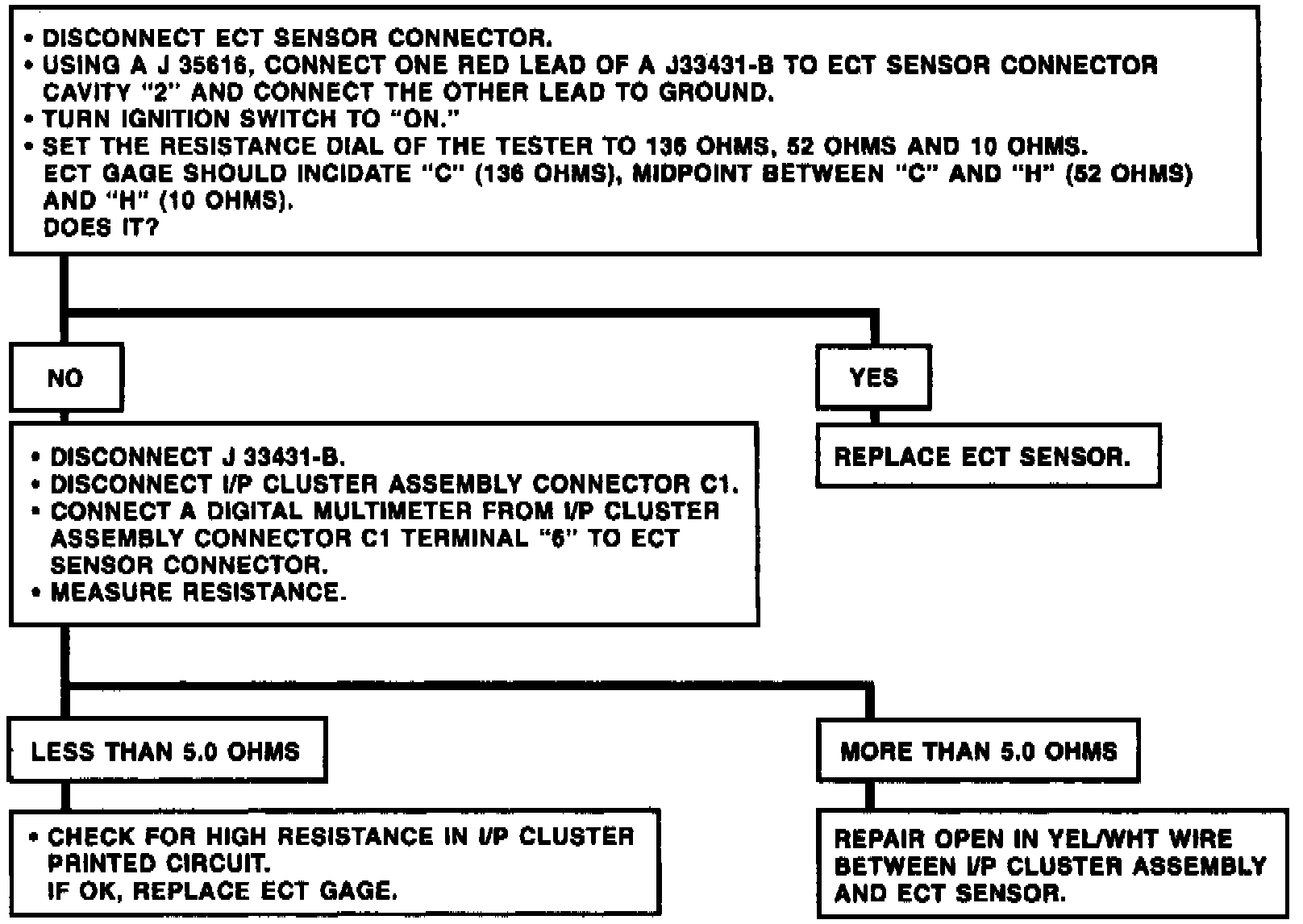

Fig. 136 Chart 3: Engine Coolant Temperature (ECT) Gauge Is Inaccurate:
