Home >> Geo >> 1996 >> Metro L3-061 1.0L VIN 6 TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Fuses >> PTC Fuse, FI Fuse, RDTR Fuse & A/C Fuse

PTC Fuse, FI Fuse, RDTR Fuse & A/C Fuse

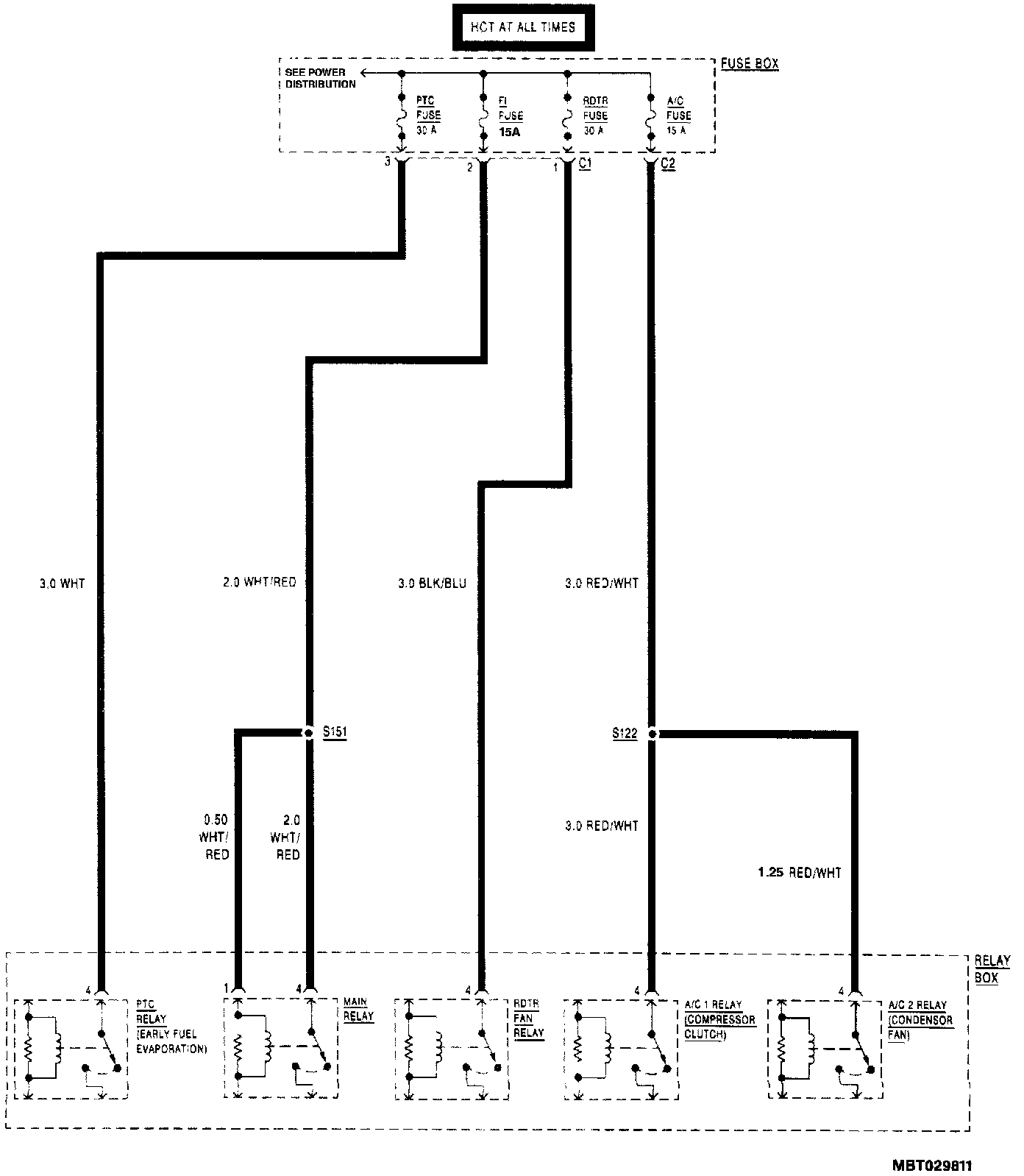

PTC, FI, RDTR And A/C Fuse:
