Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Powertrain Control Module - PCM
Powertrain Control Module - PCM

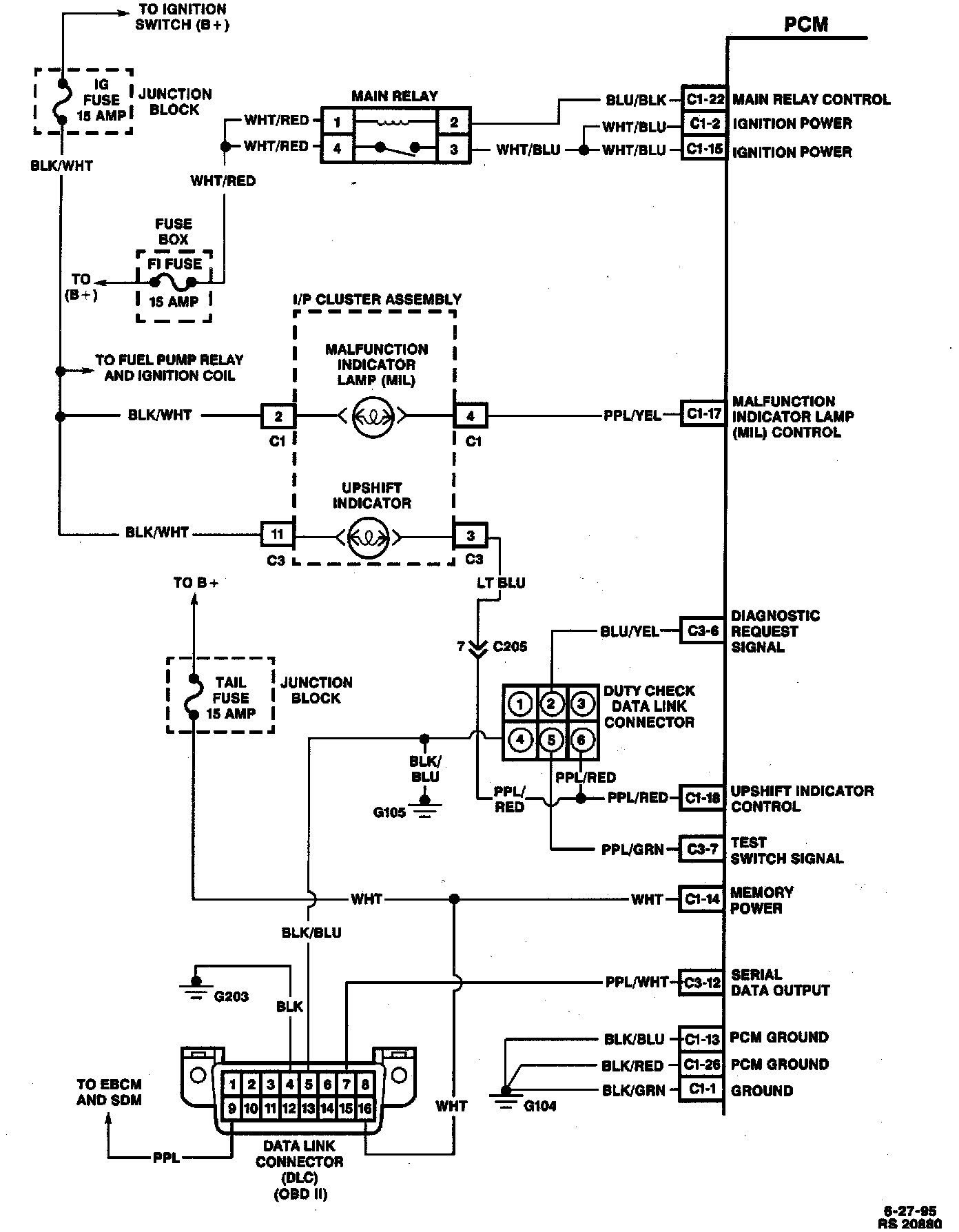

PCM Wiring Diagram (1 Of 6):

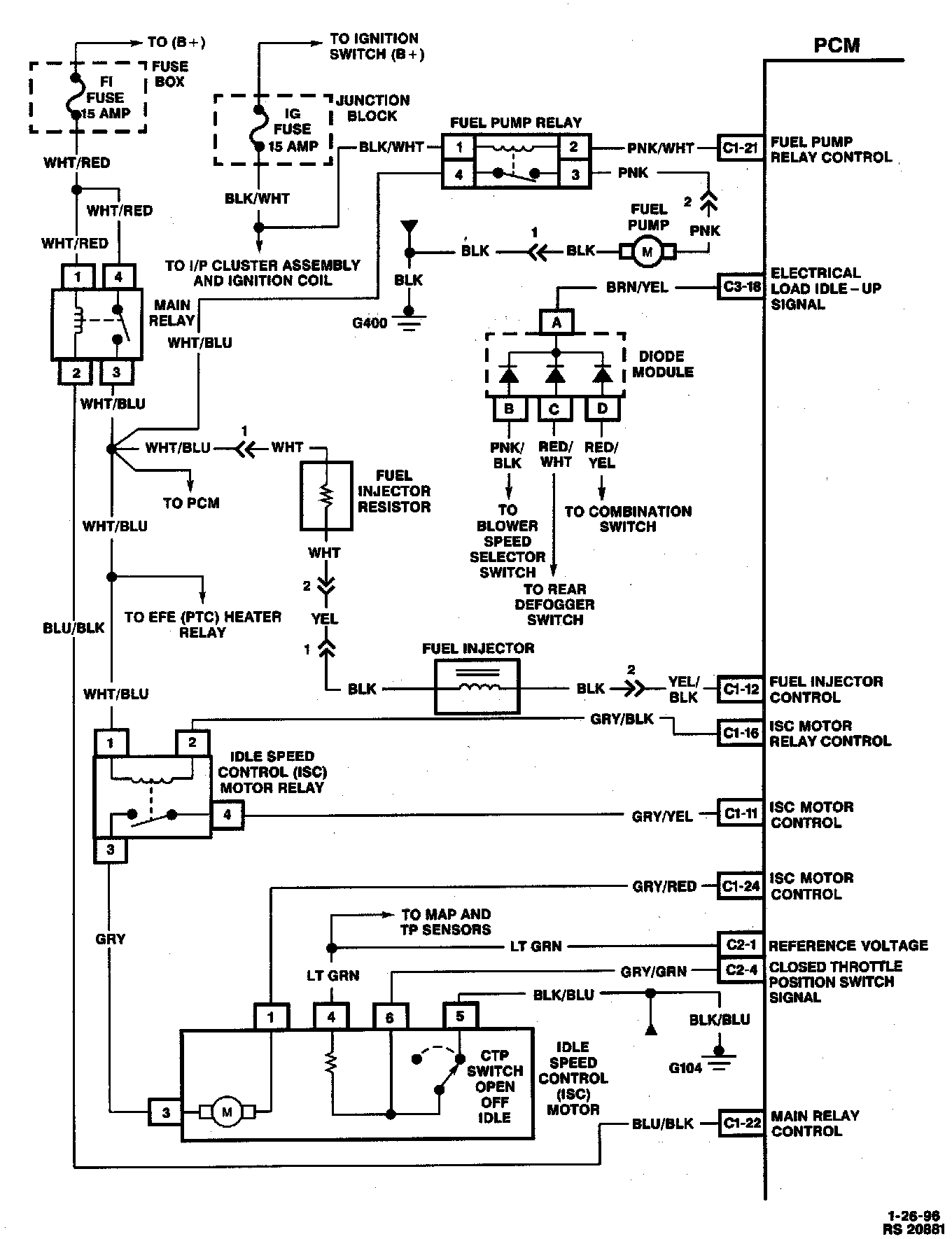

PCM Wiring Diagram (2 Of 6):

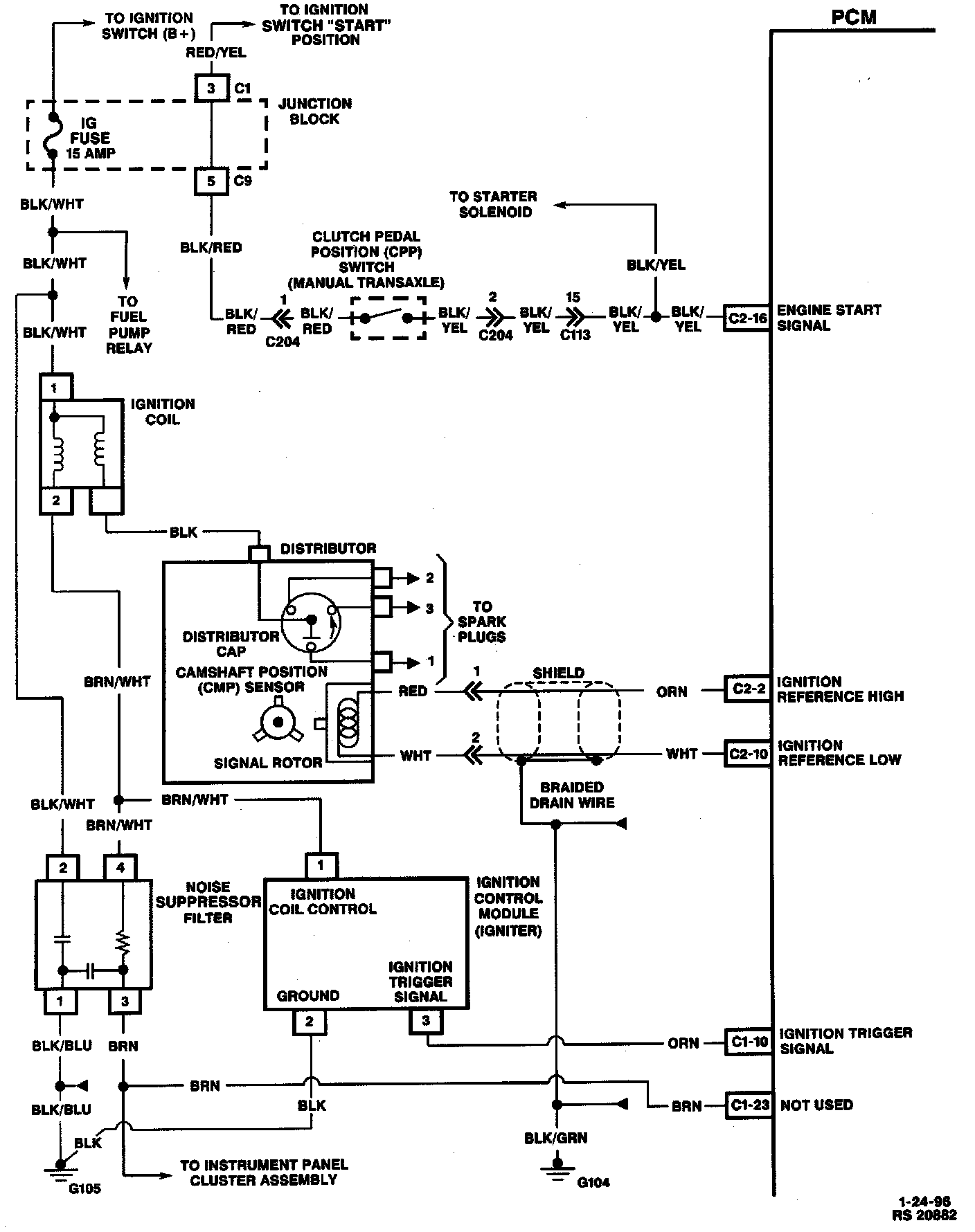

PCM Wiring Diagram (3 Of 6):

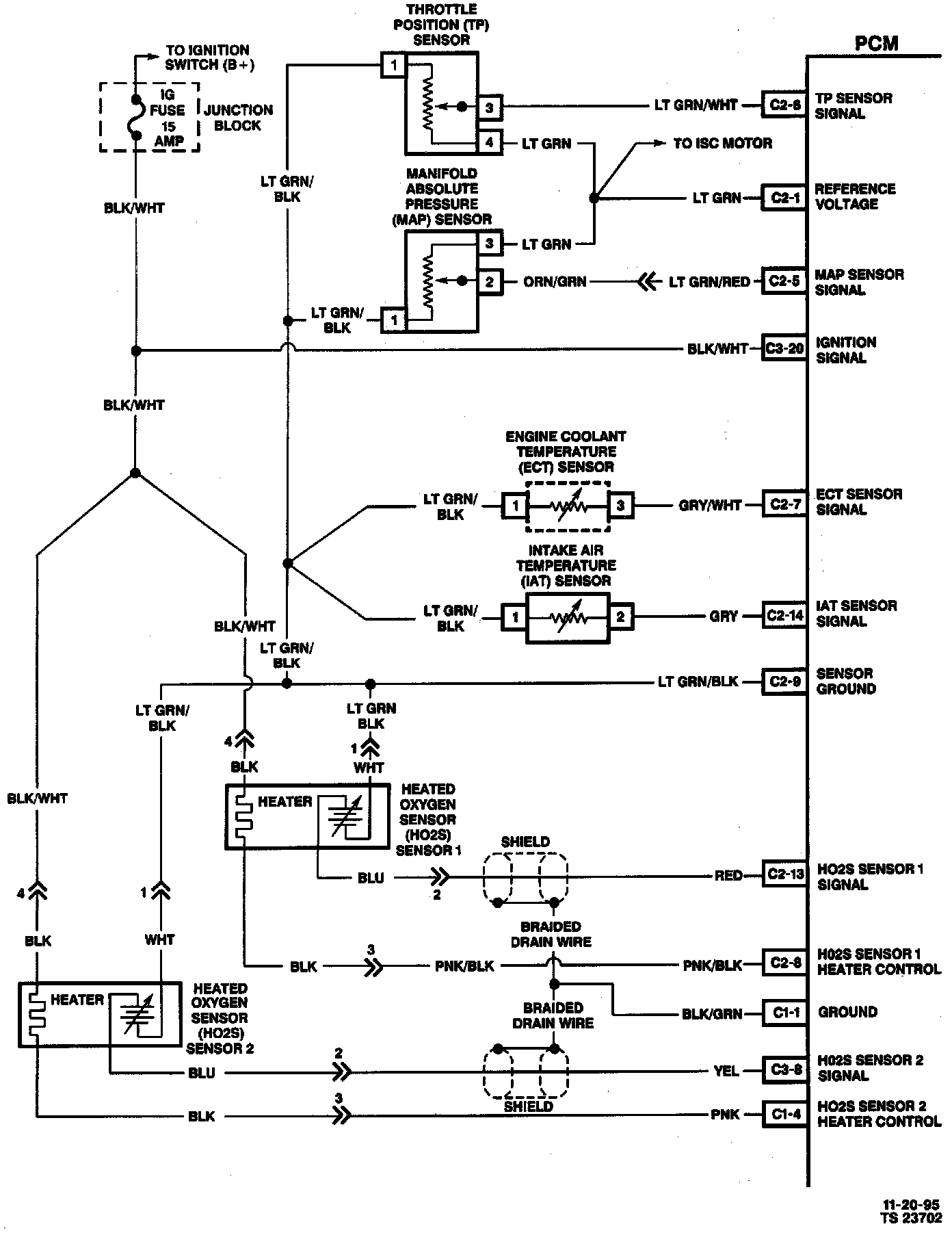

PCM Wiring Diagram (4 Of 6):

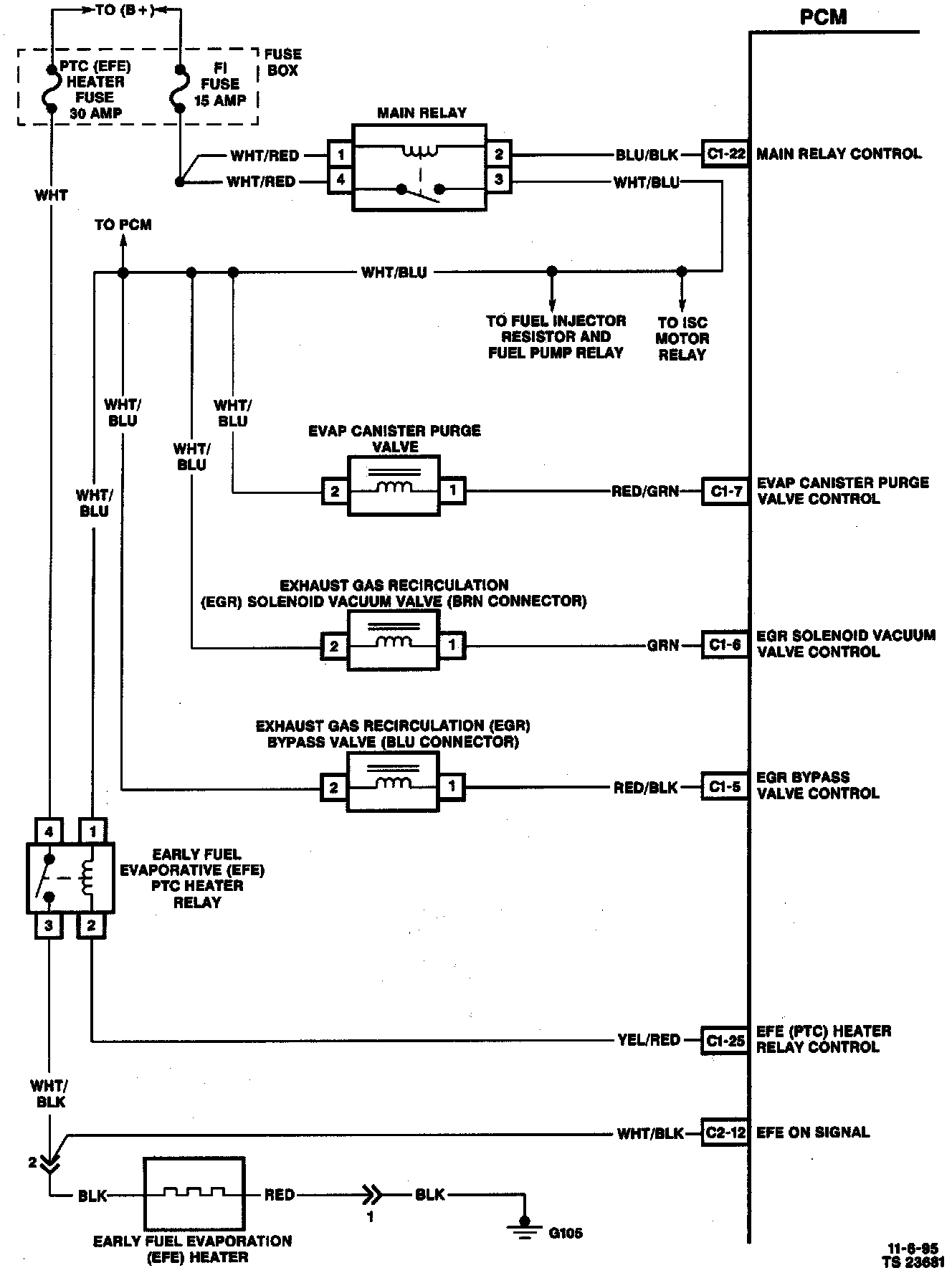

PCM Wiring Diagram (5 Of 6):

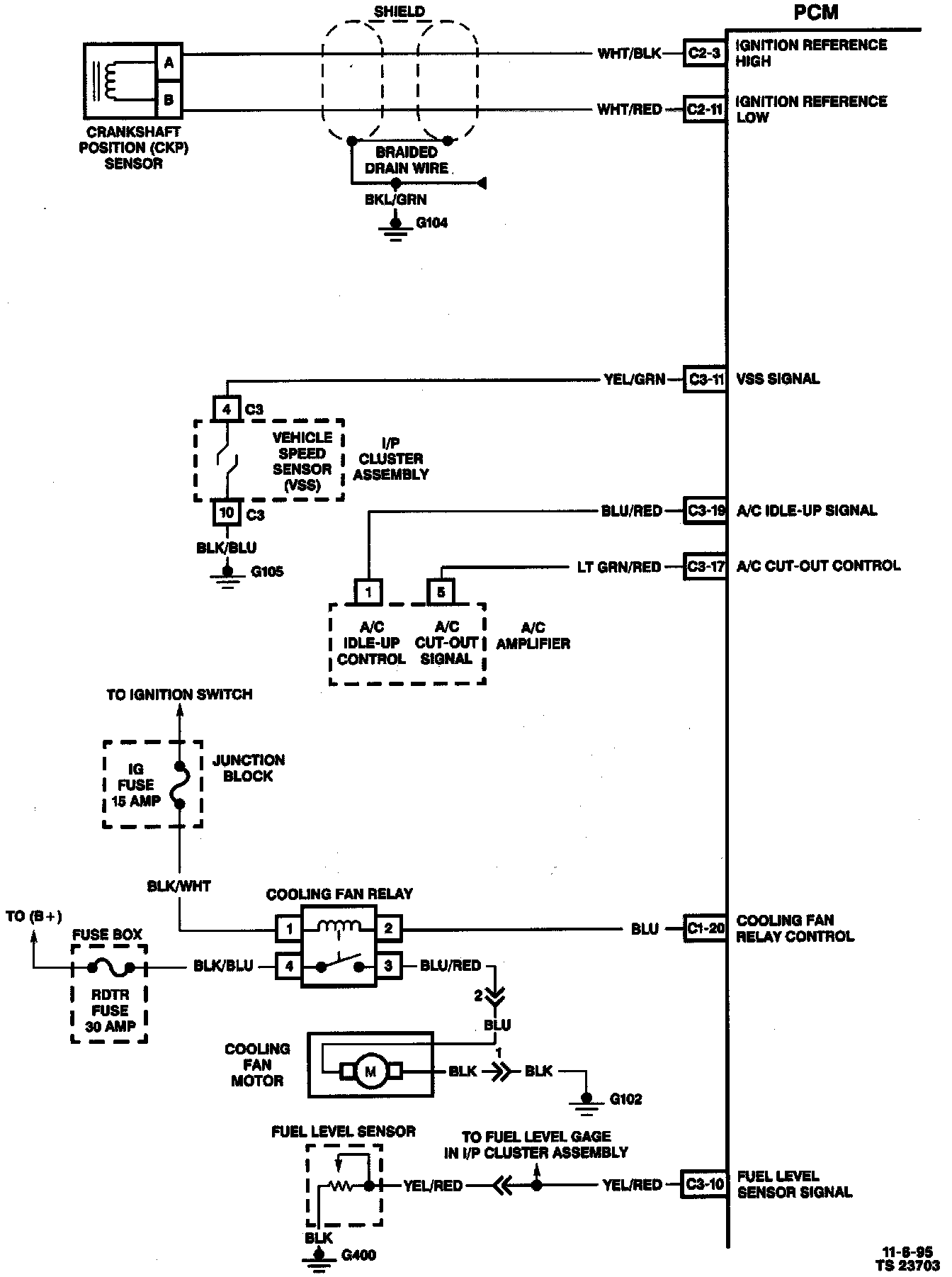

PCM Wiring Diagram (6 Of 6):
