Home
>>
Geo
>>
1996
>>
Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Data Sensors
Data Sensors

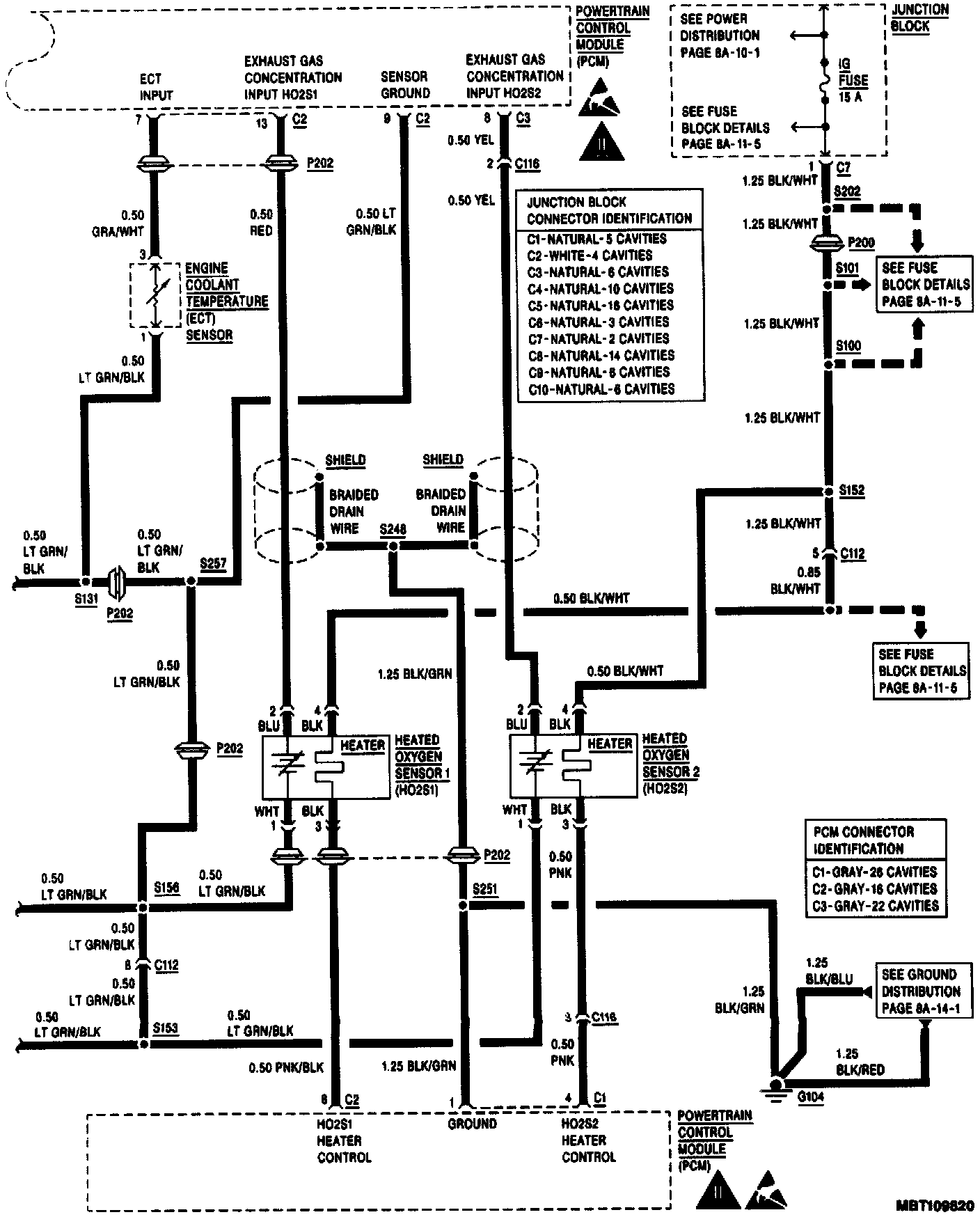

Engine And Vehicle Data Sensors (Part 1 Of 2):

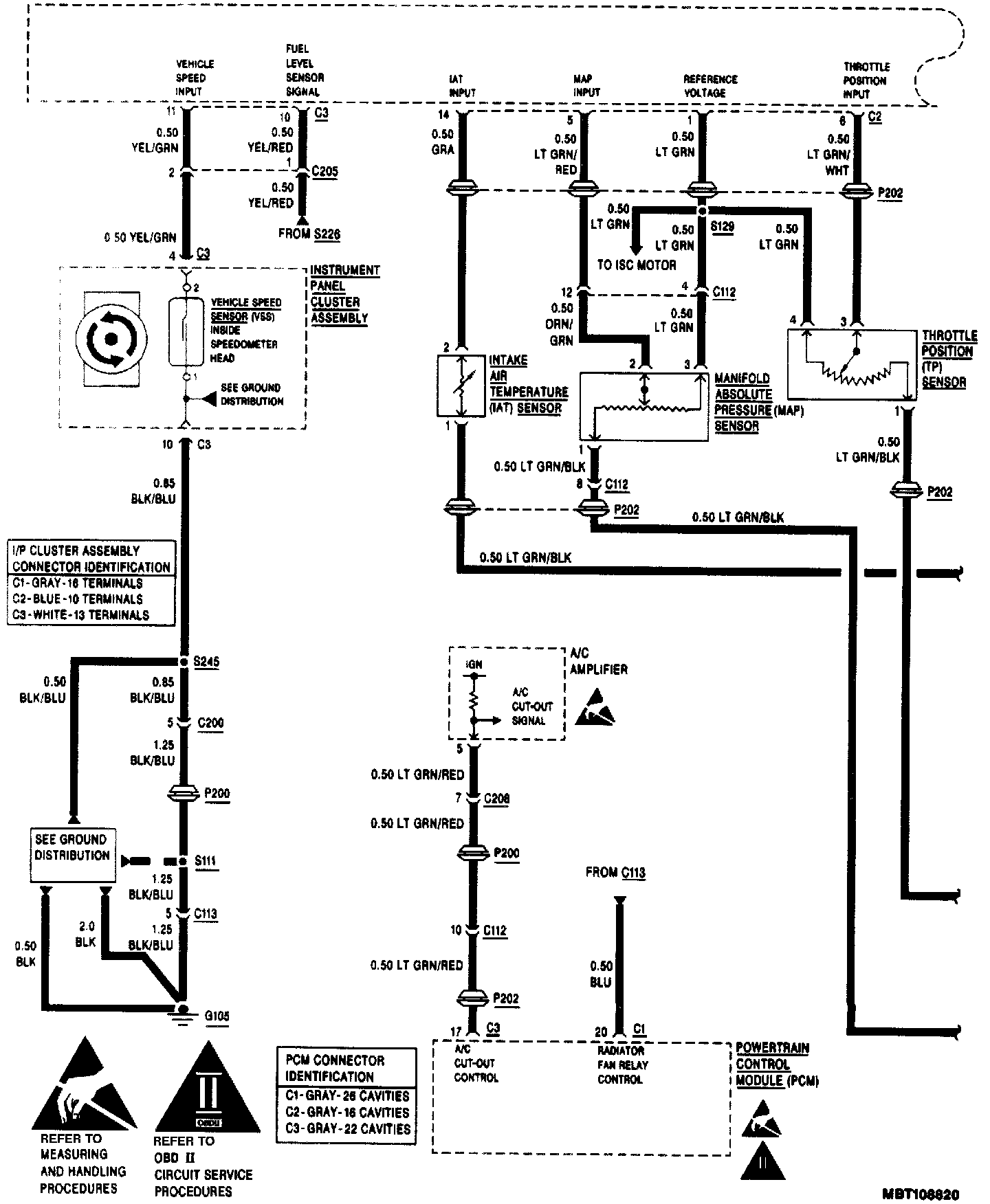

Engine And Vehicle Data Sensors (Part 2 Of 2):
