Home >> Geo >> 1996 >> Metro L3-061 1.0L VIN 6 TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> HVAC: Compressor Control

HVAC: Compressor Control

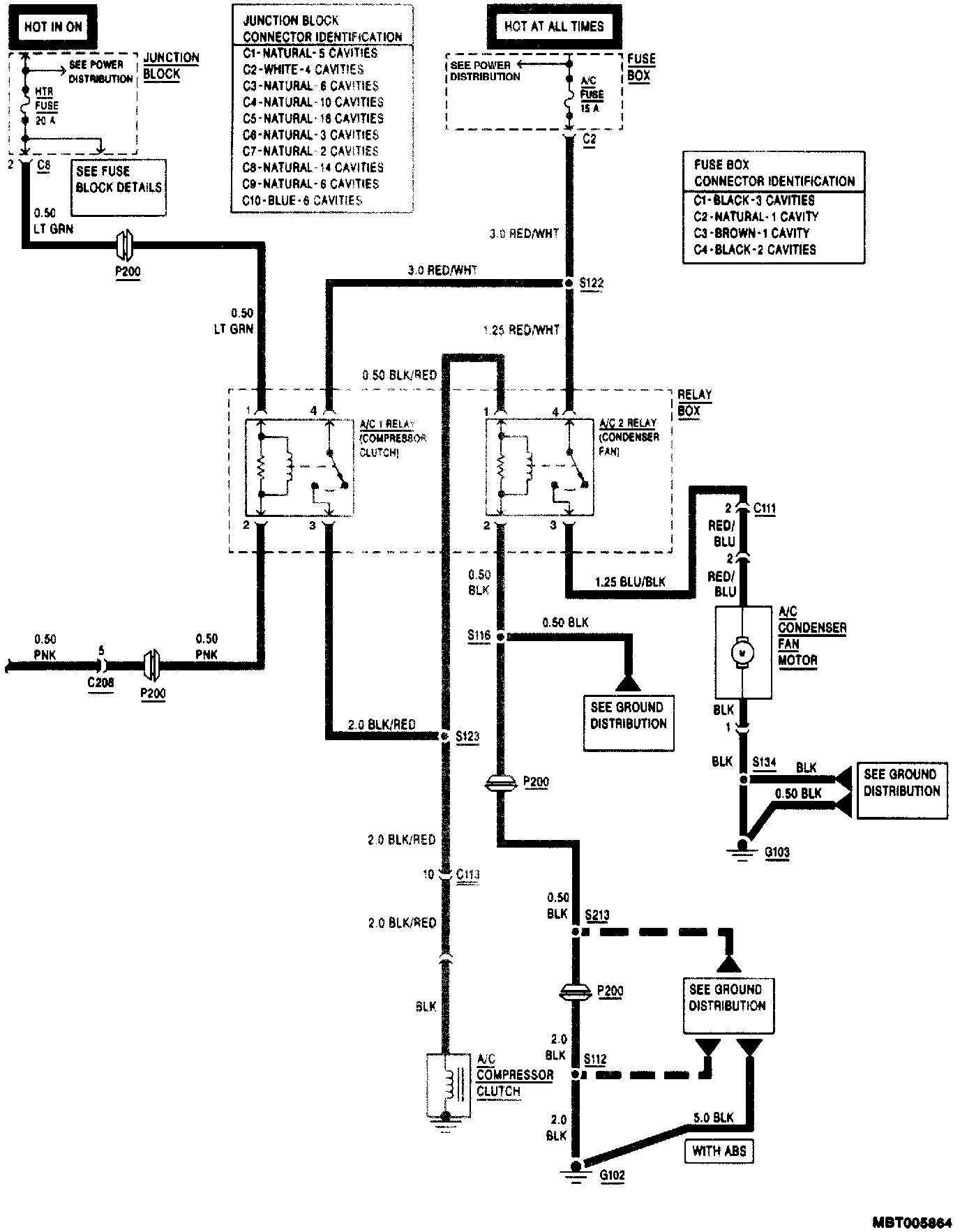

HVAC: Compressor Control (Part 1 Of 2):

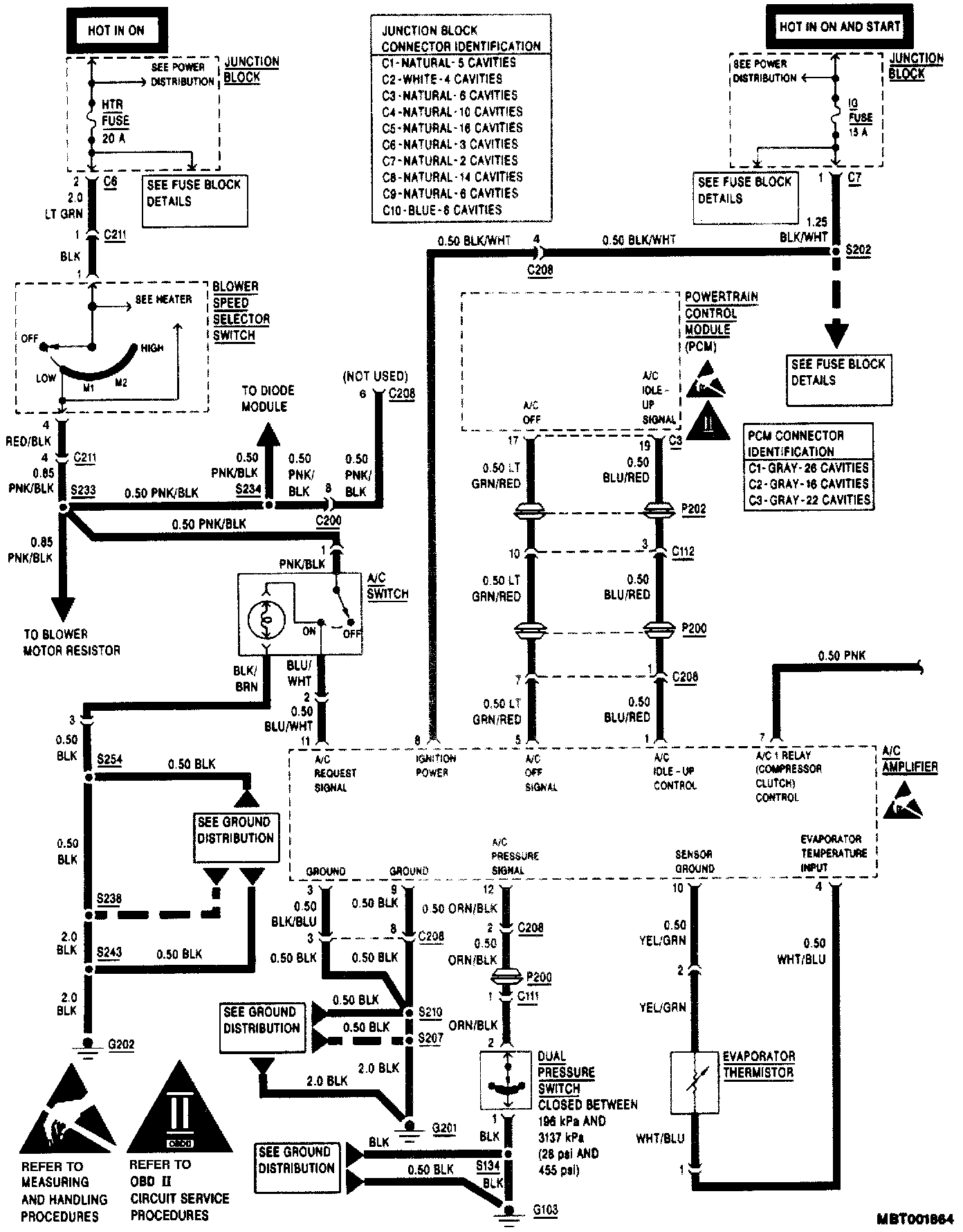

HVAC: Compressor Control (Part 2 Of 2):
