Home >> Geo >> 1996 >> Metro L3-061 1.0L VIN 6 TBI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Component >> Junction Block C5

Junction Block C5

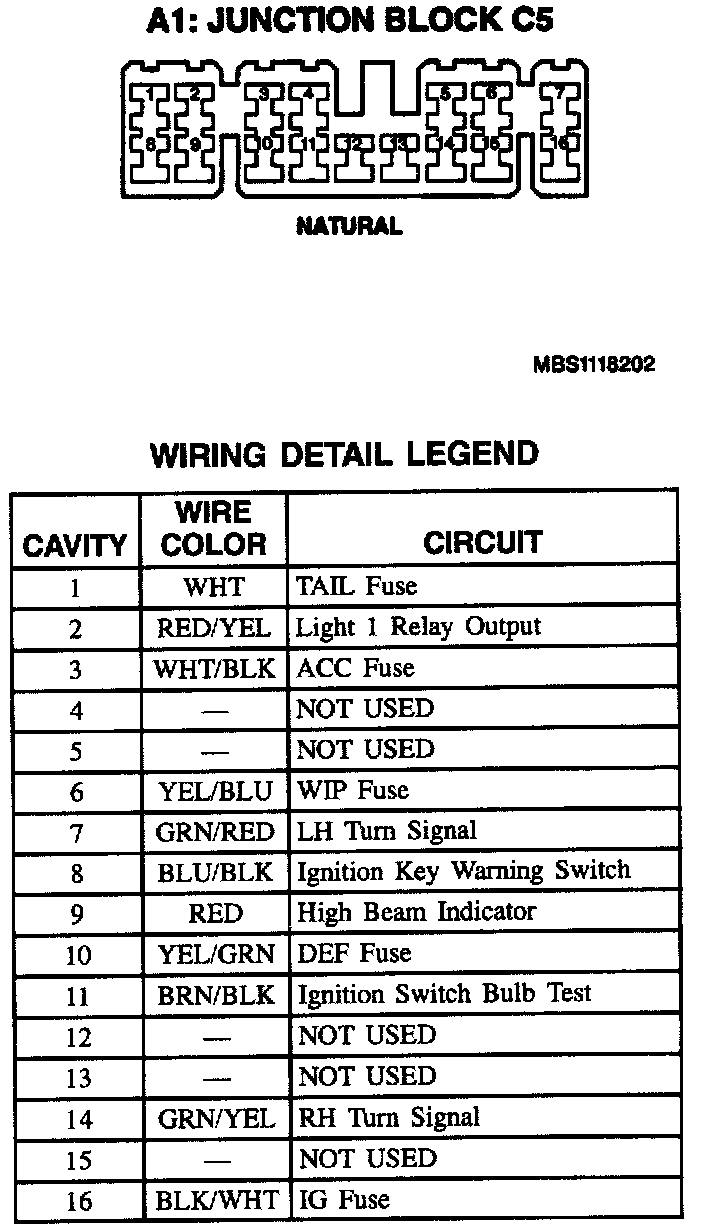

A1: Junction Block C5:
