A065

Rear Motor Circuit:

Circuit Description:
This DTC identifies a motor that cannot be energized due to an open in its circuitry.

Failure Condition:
DTC AO65 can be set only when the motor is commanded off. If the EBCM detects an out of range voltage on either of the rear motor circuits (indicating an open circuit), a malfunction exists.

Action Taken:
An open motor will not activate when requested. A DTC AO64 is stored, ABS is disabled and the "ABS" indicator is turned on or will flash.

Test Description:

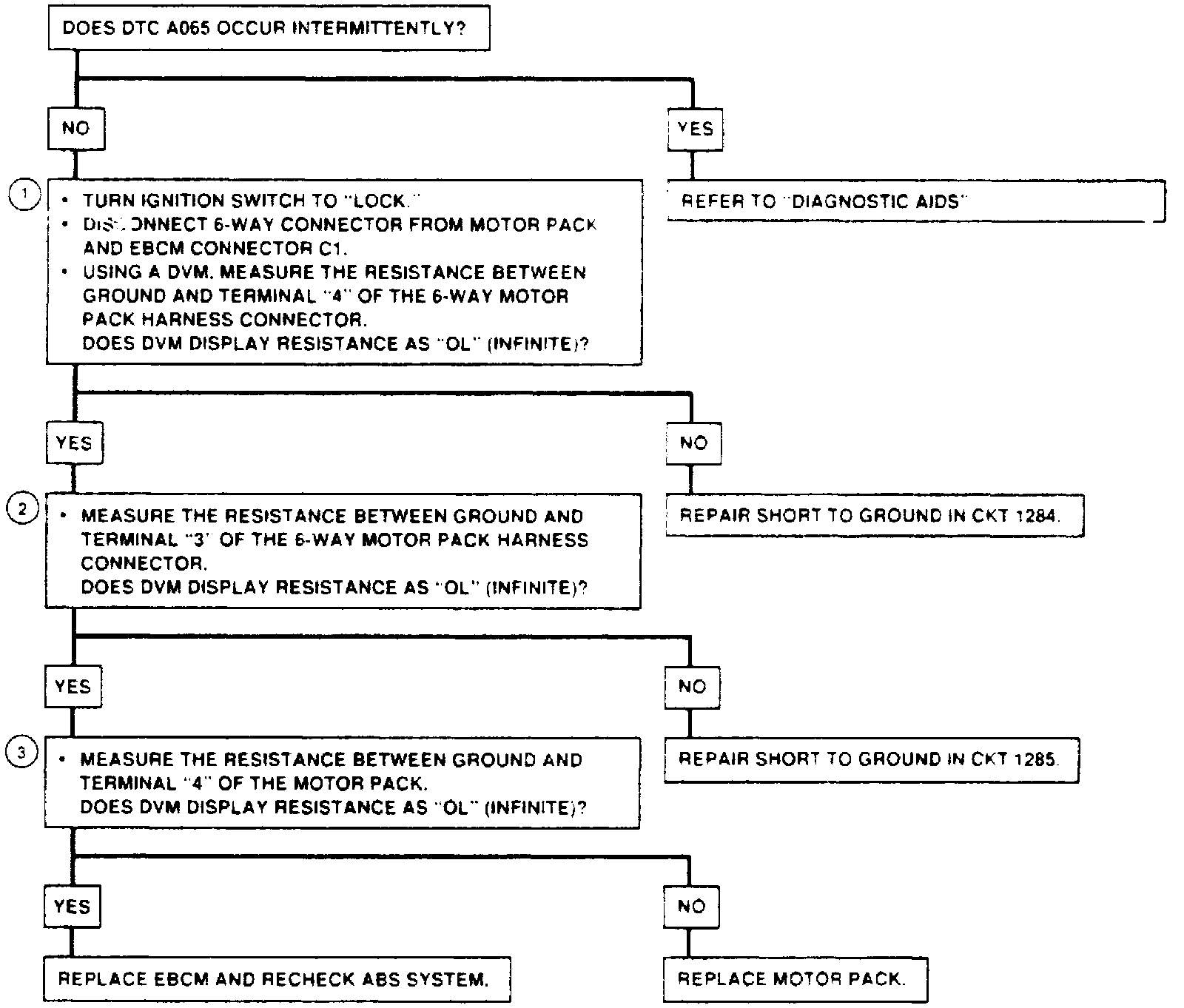

Number(s) below refer to circled number(s) on the diagnostic chart.
1. This step checks for proper resistance of the motor.
2. This step checks for an open in the motor high circuitry.
3. This step checks for an open in the motor low circuitry.

Diagnostic Aids:
Using TECH 1, select manual control function and exercise motor movement of affected channel in both directions while applying light pressure on the brake pedal.

If erratic or "jumpy" brake pedal movement is detected while performing an "apply" or "release" function of the motor, an intermittent malfunction may be indicated.

An "intermittent" malfunction may be caused by a poor connection, rubbed through wire insulation or a wire that is broken inside the insulation.

If the malfunction is not current, wiggle the wires of the affected channel and check if the DTC resets. This will help to pinpoint an intermittent malfunction in the motor circuitry or connections.

The frequency of the malfunction can be checked by using the enhanced diagnostic function of the TECH 1.

Any circuitry that is suspected of causing the intermittent complaint should be thoroughly checked for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wiring connections or physical damage to the wiring harness.
