Automatic Transmission/Transaxle Controls

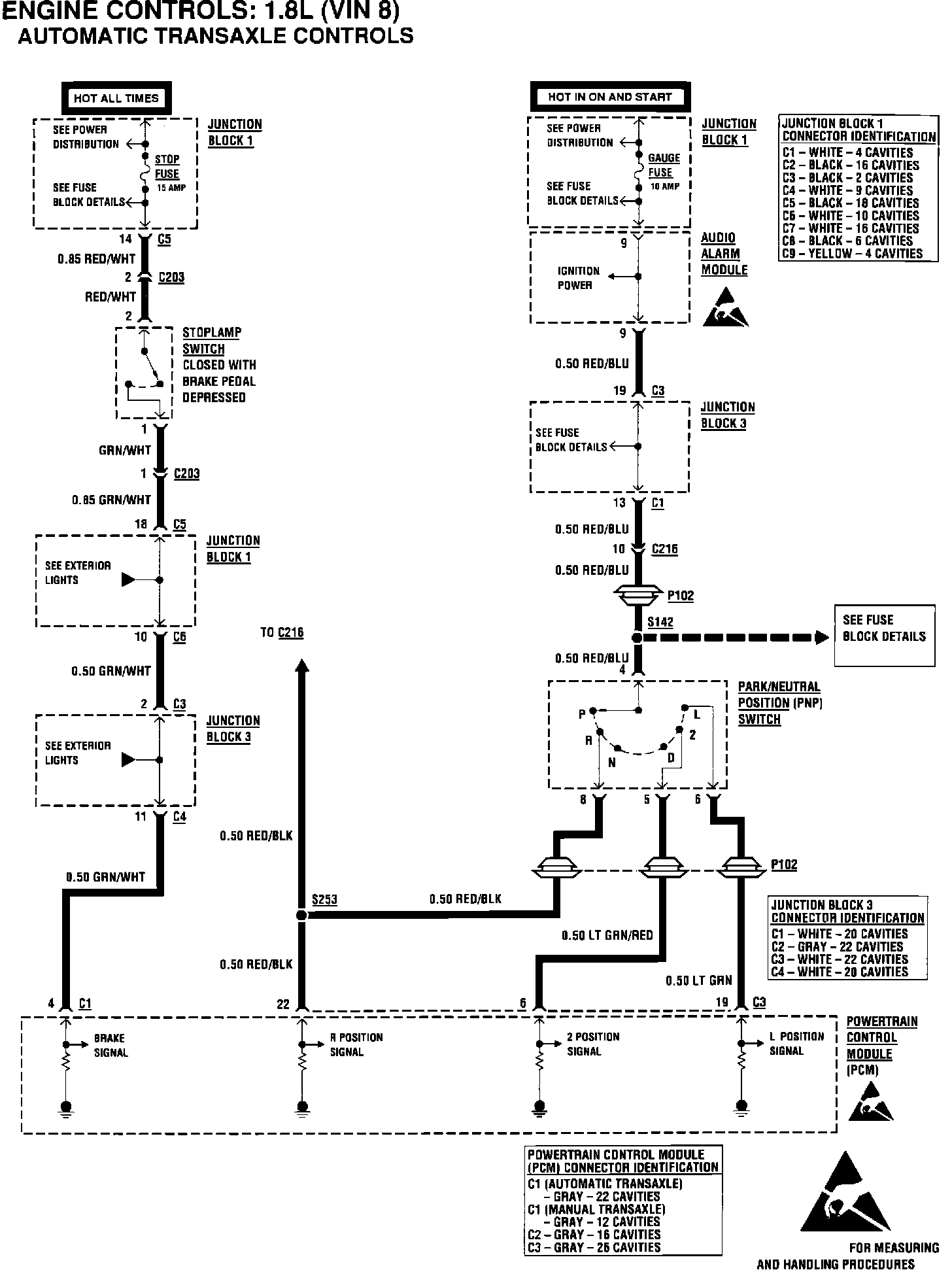

PCM Wiring Diagram 1.8L Prizm:

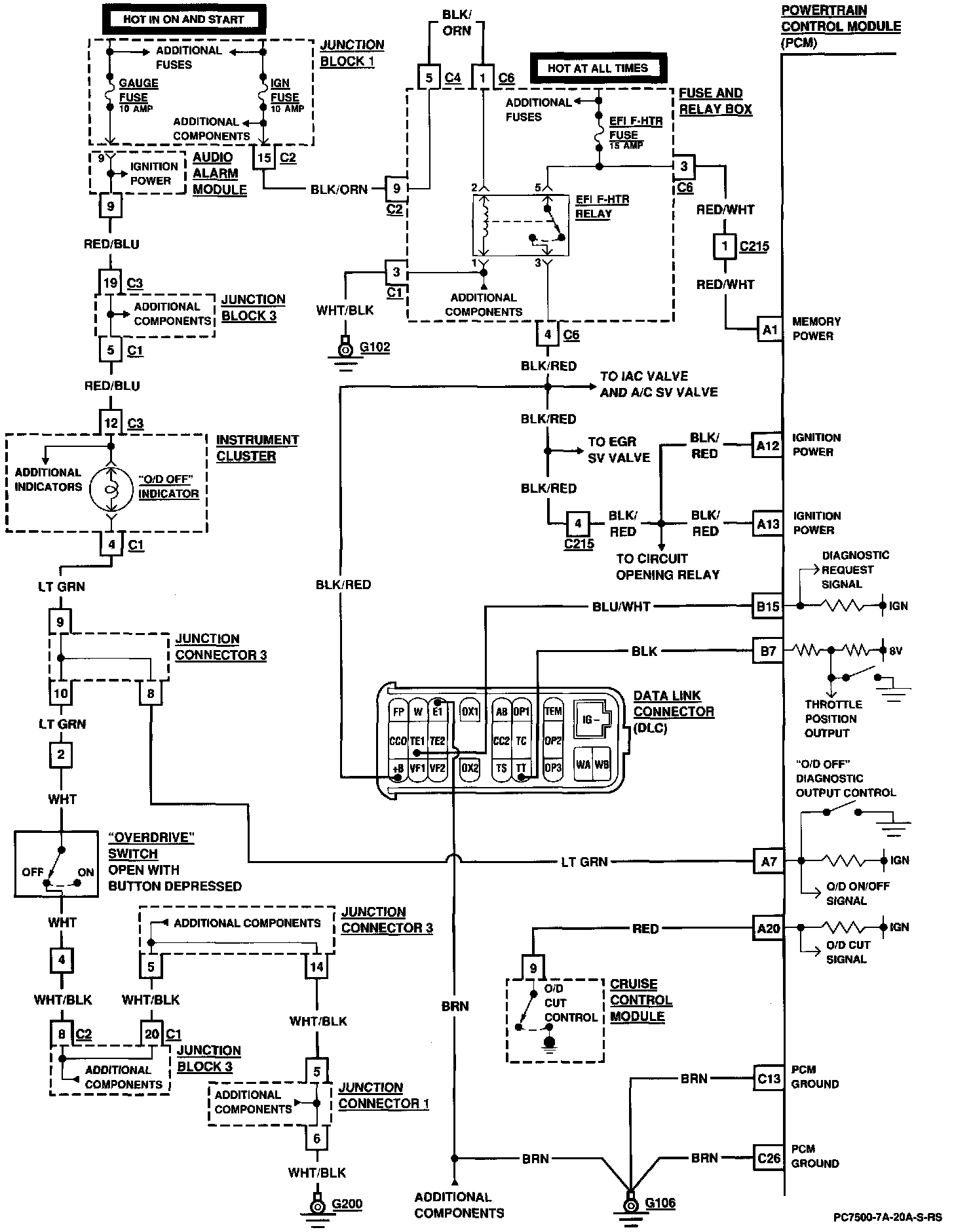

PCM Wiring Diagram 1.8L Prizm:

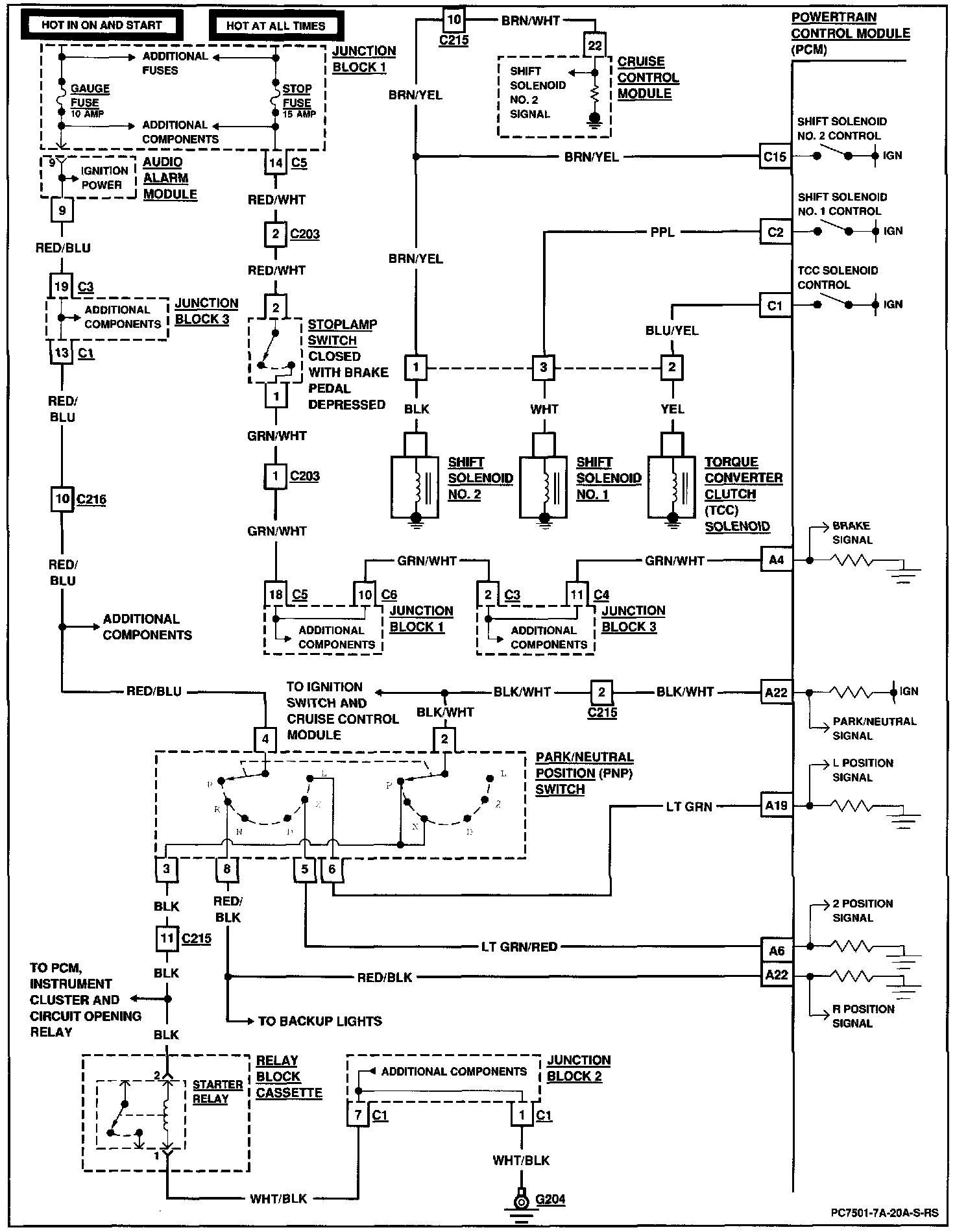

PCM Wiring Diagram - Part 1 Of 3:

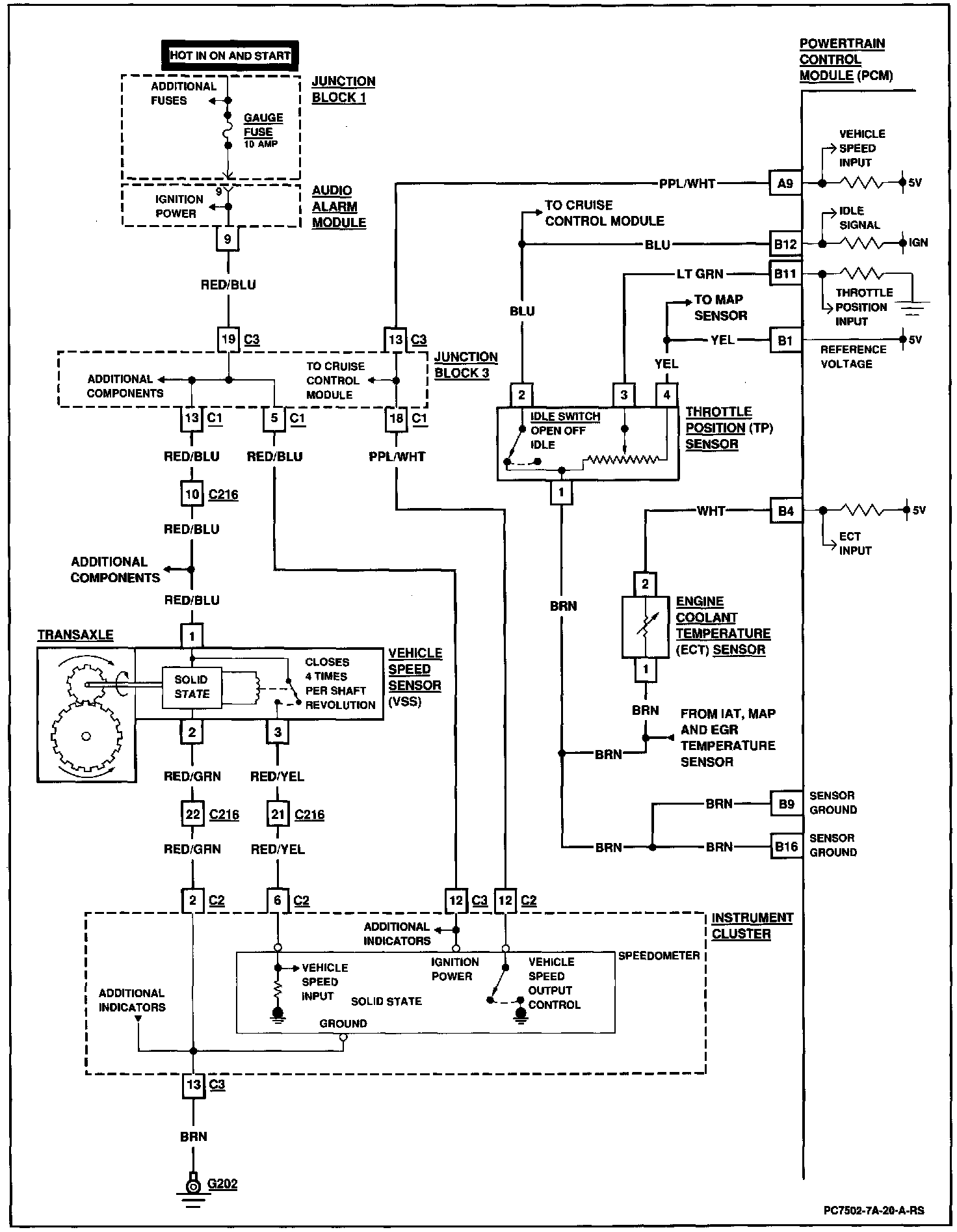

PCM Wiring Diagram - Part 2 Of 3:

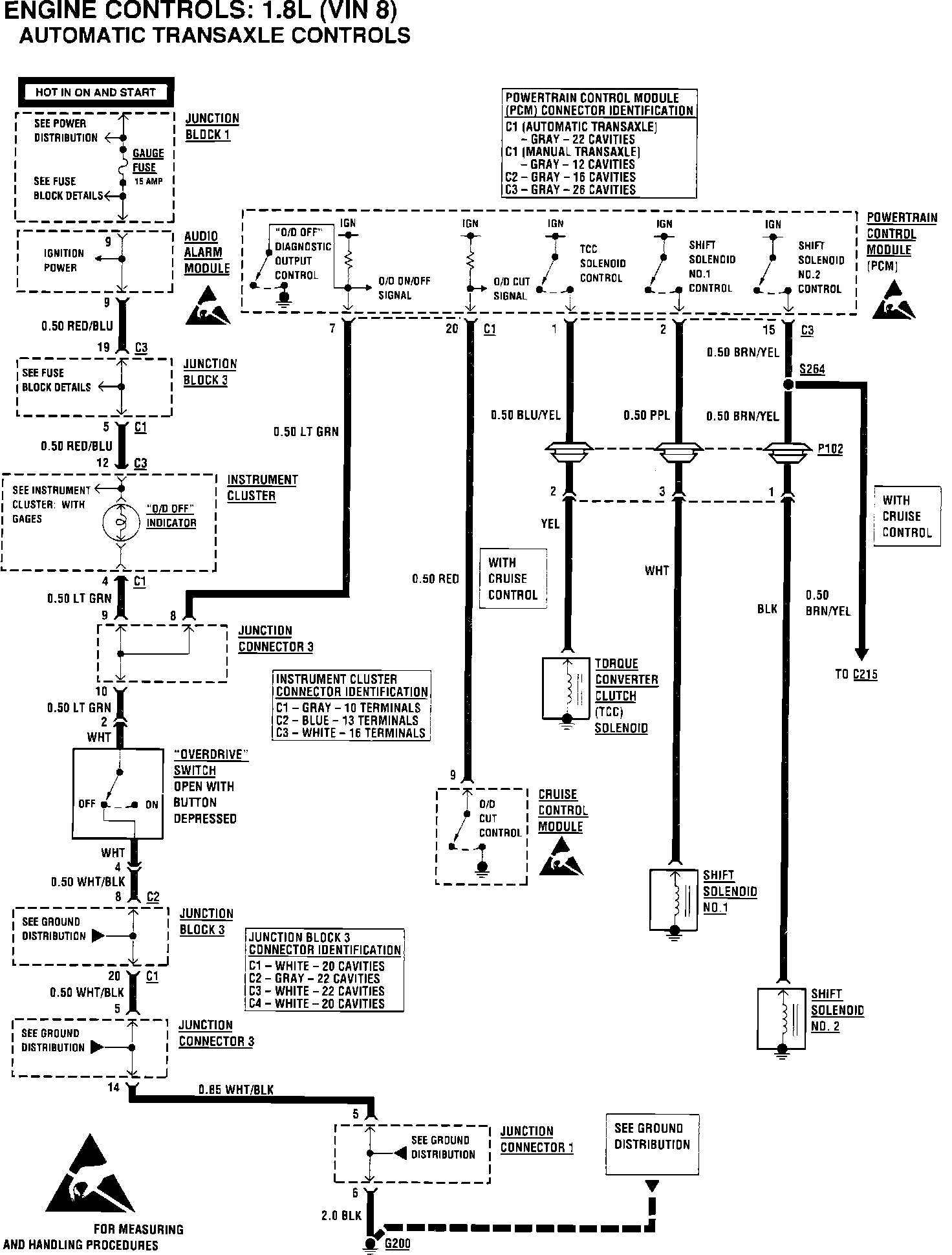

PCM Wiring Diagram - Part 3 Of 3:
