Home >> Geo >> 1994 >> Prizm L4-1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Components >> Sensors >> Vehicle Speed Sensor >> Automatic

Automatic

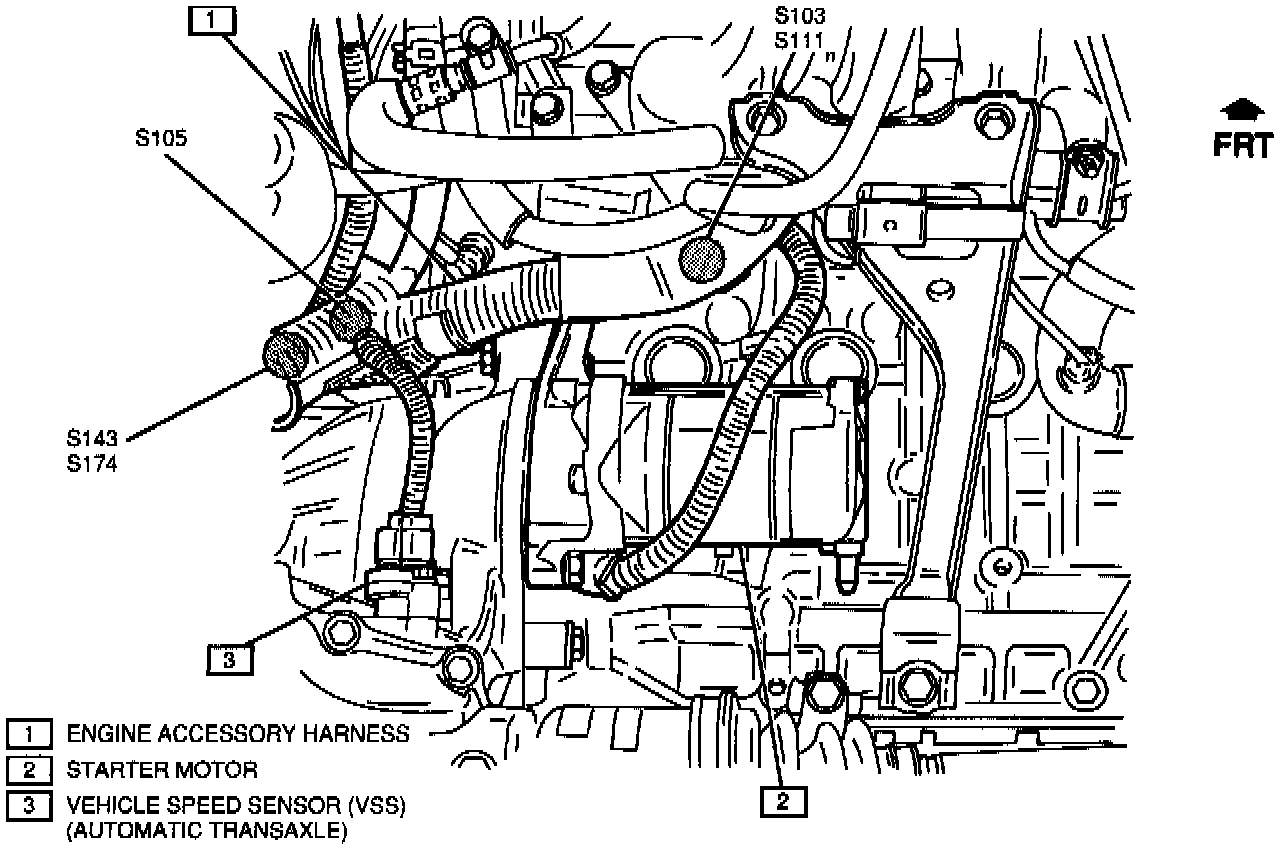

Figure B - LH Rear Of Engine:






The Vehicle Speed Sensor is located above the differential on the transaxle.
