Home >> Geo >> 1994 >> Prizm L4-1.6L DOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> System Operation Check

System Operation Check

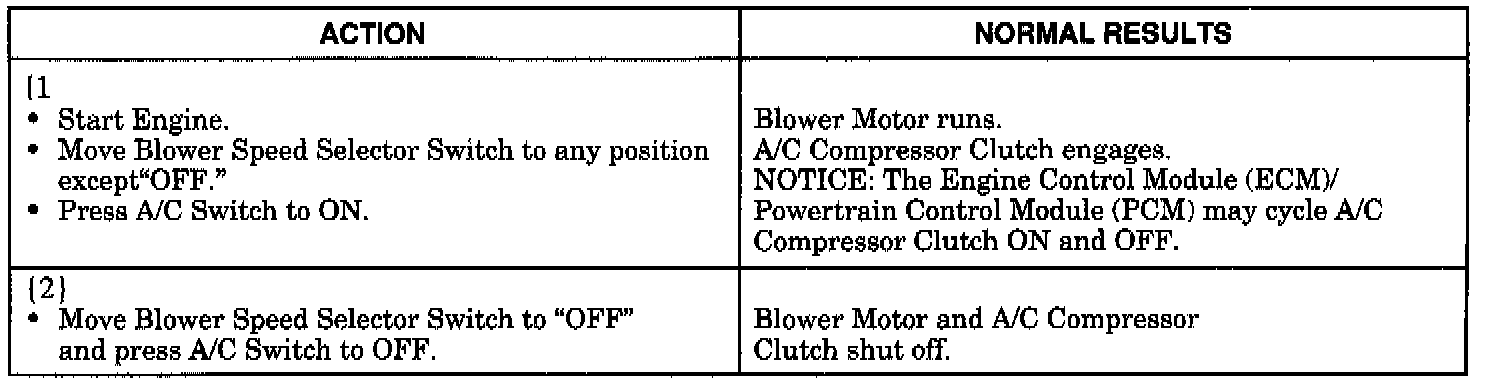

HVAC: Compressor Control - System Check:
