Home >> Geo >> 1994 >> Prizm L4-1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> C1

C1

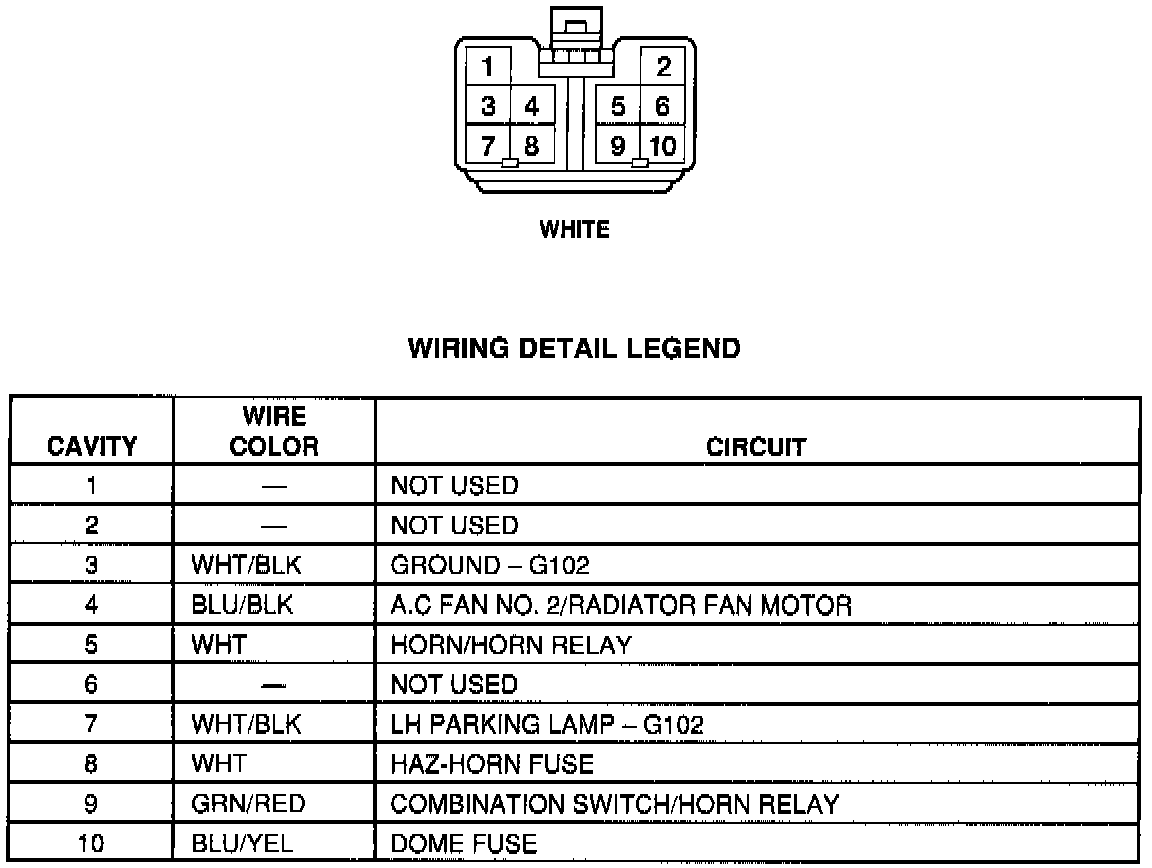

A1: Fuse And Relay Box - C1:
