Geo
>>
1994
>>
Prizm L4-1.6L DOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Locations
>>
Cruise Control Diode (Manual Trans)
Cruise Control Diode (Manual Trans)

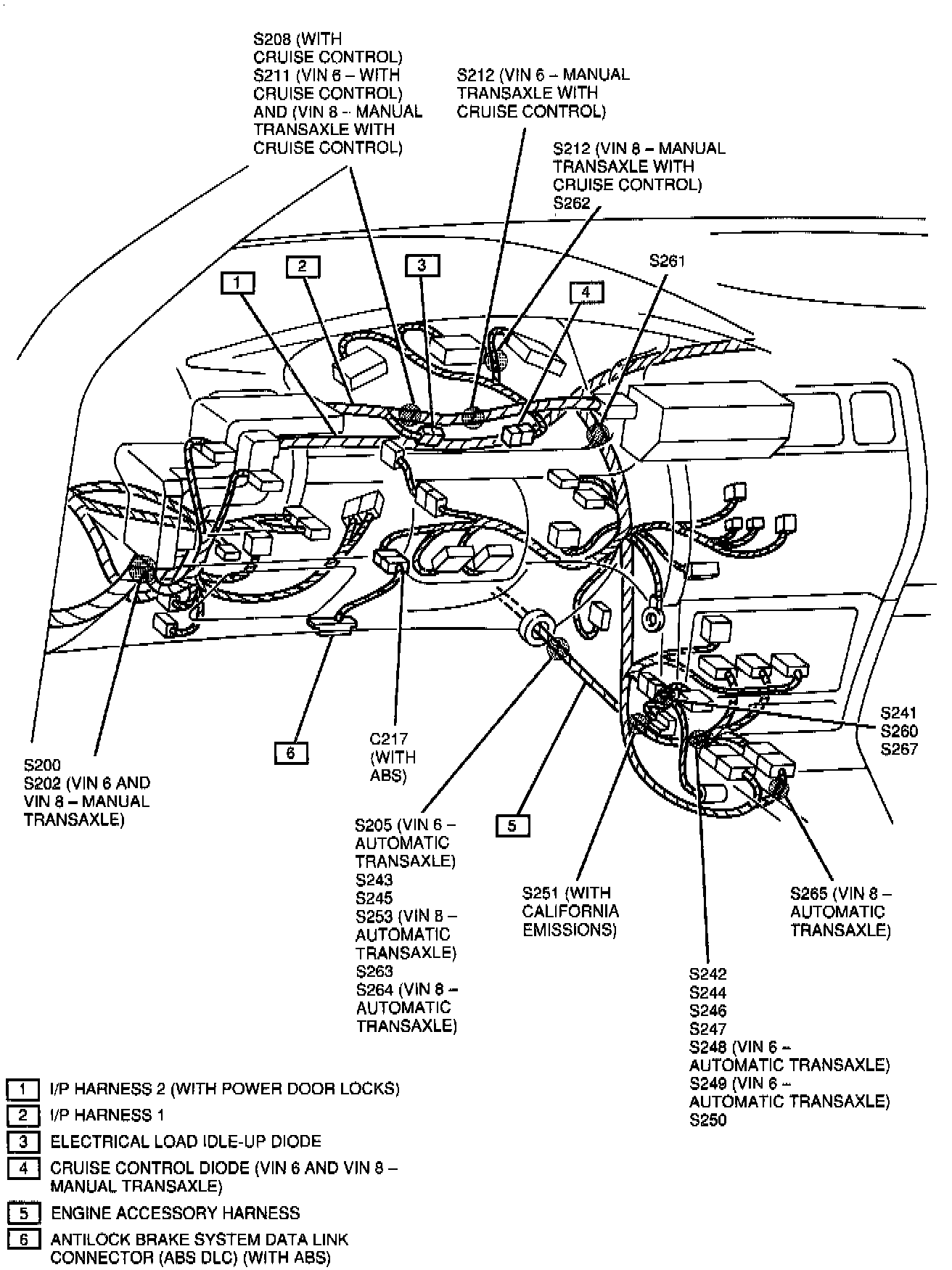

Figure A - LH Instrument Panel Wiring:
