Shifter A/T: Service and Repair

Fig. 6 Manual Selector Assembly.:

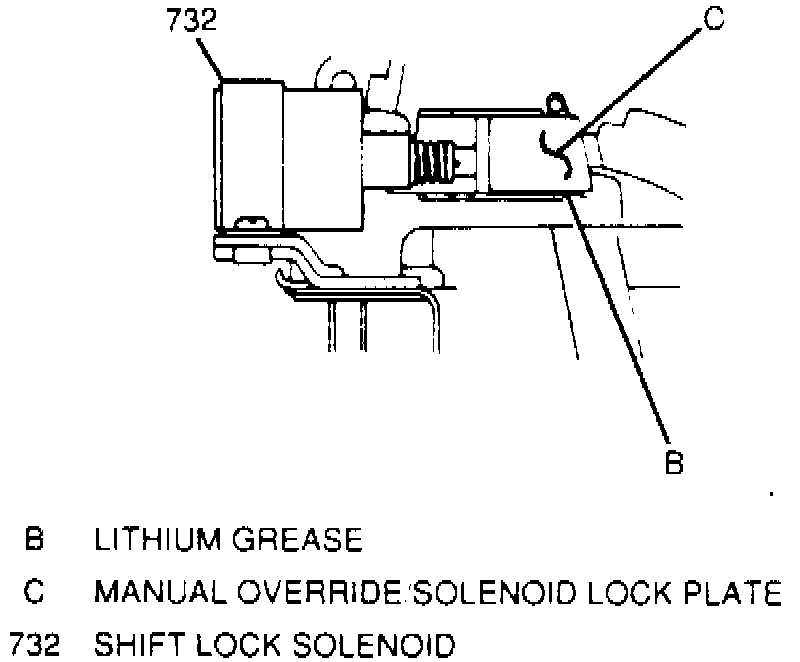

Fig. 7 Solenoid Lock Plate.:

REPLACE
1. Remove two selector knob to selector lever attaching screws, Fig. 6 .
2. Remove six center console attaching screws, then the center console.
3. Remove manual selector bulb socket from manual selector cover.
4. Remove four manual selector cover to selector lever attaching screws.
5. Remove retainer clip, clevis pin, then disconnect shift select cable from selector lever.
6. Disconnect interlock cable end from key release plate on manual selector.
7. Remove interlock cable to selector assembly attaching bolt, then disconnect cable from assembly.
8. Disconnect shift lock solenoid electrical connector located under the carpet.
9. Raise and support vehicle.
10. Remove four selector lever assembly housing seat retaining nuts.
11. Lower vehicle and remove selector lever housing and selector lever from floor.
12. Reverse procedure to install, noting the following:
a. Tighten four selector lever housing seat nuts to specification.
b. Refer to Interlock Cable, Replace to adjust interlock cable.
c. Refer to Shift Select Cable, Replace to adjust shift select cable. Shift Cable
d. Apply lithium grease under solenoid lock plate as shown Fig. 7
