Home >> Geo >> 1994 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Service and Repair >> Steering Column - Removal and Installation - Without SIR

Steering Column - Removal and Installation - Without SIR

Fig. 16 Steering Wheel Replacement:

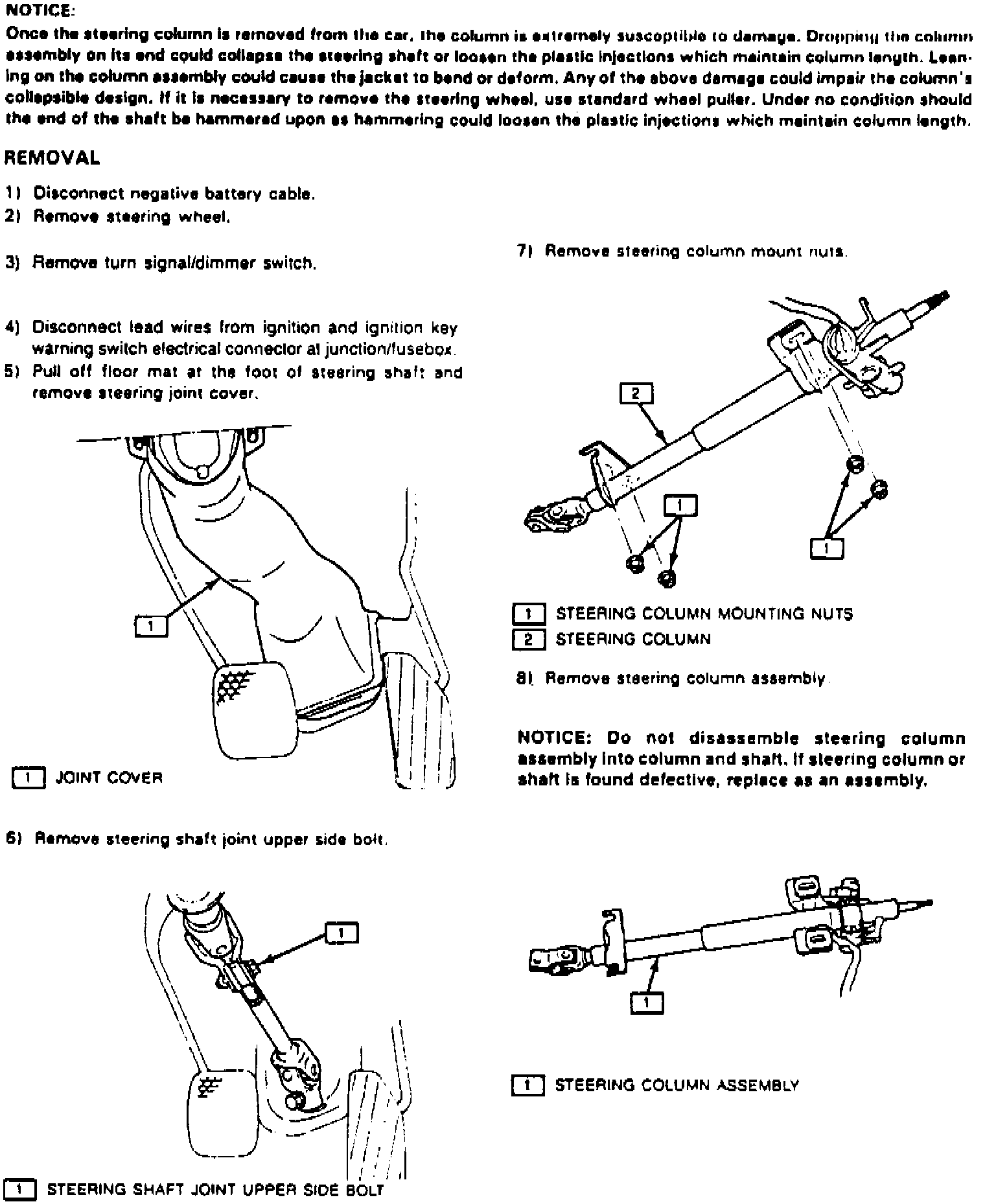

Fig. 17 Steering Column Removal:

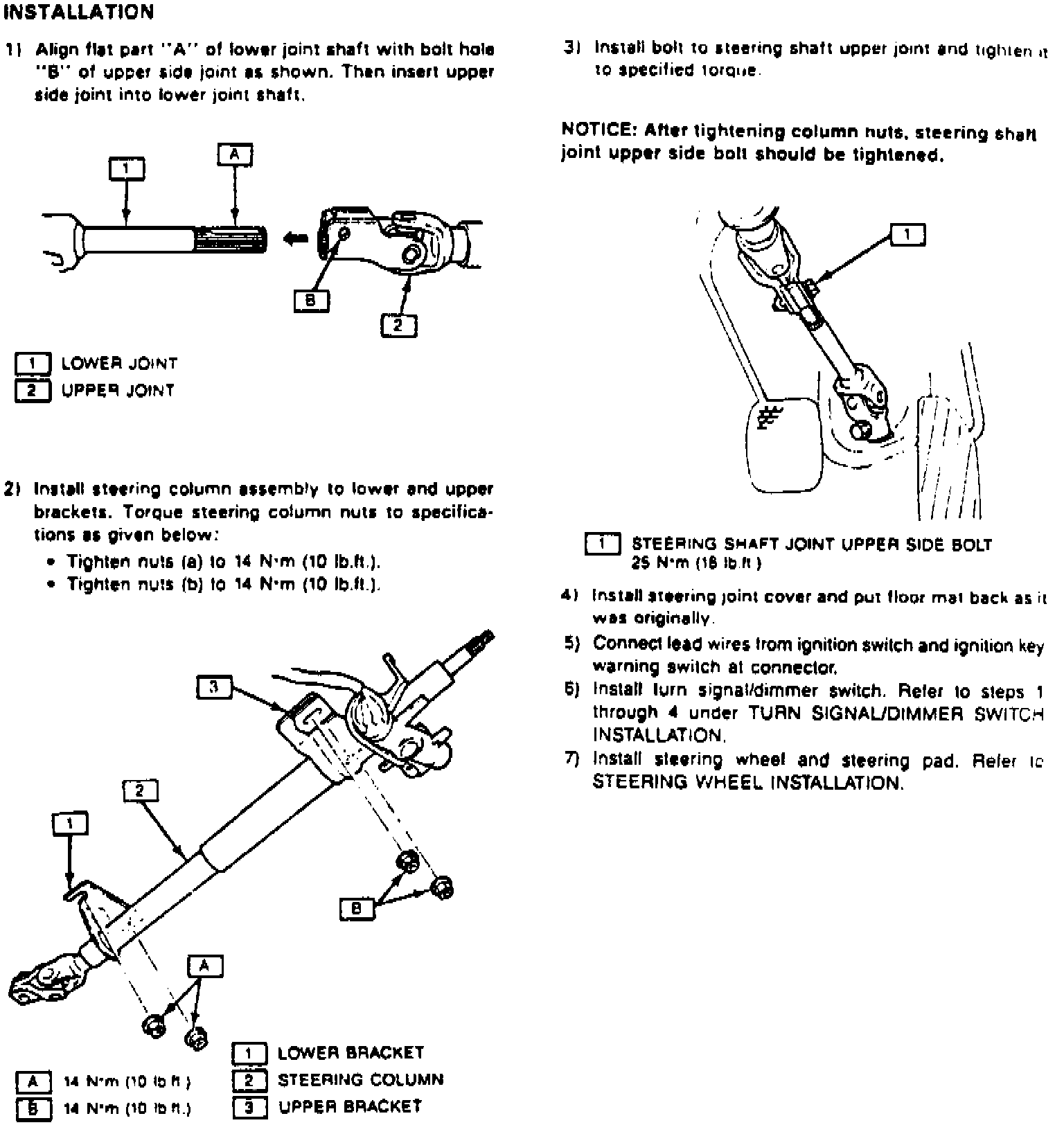

Fig. 18 Steering Column Installation:

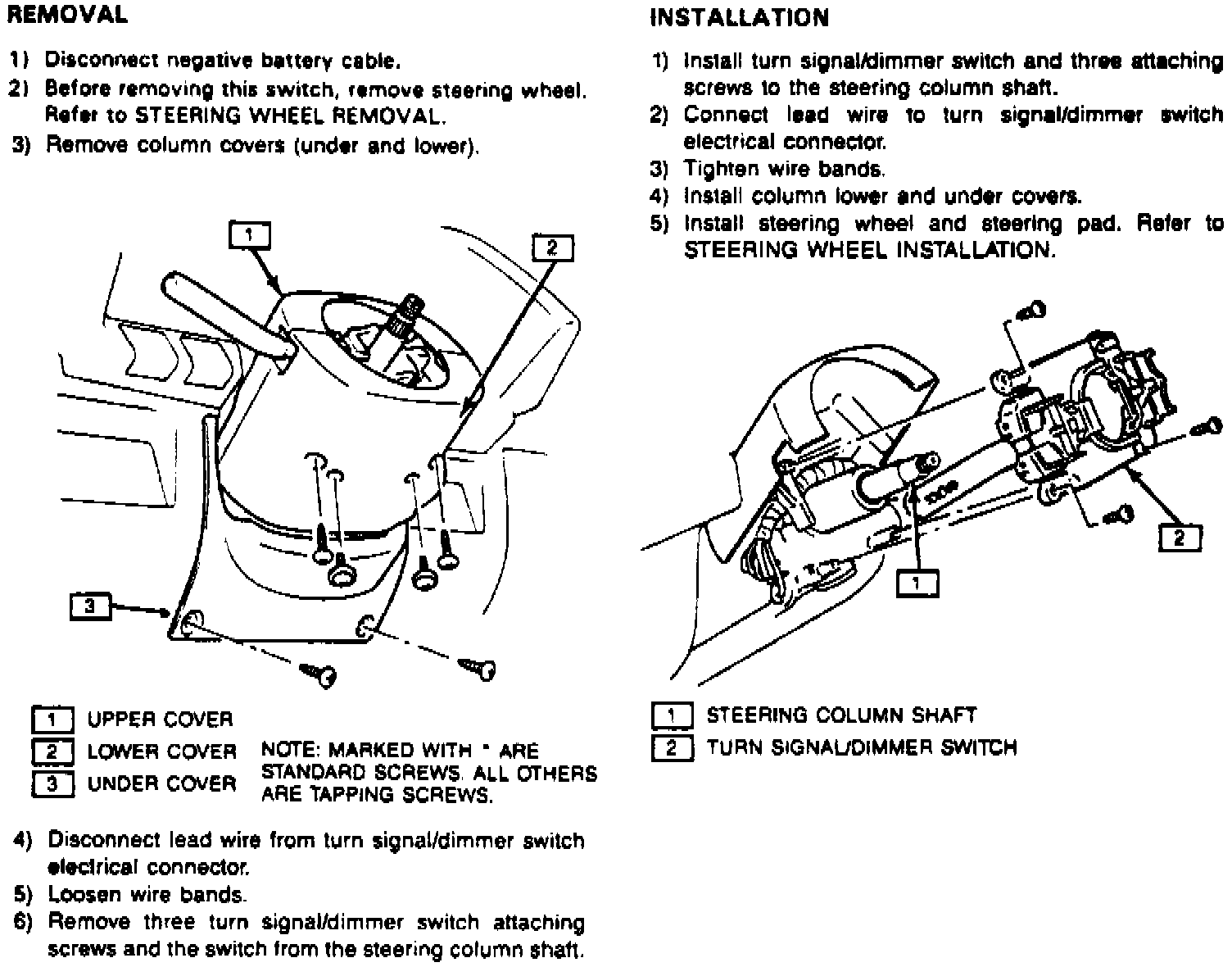

Fig. 19 Turn Signal/Dimmer Switch Replacement:
