Ignition Switch

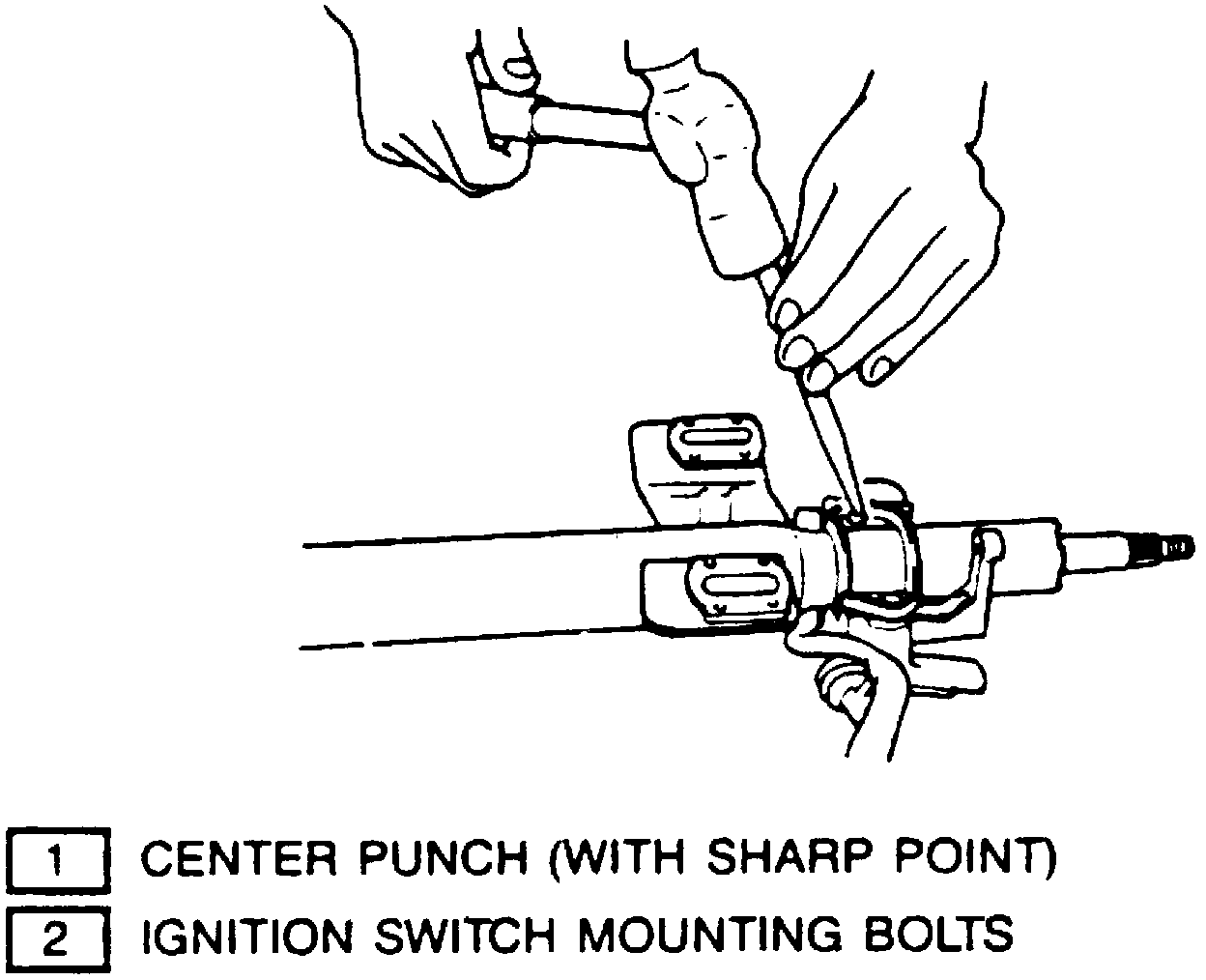

Fig. 1 Ignition Switch Removal:

WARNING:
On models equipped with Airbags, Refer to Air Bags (Supplemental Restraint Systems) Service and Repair Disarming procedures before performing any repair. Service and Repair

REMOVAL
1. Remove turn signal/dimmer switch. Refer to Lighting and Horns / Turn Signals / Turn Signal Switch. Service and Repair
2. Disconnect ignition switch and key warning electrical connectors.
3. Lift up floor mat at steering shaft and remove steering column coupling cover.
4. Remove upper steering shaft coupling bolt, then connect ignition switch and key warning electrical connectors.
5. Remove steering column attaching nuts, then remove column assembly.
6. Using a center punch, loosen and remove steering lock attaching bolts, Fig. 1 .
7. Place ignition switch in ACC or ON position and remove from steering column.

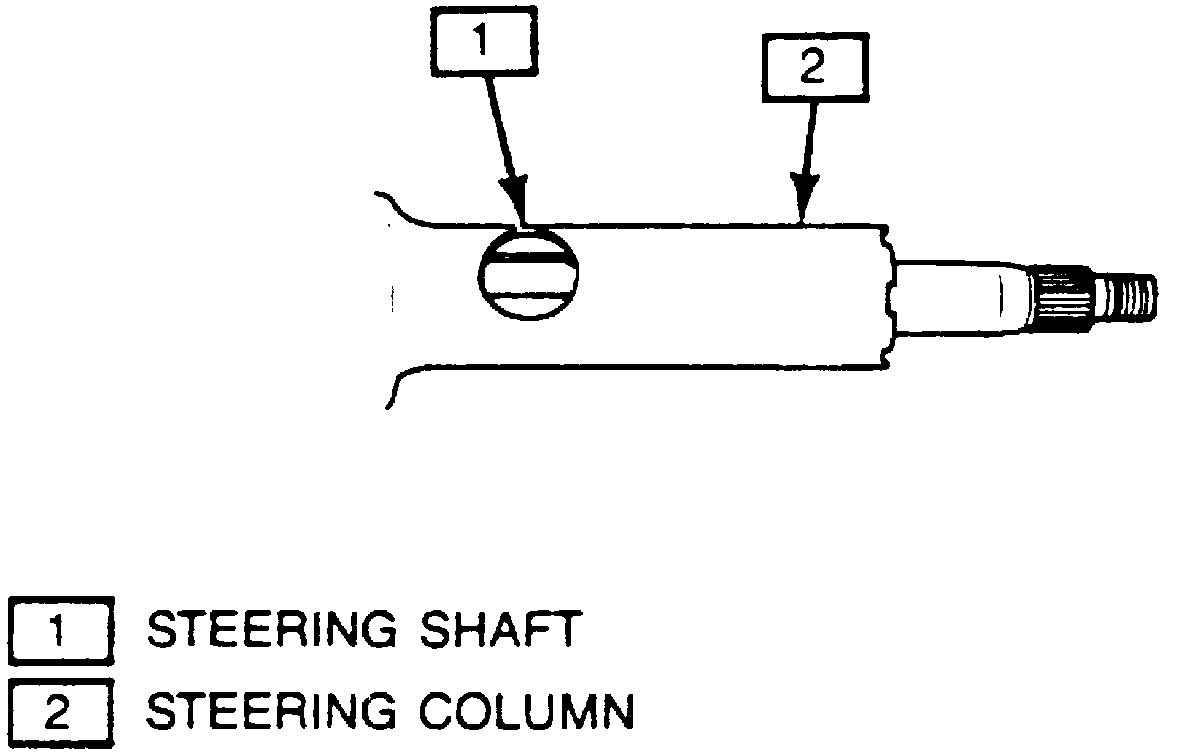

Fig. 2 Steering Shaft & Column Alignment:

Fig. 3 Ignition Switch Retaining Bolt Installation:

Fig. 4 Ignition Switch Hub To Steering Shaft Alignment.:

INSTALLATION
1. Position oblong hole on steering shaft at center of hole in steering column, Fig. 2 .
2. Place ignition switch in ACC or ON position.
3. Position ignition switch to steering column, then place switch in LOCK position.
4. Align ignition switch hub with oblong hole on steering shaft, then rotate steering shaft to ensure it locks.
5. Install replacement ignition switch attaching bolts. Tighten bolts until bolt head breaks off, Fig. 3 .
6. Place ignition switch in ON or ACC and check for smooth steering shaft rotation. Also check steering shaft lock for proper operation.
7. Align ignition switch hub to steering shaft oblong hole, rotate shaft to ensure steering shaft is locked, Fig. 4 .
8. Position steering column mounting brackets to mounting studs, then install and torque attaching nuts to 10 lb ft
9. Install steering shaft coupling bolt and torque to 18 lb ft
10. Install steering shaft coupling cover.
11. Install turn signal/dimmer switch.
