Brake Light Switch: Service and Repair

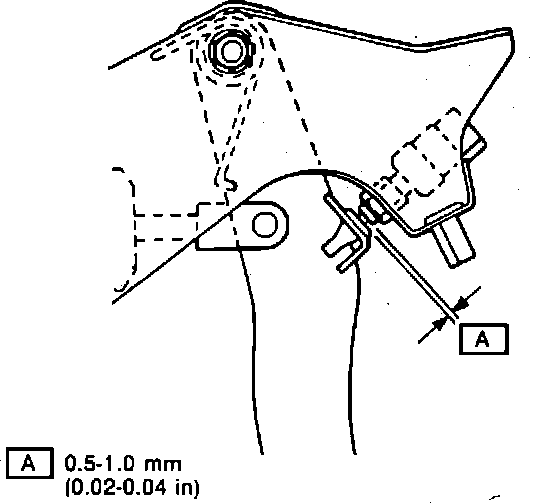

Fig. 6 Stoplamp Switch Adjustment:
Pull up brake pedal and adjust switch position so that clearance between end of thread and brake pedal contact plate A is 0.02-0.04 inch, Fig. 6. Tighten locknut.
Pull up brake pedal and adjust switch position so that clearance between end of thread and brake pedal contact plate A is 0.02-0.04 inch, Fig. 6. Tighten locknut.
