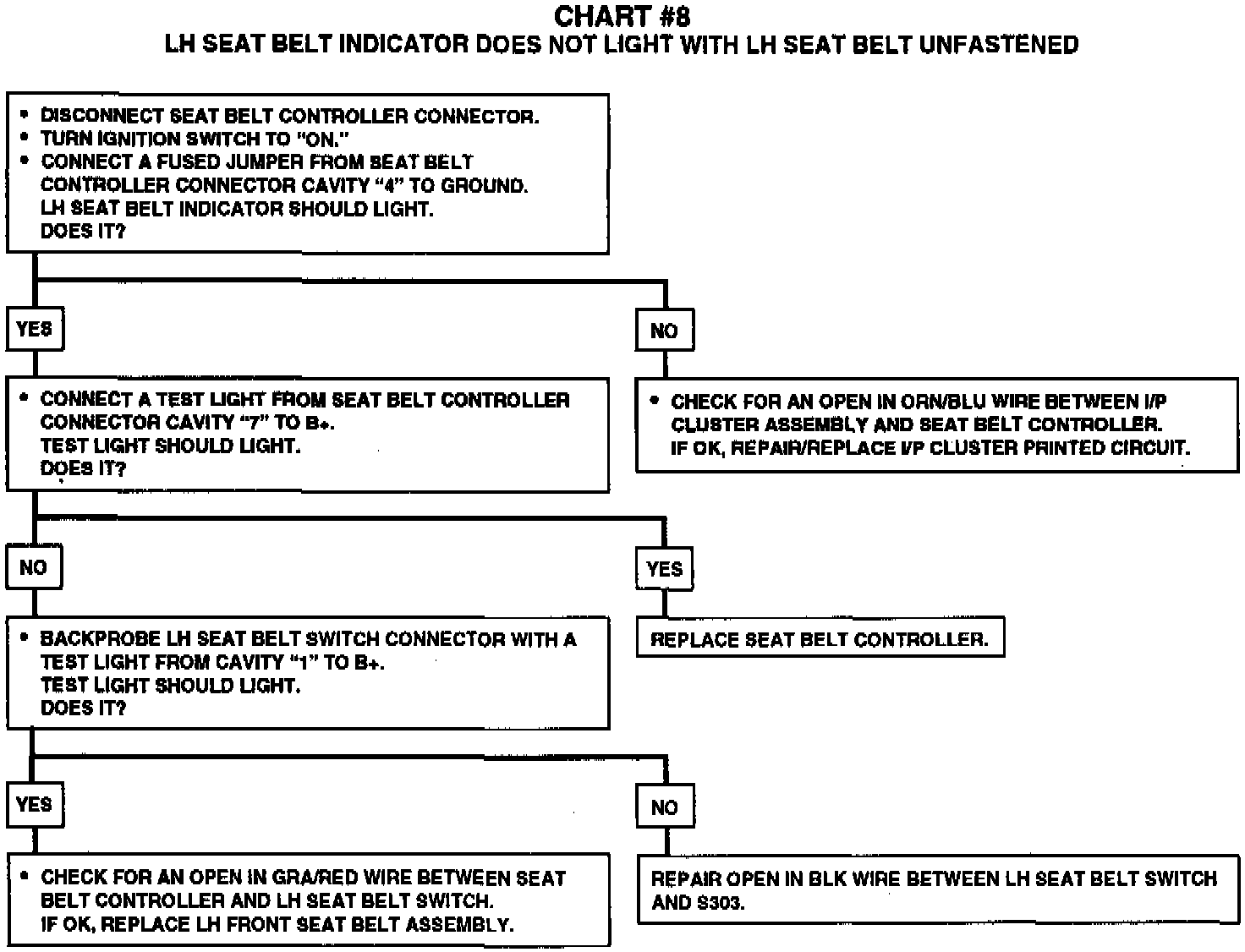

Chart 8 LH Belt Indicator Doesn't Light With LH Belt Unfastened
Chart 8 LH Belt Indicator Doesn't Light With LH Belt Unfastened
Diagnostic Chart:
