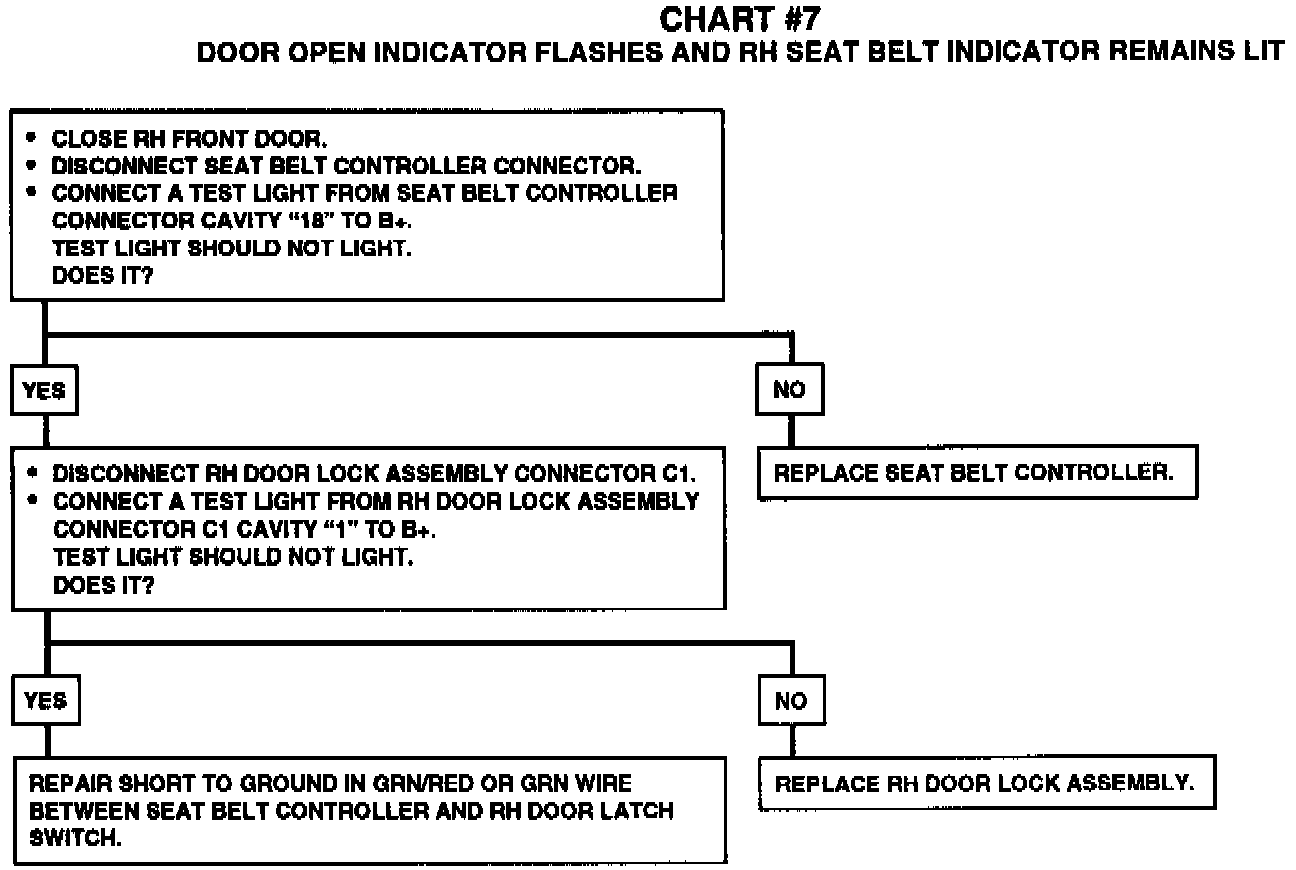

Chart 7 Door Open Indicator Flashes & RH Belt Indicator is Lit
Chart 7 Door Open Indicator Flashes & RH Belt Indicator is Lit
Diagnostic Chart:
