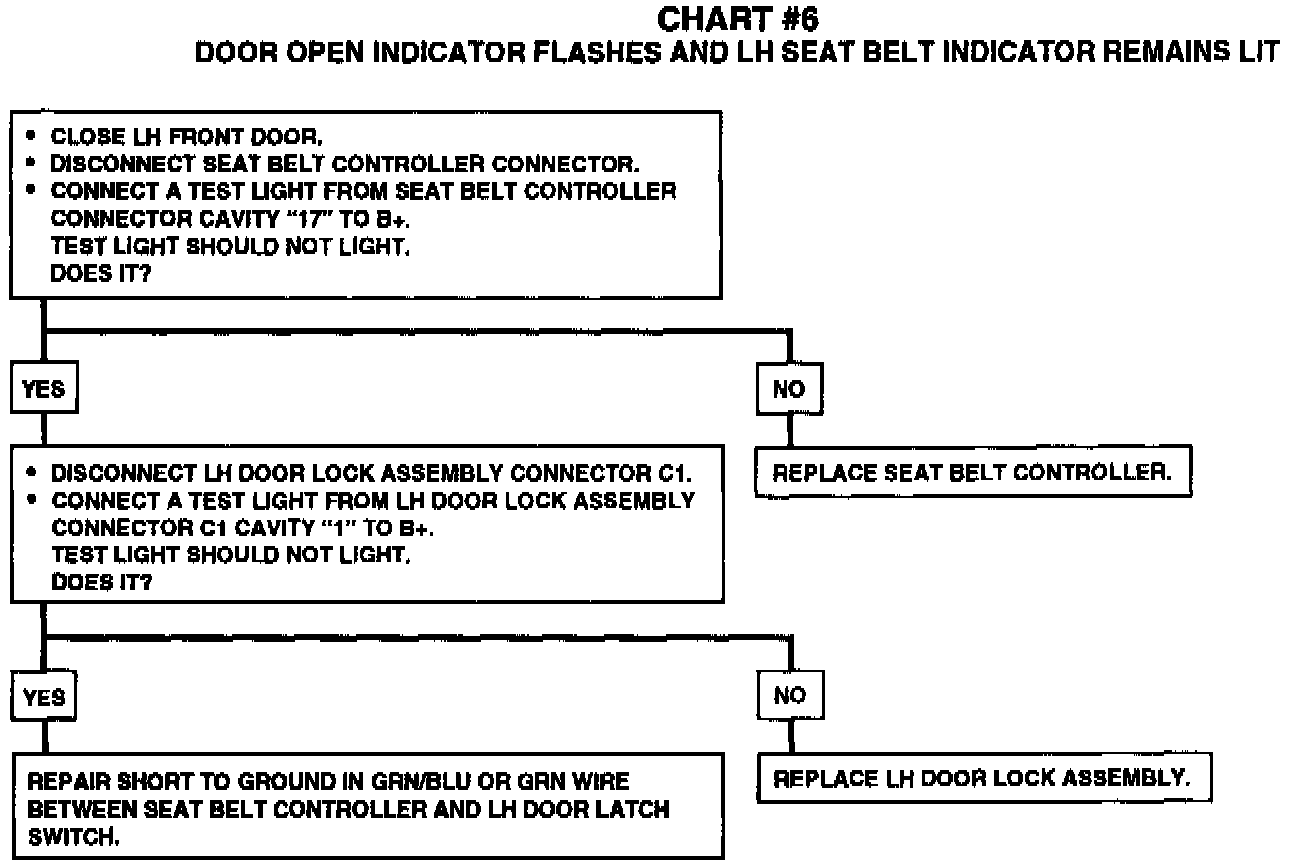

Chart 6 Door Open Indicator Flashes & LH Belt Indicator is Lit
Chart 6 Door Open Indicator Flashes & LH Belt Indicator is Lit
Diagnostic Chart:
