FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Geo
>>
1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Charts
>>

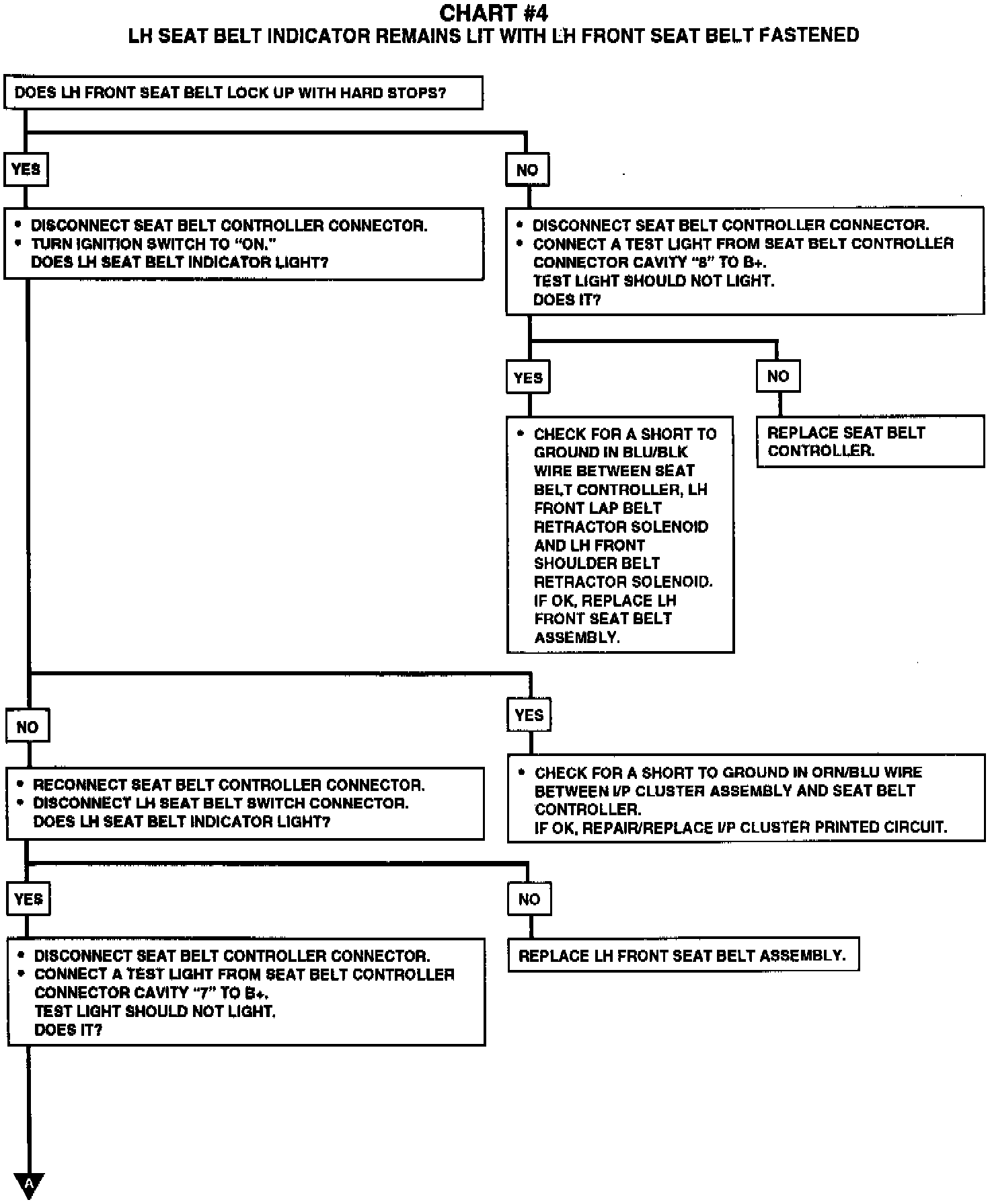

Chart 4 LH Belt Indicator Remains Lit With LH Belt Fastened
Chart 4 LH Belt Indicator Remains Lit With LH Belt Fastened
Diagnostic Chart - Part 1 Of 2:
Diagnostic Chart - Part 2 Of 2:
