Geo
>>
1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Charts
>>

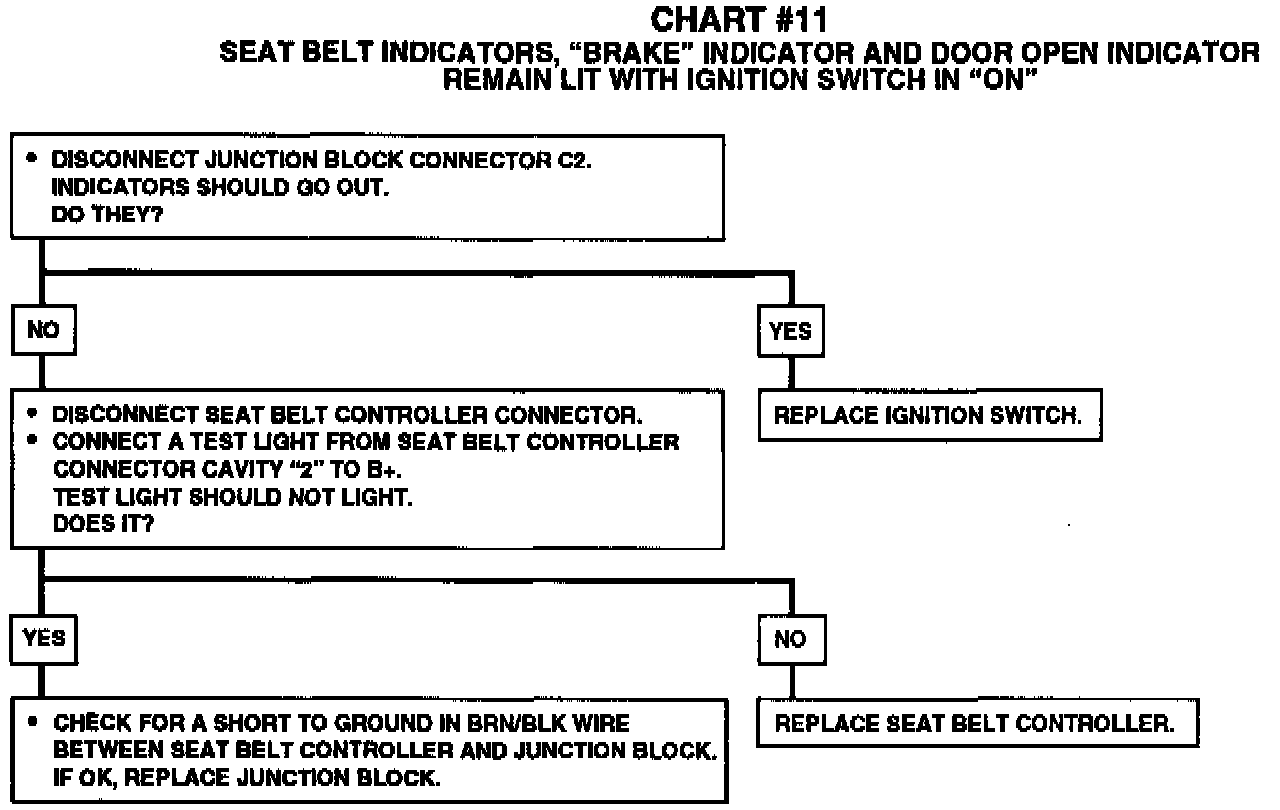

Chart 11 Belt Indicator Remains Lit With IG Switch In "On"
Chart 11 Belt Indicator Remains Lit With IG Switch In "On"
Diagnostic Chart:
