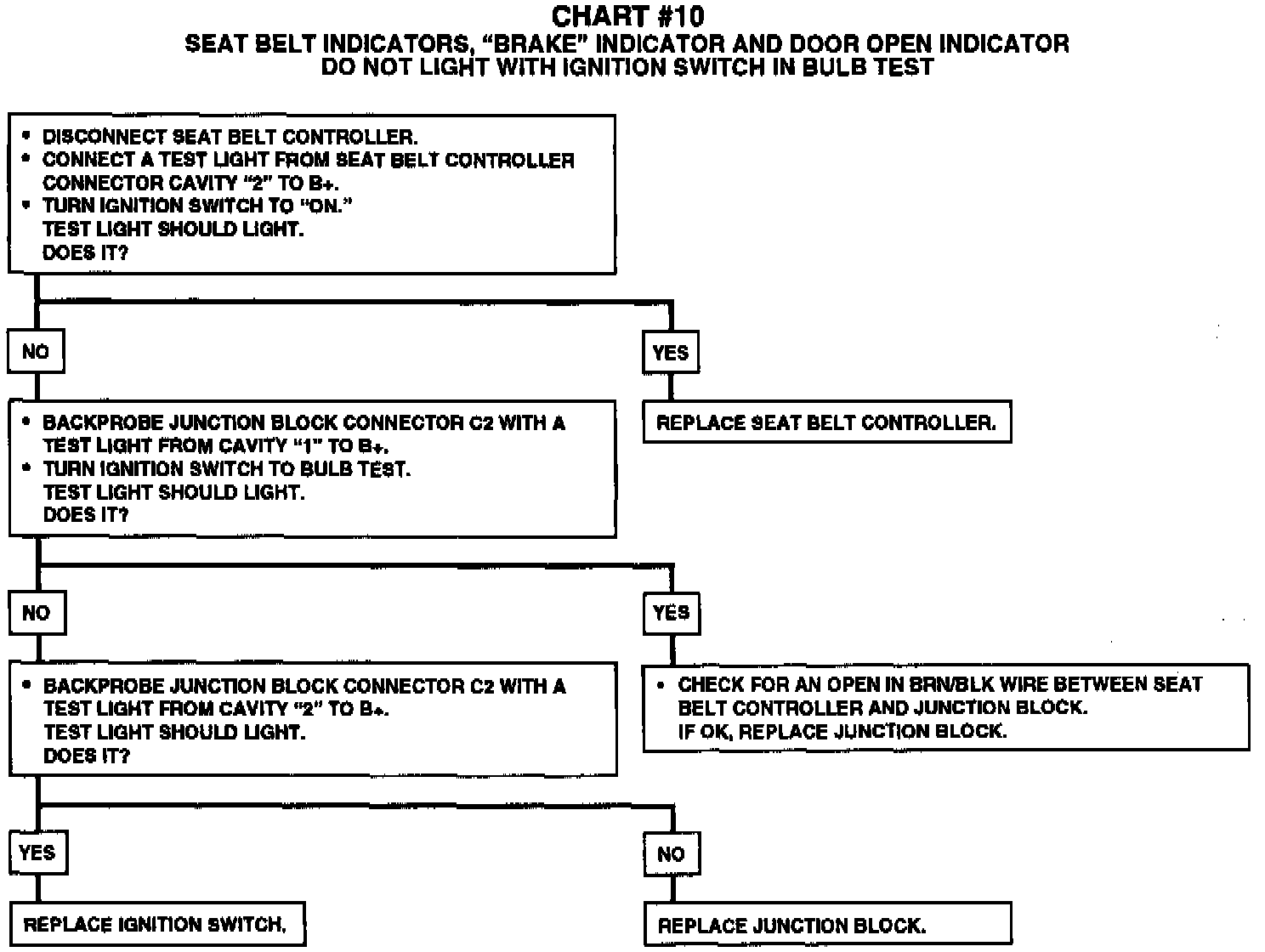

Chart 10 Belt Indicator Doesn't Lite With Switch In Bulb Test
Chart 10 Belt Indicator Doesn't Lite With Switch In Bulb Test
Diagnostic Chart:
