Electronic Brake Control Module: Diagrams

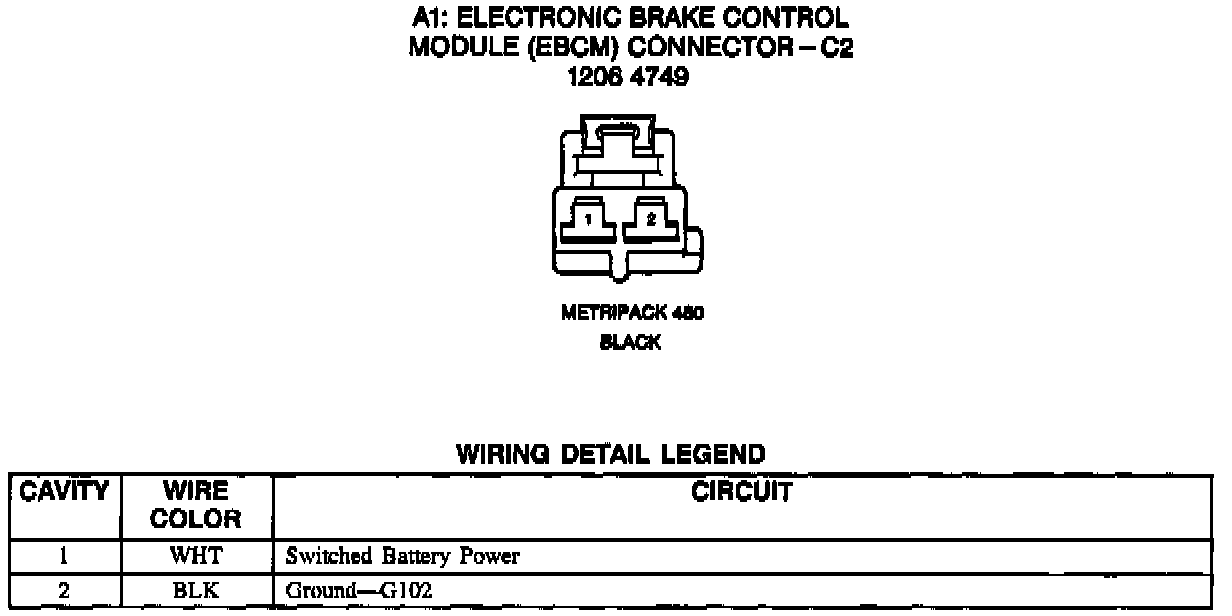

Fig. 44 EBCM Connector Face Views (Part 1 Of 2).:

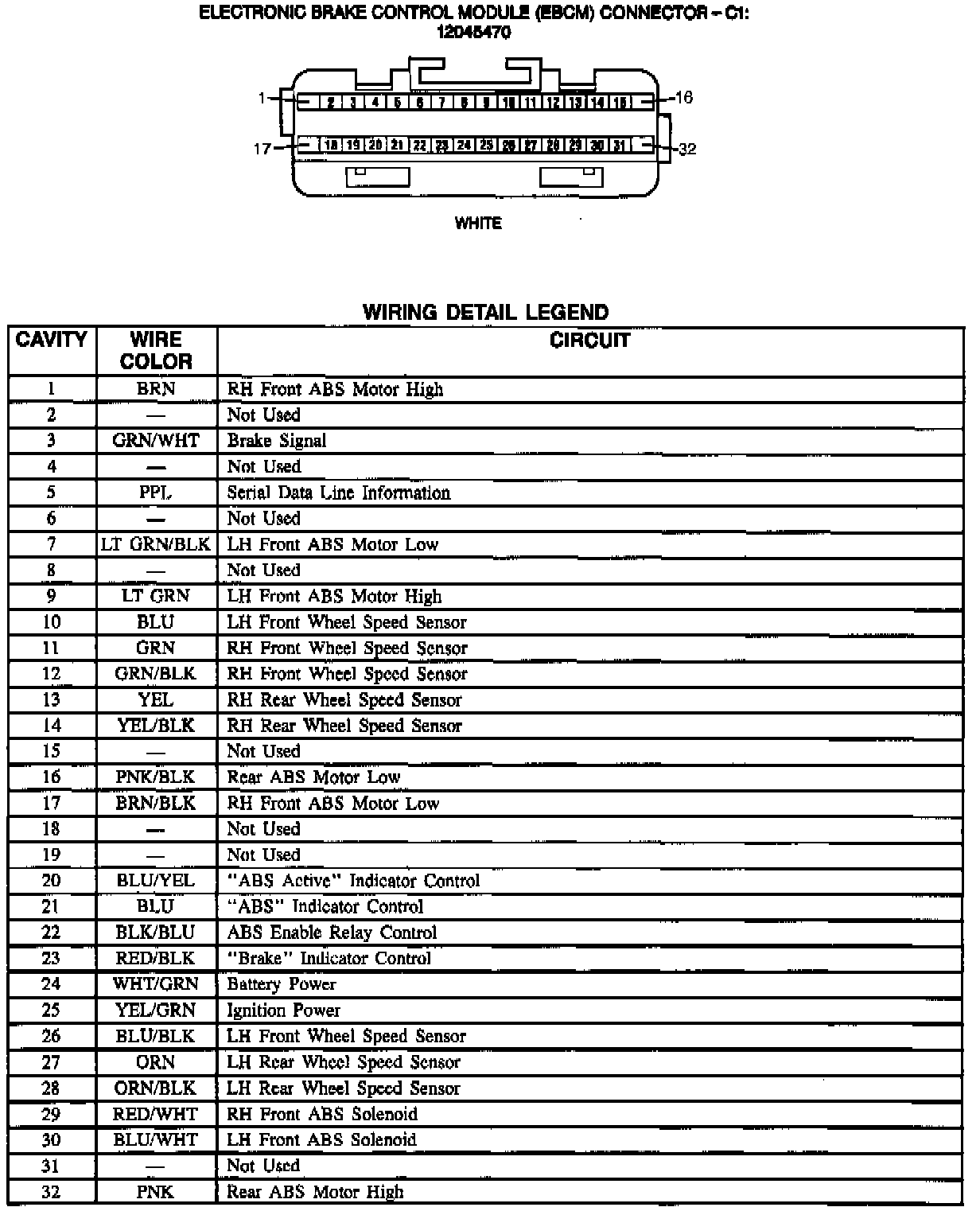

Fig. 44 EBCM Connector Face Views (Part 2 Of 2).:

When performing diagnostic procedures refer to Fig. 44 for EBCM connector terminal identification.
