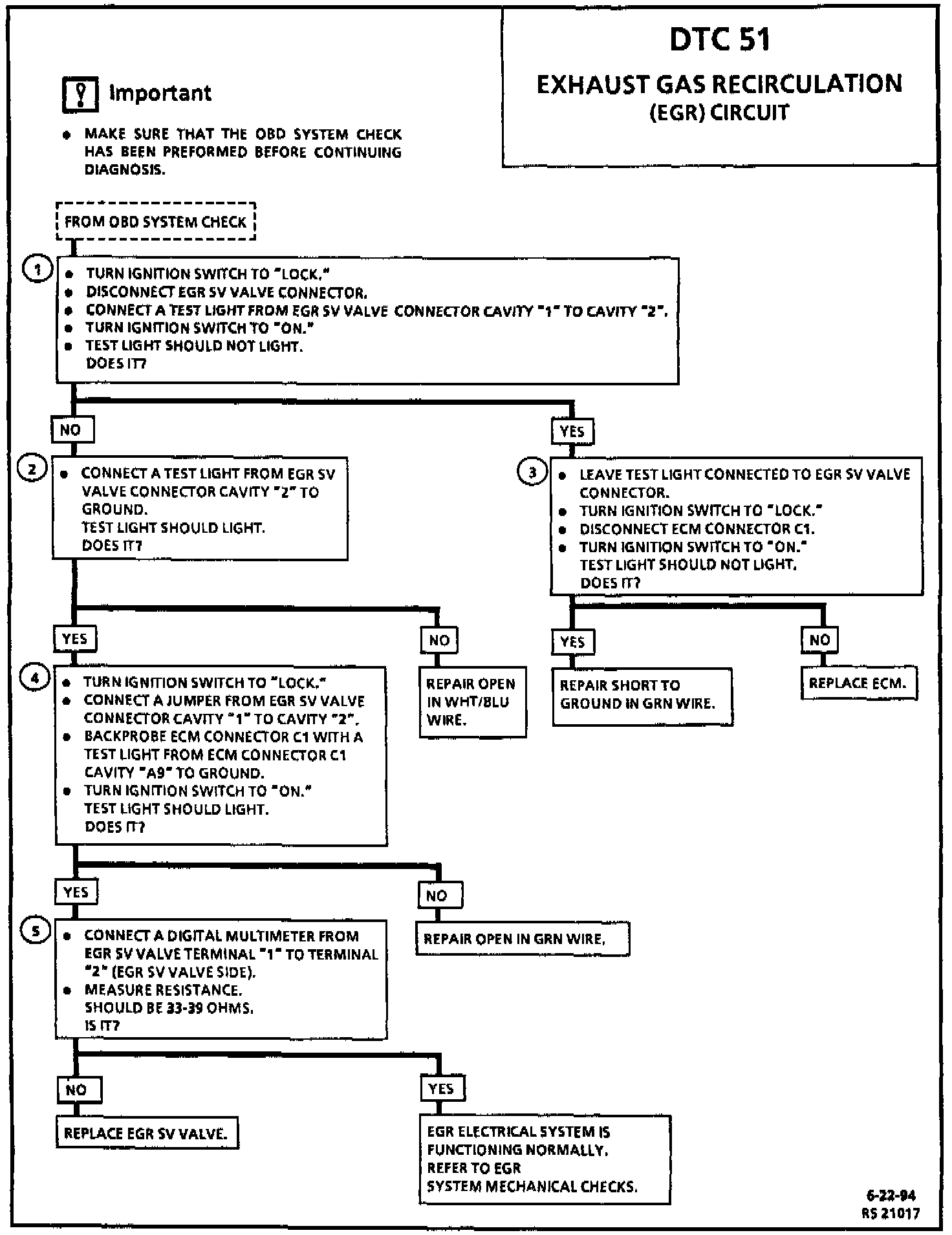

DTC 51 (Exhaust Gas Recirculation) Chart Revised
Group Ref.: 6E - Engine Fuel & EmissionBulletin No.: 416520
Date: August, 1994
SUBJECT:
SECTION 6E2 (UPGRADE) - REVISED DTC 51 EXHAUST GAS RECIRCULATION (EGR) CIRCUIT
MODEL:
1994 GEO METRO WITH 1.OL ENGINE (VIN 6 - RPO LP2)
This bulletin updates the diagnostic chart DTC 51 in the service manual, Section 6E2 (Upgrade). The replacement page supersedes the diagnostic chart originally published in the service manual.
