DTC 46 (Idle Speed Control Motor Circuit) Revised
Group Ref.: 6E - Engine Fuel & EmissionBulletin No.: 416517
Date: August, 1994
SUBJECT:
SECTION 6E2 (UPGRADE) - REVISED DTC 46 IDLE SPEED CONTROL (ISC) MOTOR CIRCUIT
MODEL:
1994 GEO METRO WITH 1.0L ENGINE (VIN 6 - RPO LP2)

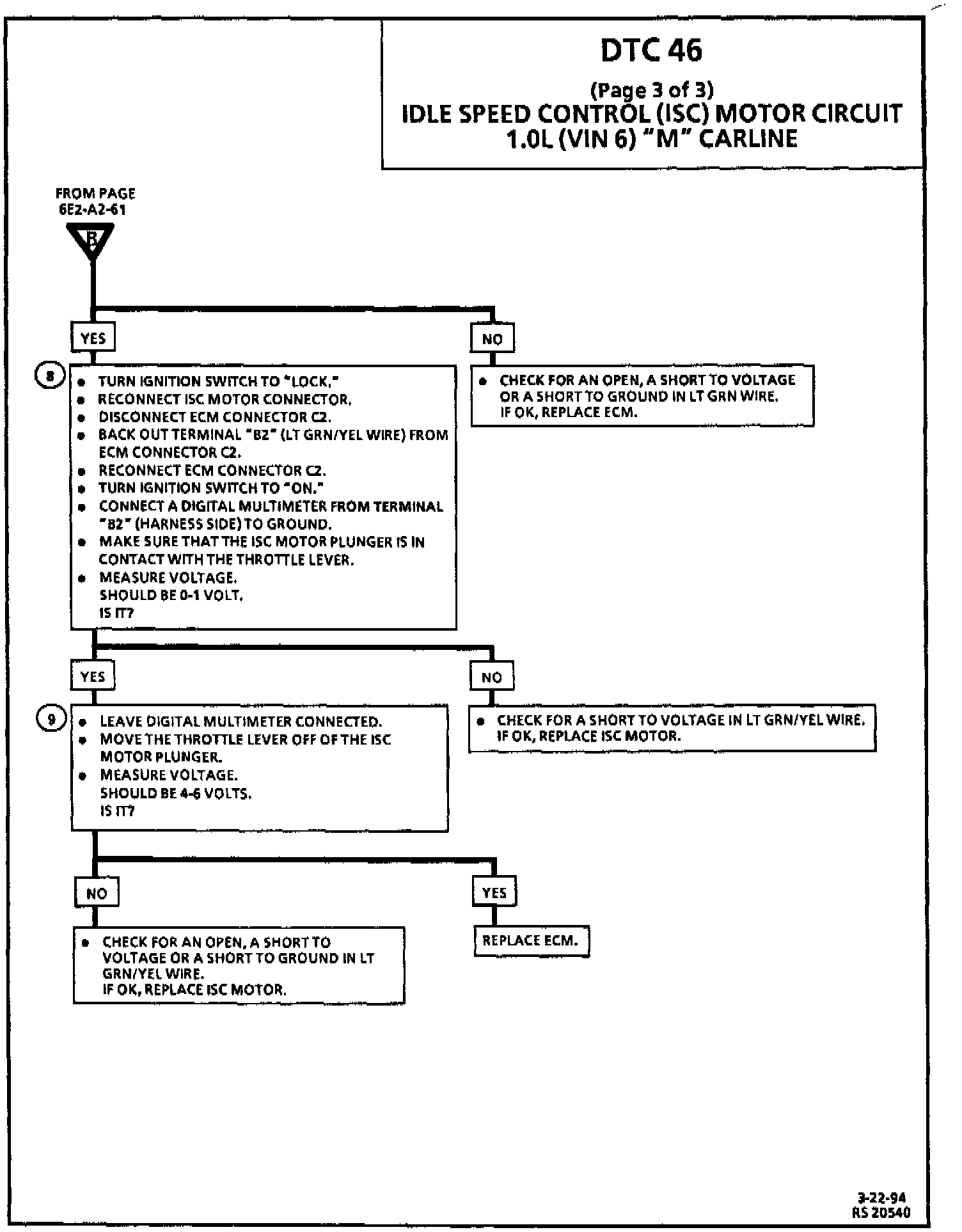

This bulletin updates the diagnostic chart DTC 46 (Page 3 of 3) in the Service Manual, Section 6E2 (Upgrade). The replacement page supersedes the diagnostic chart originally published in the service manual.
