1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Tachometer
>>
Testing and Inspection
Tachometer: Testing and Inspection

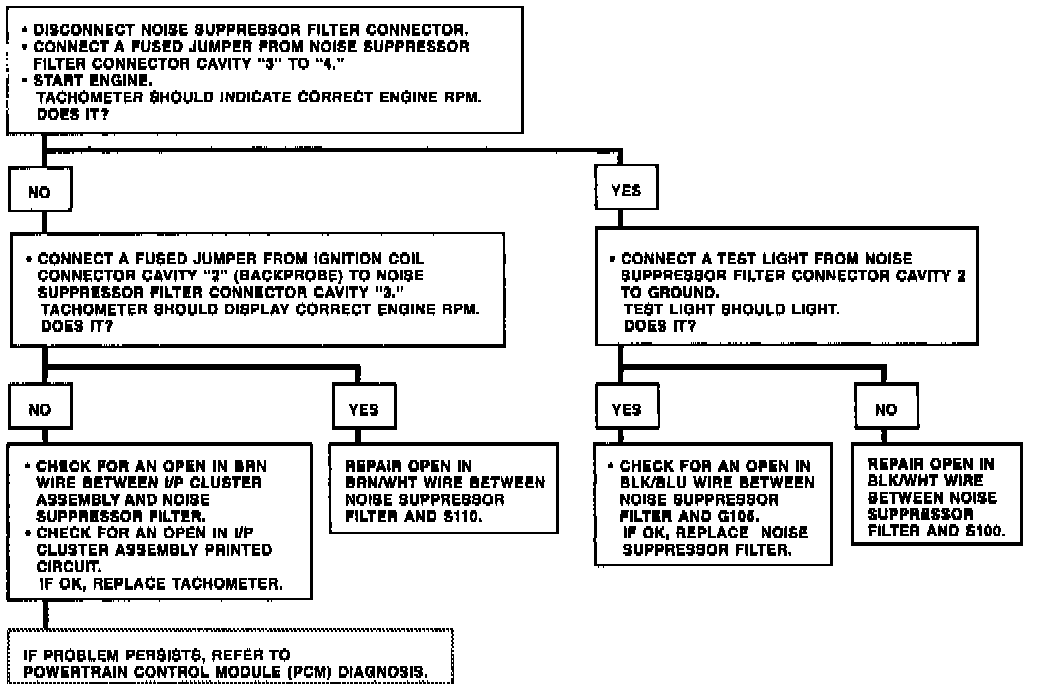

Fig. 140 Chart 7: Tachometer Does Not Indicate Correct RPM:
